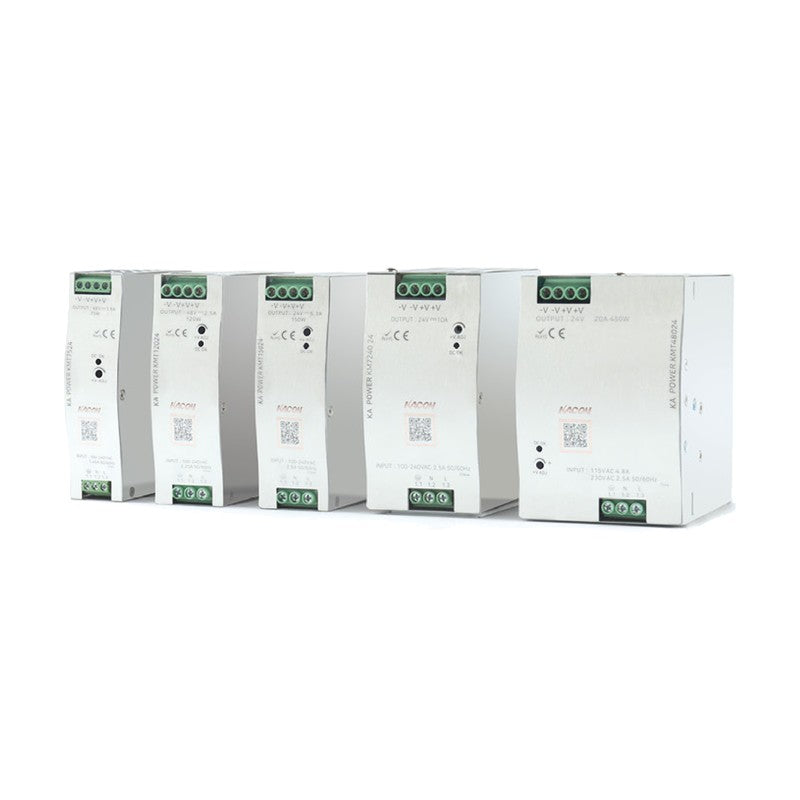

KACON KMT Series DIN-rail Steel Case SMPS 75-480W
KACON KMT Series DIN-rail Steel Case SMPS 75-480W
DIN-rail switching power supplies in a slim metal enclosure from 75W to 480W with 12, 24 or 48VDC output for industrial control cabinets.
Key features
- Output models from 75W to 480W, 12-48VDC
- Slim metal enclosure with easy DIN-rail mounting
- Overload, overvoltage and overtemperature protection with automatic reset
- Cooling by natural convection
- Wide AC input range and high efficiency
- DC output indicator LED
Specifications
| Input voltage | 96-264VAC 50/60Hz; 120-370VDC |
|---|---|
| Surge current | 20A (115VAC) / 35A (230VAC) |
| Overload protection | Yes, automatic reset (480W: shuts down after 3 s, reset) |
| Overvoltage protection | Yes, automatic reset |
| Overtemperature protection | Yes, automatic reset |
| Safety standards | IEC/EN 60950-1, GB 4943.1 |
| EMC standards | EN 55022 (CISPR 22) Class A, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-6-1 |
| Dielectric strength | Input-output 3kVAC / input-ground 2kVAC / output-ground 0.5kVAC |
| Ambient temperature | -25 to 60°C (75-150W), -25 to 70°C (240-480W) |
| Housing | Steel case |
| Mounting | DIN rail (bracket included) |
| KMT7512 | Output power: 75W | Output voltage: 12VDC | Output current: 6.3A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 83% | Input current: 1.45A (115VAC) / 0.9A (230VAC) | Weight: approx. 0.55 kg | Dimensions (W x H x D): 32 x 125 x 102 mm | |
| KMT7524 | Output power: 75W | Output voltage: 24VDC | Output current: 3.2A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 1.45A (115VAC) / 0.9A (230VAC) | Weight: approx. 0.55 kg | Dimensions (W x H x D): 32 x 125 x 102 mm | |
| KMT7548 | Output power: 75W | Output voltage: 48VDC | Output current: 1.6A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 87% | Input current: 1.45A (115VAC) / 0.9A (230VAC) | Weight: approx. 0.55 kg | Dimensions (W x H x D): 32 x 125 x 102 mm | |
| KMT12012 | Output power: 120W | Output voltage: 12VDC | Output current: 10A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 84% | Input current: 2.25A (115VAC) / 1.3A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | |
| KMT12024 | Output power: 120W | Output voltage: 24VDC | Output current: 5A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 87% | Input current: 2.25A (115VAC) / 1.3A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | |
| KMT12048 | Output power: 120W | Output voltage: 48VDC | Output current: 2.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 2.25A (115VAC) / 1.3A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | |
| KMT15024 | Output power: 150W | Output voltage: 24VDC | Output current: 6.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input current: 2.6A (115VAC) / 1.7A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | |
| KMT15048 | Output power: 150W | Output voltage: 48VDC | Output current: 3.2A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 2.6A (115VAC) / 1.7A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | |
| KMT24012 | Output power: 240W | Output voltage: 12VDC | Output current: 20A | Voltage tolerance: ±2% | Ripple & noise: 120mV | Efficiency (typ.): 85% | Input current: 2.5A (115VAC) / 1.3A (230VAC) | Weight: approx. 1.08 kg | Dimensions (W x H x D): 63 x 125 x 114.5 mm | |
| KMT24024 | Output power: 240W | Output voltage: 24VDC | Output current: 10A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input current: 2.5A (115VAC) / 1.3A (230VAC) | Weight: approx. 1.08 kg | Dimensions (W x H x D): 63 x 125 x 114.5 mm | |
| KMT24048 | Output power: 240W | Output voltage: 48VDC | Output current: 5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 89% | Input current: 2.5A (115VAC) / 1.3A (230VAC) | Weight: approx. 1.08 kg | Dimensions (W x H x D): 63 x 125 x 114.5 mm | |
| KMT48024 | Output power: 480W | Output voltage: 24VDC | Output current: 20A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90% | Input current: 4.8A (115VAC) / 2.4A (230VAC) | Weight: approx. 1.9 kg | Dimensions (W x H x D): 85.5 x 125 x 129 mm | |
| KMT48048 | Output power: 480W | Output voltage: 48VDC | Output current: 10A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90% | Input current: 4.8A (115VAC) / 2.4A (230VAC) | Weight: approx. 1.9 kg | Dimensions (W x H x D): 85.5 x 125 x 129 mm |
SMPSKACON
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KMT Series DIN-rail Steel Case SMPS 75-480W
Available part numbers (13)
KMT7512, KMT7524, KMT7548, KMT12012, KMT12024, KMT12048, KMT15024, KMT15048, KMT24012, KMT24024 + 3 more — see full table ↓
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
SMPS
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KMT7512 | Output power: 75W | Output voltage: 12VDC | Output current: 6.3A | Voltage tolerance: ±2% | Ripple & noise: 80mV | Efficiency (typ.): 83% | Input current: 1.45A (115VAC) / 0.9A (230VAC) | Weight: approx. 0.55 kg | Dimensions (W x H x D): 32 x 125 x 102 mm | ||
| KMT7524 | Output power: 75W | Output voltage: 24VDC | Output current: 3.2A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 86% | Input current: 1.45A (115VAC) / 0.9A (230VAC) | Weight: approx. 0.55 kg | Dimensions (W x H x D): 32 x 125 x 102 mm | ||
| KMT7548 | Output power: 75W | Output voltage: 48VDC | Output current: 1.6A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 87% | Input current: 1.45A (115VAC) / 0.9A (230VAC) | Weight: approx. 0.55 kg | Dimensions (W x H x D): 32 x 125 x 102 mm | ||
| KMT12012 | Output power: 120W | Output voltage: 12VDC | Output current: 10A | Voltage tolerance: ±2% | Ripple & noise: 100mV | Efficiency (typ.): 84% | Input current: 2.25A (115VAC) / 1.3A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | ||
| KMT12024 | Output power: 120W | Output voltage: 24VDC | Output current: 5A | Voltage tolerance: ±1% | Ripple & noise: 120mV | Efficiency (typ.): 87% | Input current: 2.25A (115VAC) / 1.3A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | ||
| KMT12048 | Output power: 120W | Output voltage: 48VDC | Output current: 2.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 2.25A (115VAC) / 1.3A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | ||
| KMT15024 | Output power: 150W | Output voltage: 24VDC | Output current: 6.5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input current: 2.6A (115VAC) / 1.7A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | ||
| KMT15048 | Output power: 150W | Output voltage: 48VDC | Output current: 3.2A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input current: 2.6A (115VAC) / 1.7A (230VAC) | Weight: approx. 0.65 kg | Dimensions (W x H x D): 40 x 125 x 113.5 mm | ||
| KMT24012 | Output power: 240W | Output voltage: 12VDC | Output current: 20A | Voltage tolerance: ±2% | Ripple & noise: 120mV | Efficiency (typ.): 85% | Input current: 2.5A (115VAC) / 1.3A (230VAC) | Weight: approx. 1.08 kg | Dimensions (W x H x D): 63 x 125 x 114.5 mm | ||
| KMT24024 | Output power: 240W | Output voltage: 24VDC | Output current: 10A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 87% | Input current: 2.5A (115VAC) / 1.3A (230VAC) | Weight: approx. 1.08 kg | Dimensions (W x H x D): 63 x 125 x 114.5 mm | ||
| KMT24048 | Output power: 240W | Output voltage: 48VDC | Output current: 5A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 89% | Input current: 2.5A (115VAC) / 1.3A (230VAC) | Weight: approx. 1.08 kg | Dimensions (W x H x D): 63 x 125 x 114.5 mm | ||
| KMT48024 | Output power: 480W | Output voltage: 24VDC | Output current: 20A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90% | Input current: 4.8A (115VAC) / 2.4A (230VAC) | Weight: approx. 1.9 kg | Dimensions (W x H x D): 85.5 x 125 x 129 mm | ||
| KMT48048 | Output power: 480W | Output voltage: 48VDC | Output current: 10A | Voltage tolerance: ±1% | Ripple & noise: 150mV | Efficiency (typ.): 90% | Input current: 4.8A (115VAC) / 2.4A (230VAC) | Weight: approx. 1.9 kg | Dimensions (W x H x D): 85.5 x 125 x 129 mm |
