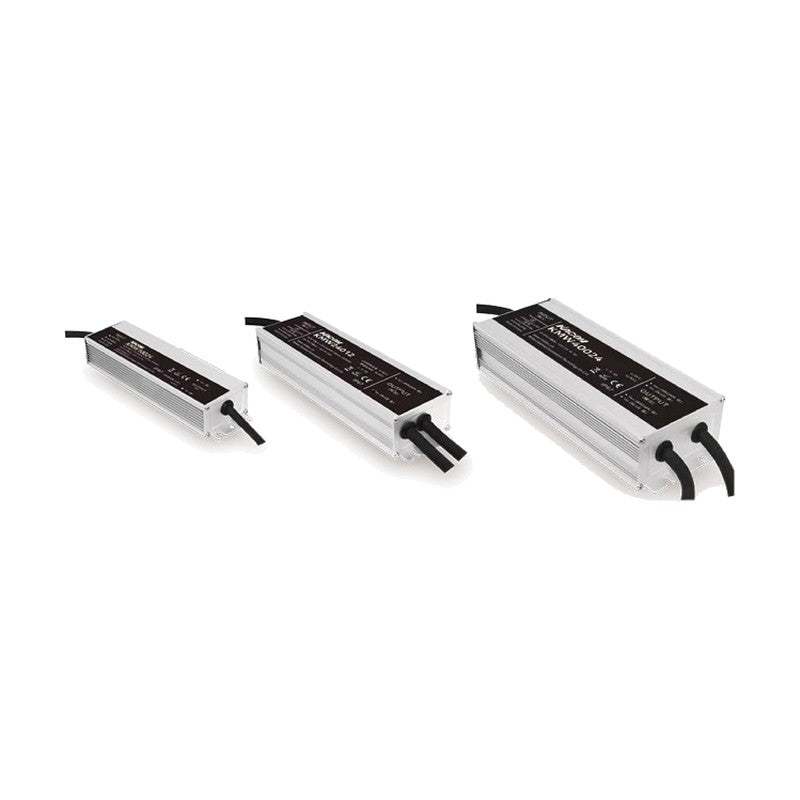

KACON KMW Series Waterproof SMPS 240W

KACON KMW Series Waterproof SMPS 240W

Waterproof aluminum-cased 240W switching power supplies with 12 or 24VDC output for outdoor signage, LED lighting and harsh environments.

Key features

  • Fully waterproof IP67 construction for outdoor applications
  • Designed for harsh environments (temperature, dust, moisture, vibration, salt exposure)
  • Overload and overvoltage protection with automatic reset
  • Full aluminum case for excellent heat dissipation
  • Wide operating temperature range -40 to 70°C

Specifications

Overload protection Yes, automatic reset
Overvoltage protection Yes, automatic reset
Safety standards IEC/EN 60950-1, GB 4943.1
EMC standards EN 55022 (CISPR 22) Class B, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-6-1
Dielectric strength Input-output 3.75kVAC / input-ground 1.75kVAC / output-ground 0.5kVAC
Ambient temperature -40 to 70°C
Housing Aluminum case, waterproof (IP67)
Connection Input and output cables
Input voltage 176-264VAC 50/60Hz; 250-370VDC
Input current 3A (230VAC)
Surge current 80A (230VAC)
Dimensions 230 x 63 x 40 mm
KACON KMW Series Waterproof SMPS 240W - reference 2
KMW24012 Output power: 240W | Output voltage: 12VDC | Output current: 20A | Voltage tolerance: ±2% | Ripple & noise: 120mV | Efficiency (typ.): 91%
KMW24024 Output power: 240W | Output voltage: 24VDC | Output current: 10A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 91%
SMPSKACON
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KMW Series Waterproof SMPS 240W

Brand KACON·SMPS

Available part numbers (2)

KMW24012, KMW24024

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KMW Series Waterproof SMPS 240W - reference 2
0 selected
RFQ List (0)
Product codeSpec
KMW24012Output power: 240W | Output voltage: 12VDC | Output current: 20A | Voltage tolerance: ±2% | Ripple & noise: 120mV | Efficiency (typ.): 91%
KMW24024Output power: 240W | Output voltage: 24VDC | Output current: 10A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 91%
