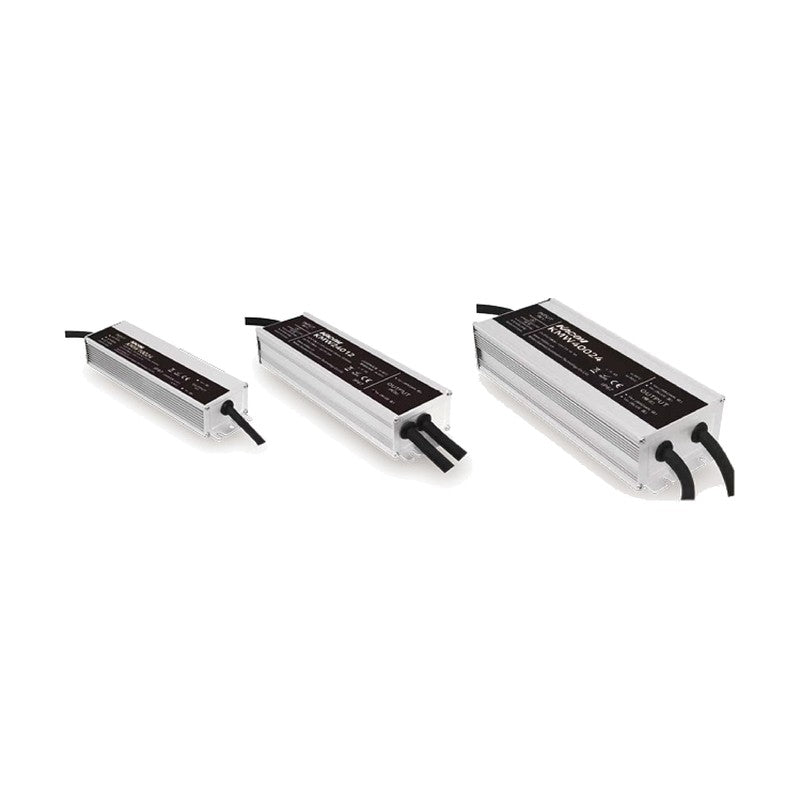

KACON KMW Series Waterproof SMPS 60-400W
KACON KMW Series Waterproof SMPS 60-400W
Waterproof aluminum-cased switching power supplies from 60W to 400W with 12 or 24VDC output for outdoor signage, LED lighting and harsh environments.
Key features
- Fully waterproof IP67 construction for outdoor applications
- Designed for harsh environments (temperature, dust, moisture, vibration, salt exposure)
- Overload and overvoltage protection with automatic reset
- Full aluminum case for excellent heat dissipation
- Wide operating temperature range -40 to 70°C
Specifications
| Overload protection | Yes, automatic reset |
|---|---|
| Overvoltage protection | Yes, automatic reset |
| Safety standards | IEC/EN 60950-1, GB 4943.1 |
| EMC standards | EN 55022 (CISPR 22) Class B, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-6-1 |
| Dielectric strength | Input-output 3.75kVAC / input-ground 1.75kVAC / output-ground 0.5kVAC |
| Ambient temperature | -40 to 70°C |
| Housing | Aluminum case, waterproof (IP67) |
| Connection | Input and output cables |
| KMW6012 | Output power: 60W | Output voltage: 12VDC | Output current: 5A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 84% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 1A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 166 x 50 x 31 mm | Weight: approx. 0.32 kg | |
| KMW6024 | Output power: 60W | Output voltage: 24VDC | Output current: 2.5A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 1A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 166 x 50 x 31 mm | Weight: approx. 0.32 kg | |
| KMW10012 | Output power: 100W | Output voltage: 12VDC | Output current: 8.3A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 86% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 1.5A (230VAC) | Surge current: 90A (230VAC) | Dimensions: 185 x 50 x 31 mm | Weight: approx. 0.55 kg | |
| KMW10024 | Output power: 100W | Output voltage: 24VDC | Output current: 4.1A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 85.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 1.5A (230VAC) | Surge current: 90A (230VAC) | Dimensions: 185 x 50 x 31 mm | Weight: approx. 0.55 kg | |
| KMW20012 | Output power: 200W | Output voltage: 12VDC | Output current: 16.7A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 86% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 2.5A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 217 x 63 x 40 mm | Weight: approx. 0.98 kg | |
| KMW20024 | Output power: 200W | Output voltage: 24VDC | Output current: 8.3A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 89% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 2.5A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 217 x 63 x 40 mm | Weight: approx. 0.98 kg | |
| KMW32012 | Output power: 320W | Output voltage: 12VDC | Output current: 26.7A | Voltage tolerance: ±2% | Ripple & noise: 140mV | Efficiency (typ.): 91% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 3A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 236 x 70 x 40 mm | Weight: approx. 1.25 kg | |
| KMW32024 | Output power: 320W | Output voltage: 24VDC | Output current: 13.3A | Voltage tolerance: ±2% | Ripple & noise: 180mV | Efficiency (typ.): 91% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 3A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 236 x 70 x 40 mm | Weight: approx. 1.25 kg | |
| KMW35012 | Output power: 350W | Output voltage: 12VDC | Output current: 29.1A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.84 kg | |
| KMW35024 | Output power: 350W | Output voltage: 24VDC | Output current: 14.6A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 91% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.84 kg | |
| KMW40012 | Output power: 400W | Output voltage: 12VDC | Output current: 33.3A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.89 kg | |
| KMW40024 | Output power: 400W | Output voltage: 24VDC | Output current: 16.7A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 91% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.89 kg |
SMPSKACON
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KMW Series Waterproof SMPS 60-400W
Available part numbers (12)
KMW6012, KMW6024, KMW10012, KMW10024, KMW20012, KMW20024, KMW32012, KMW32024, KMW35012, KMW35024 + 2 more — see full table ↓
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
SMPS
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KMW6012 | Output power: 60W | Output voltage: 12VDC | Output current: 5A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 84% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 1A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 166 x 50 x 31 mm | Weight: approx. 0.32 kg | ||
| KMW6024 | Output power: 60W | Output voltage: 24VDC | Output current: 2.5A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 88% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 1A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 166 x 50 x 31 mm | Weight: approx. 0.32 kg | ||
| KMW10012 | Output power: 100W | Output voltage: 12VDC | Output current: 8.3A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 86% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 1.5A (230VAC) | Surge current: 90A (230VAC) | Dimensions: 185 x 50 x 31 mm | Weight: approx. 0.55 kg | ||
| KMW10024 | Output power: 100W | Output voltage: 24VDC | Output current: 4.1A | Voltage tolerance: ±3% | Ripple & noise: 150mV | Efficiency (typ.): 85.5% | Input voltage: 180-264VAC 50/60Hz; 254-370VDC | Input current: 1.5A (230VAC) | Surge current: 90A (230VAC) | Dimensions: 185 x 50 x 31 mm | Weight: approx. 0.55 kg | ||
| KMW20012 | Output power: 200W | Output voltage: 12VDC | Output current: 16.7A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 86% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 2.5A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 217 x 63 x 40 mm | Weight: approx. 0.98 kg | ||
| KMW20024 | Output power: 200W | Output voltage: 24VDC | Output current: 8.3A | Voltage tolerance: ±2% | Ripple & noise: 150mV | Efficiency (typ.): 89% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 2.5A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 217 x 63 x 40 mm | Weight: approx. 0.98 kg | ||
| KMW32012 | Output power: 320W | Output voltage: 12VDC | Output current: 26.7A | Voltage tolerance: ±2% | Ripple & noise: 140mV | Efficiency (typ.): 91% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 3A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 236 x 70 x 40 mm | Weight: approx. 1.25 kg | ||
| KMW32024 | Output power: 320W | Output voltage: 24VDC | Output current: 13.3A | Voltage tolerance: ±2% | Ripple & noise: 180mV | Efficiency (typ.): 91% | Input voltage: 176-264VAC 50/60Hz; 250-370VDC | Input current: 3A (230VAC) | Surge current: 80A (230VAC) | Dimensions: 236 x 70 x 40 mm | Weight: approx. 1.25 kg | ||
| KMW35012 | Output power: 350W | Output voltage: 12VDC | Output current: 29.1A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.84 kg | ||
| KMW35024 | Output power: 350W | Output voltage: 24VDC | Output current: 14.6A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 91% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.84 kg | ||
| KMW40012 | Output power: 400W | Output voltage: 12VDC | Output current: 33.3A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 90% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.89 kg | ||
| KMW40024 | Output power: 400W | Output voltage: 24VDC | Output current: 16.7A | Voltage tolerance: ±2% | Ripple & noise: 200mV | Efficiency (typ.): 91% | Input voltage: 90-264VAC 50/60Hz; 127-370VDC | Input current: 3.5A (230VAC) | Surge current: 75A (230VAC) | Dimensions: 245 x 90 x 45 mm | Weight: approx. 1.89 kg |
