KACON KTS & KTC Series Thermostats (-30 to 300 C)

KACON KTS & KTC Series Thermostats (-30 to 300 C)

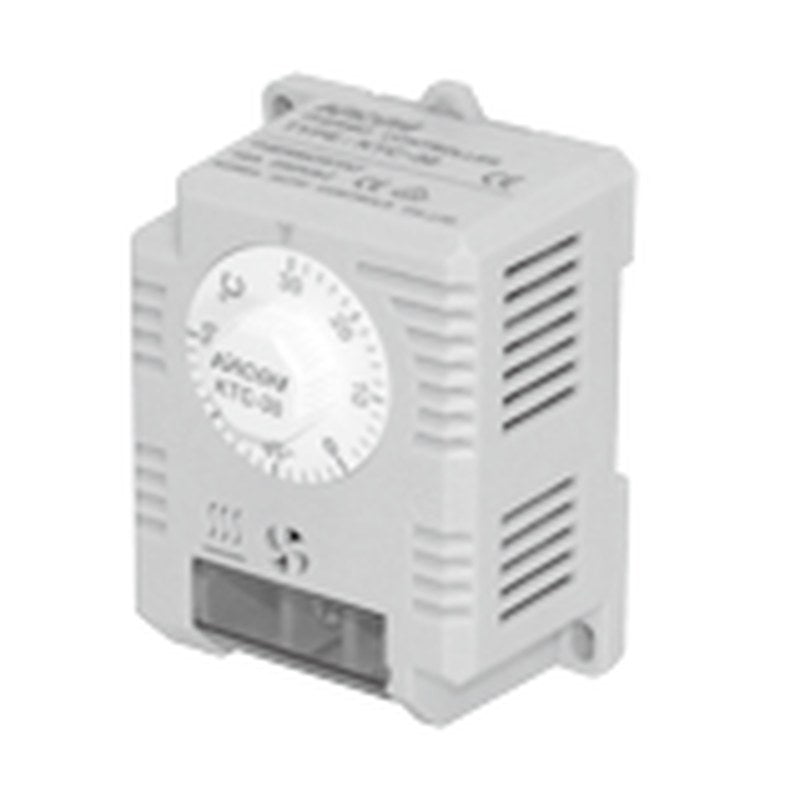

Mechanical thermostats for control panels: KTS capillary-bulb panel type and KTC enclosure type with heater and fan outputs.

Key features

  • Control ranges from -30 to +300 C (120/200/300 C ranges KTS only)
  • Contact rating 16A 250VAC
  • KTC type with HEATER / FAN / COM terminals for heater, fan or combined control
  • Pairs with KSH space heaters
  • Dielectric strength 2,500V for 1 minute

Specifications

Rated current 16A 250VAC
Control temperature range -30 to +300 C
Life Min. 100,000 hrs
Dielectric strength 2,500V / 1 min
Insulation resistance Min. 50 MOhm
Contact resistance Max. 30 mOhm
KTS capillary length 50-750mm
Source KACON KTC KTS Thermostat catalogue, p. 1
KTS-30 Type: Capillary bulb, panel mount | Range: -30 to 30 C | Tolerance: +/-2.5K | On/off differential: 2-7 C
KTC-30 Type: Enclosure, heater/fan terminals | Range: -30 to 30 C | Tolerance: +/-2.5K | On/off differential: 2-7 C
KTS-50 Type: Capillary bulb, panel mount | Range: 0 to 50 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTC-50 Type: Enclosure, heater/fan terminals | Range: 0 to 50 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTS-90 Type: Capillary bulb, panel mount | Range: 0 to 90 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTC-90 Type: Enclosure, heater/fan terminals | Range: 0 to 90 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTS-120 Type: Capillary bulb, panel mount | Range: 0 to 120 C | Tolerance: +/-4K | On/off differential: 2-10 C
KTS-200 Type: Capillary bulb, panel mount | Range: 0 to 200 C | Tolerance: +/-4K | On/off differential: 2-10 C
KTS-300 Type: Capillary bulb, panel mount | Range: 50 to 300 C | Tolerance: +/-10K | On/off differential: 5-30 C
ThermostatsKACON
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTS & KTC Series Thermostats (-30 to 300 C)

Brand KACON·Thermostats

Available part numbers (9)

KTS-30, KTC-30, KTS-50, KTC-50, KTS-90, KTC-90, KTS-120, KTS-200, KTS-300

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTS-30Type: Capillary bulb, panel mount | Range: -30 to 30 C | Tolerance: +/-2.5K | On/off differential: 2-7 C
KTC-30Type: Enclosure, heater/fan terminals | Range: -30 to 30 C | Tolerance: +/-2.5K | On/off differential: 2-7 C
KTS-50Type: Capillary bulb, panel mount | Range: 0 to 50 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTC-50Type: Enclosure, heater/fan terminals | Range: 0 to 50 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTS-90Type: Capillary bulb, panel mount | Range: 0 to 90 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTC-90Type: Enclosure, heater/fan terminals | Range: 0 to 90 C | Tolerance: +/-3K | On/off differential: 2-9 C
KTS-120Type: Capillary bulb, panel mount | Range: 0 to 120 C | Tolerance: +/-4K | On/off differential: 2-10 C
KTS-200Type: Capillary bulb, panel mount | Range: 0 to 200 C | Tolerance: +/-4K | On/off differential: 2-10 C
KTS-300Type: Capillary bulb, panel mount | Range: 50 to 300 C | Tolerance: +/-10K | On/off differential: 5-30 C
