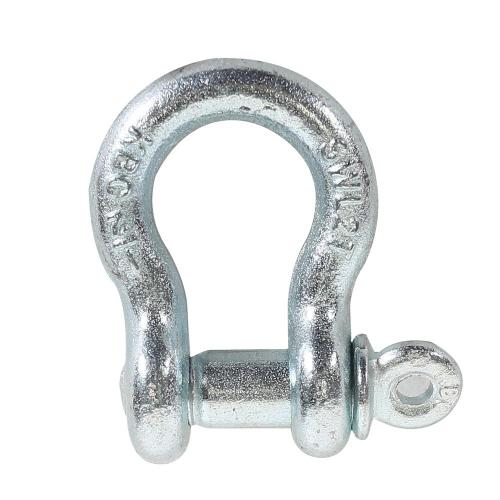

KBC 560-0221 Forged Shackle (FBC)

KBC 560-0221 Forged Shackle (FBC)

KBC 560-0221 Forged Shackle delivers reliable load-bearing connection for rigging and lifting applications, sourced direct from Korea.

Key features

  • Forged shackles of this type are widely used in construction, marine, and industrial lifting operations to link chains, wire ropes, and rigging hardware under heavy load
560-0221 13mm (1/2') | Spec: 1/2 | Weight: 0.32 | A: 20.57 | C: 47.25 | D: 12.70 | E: 33.27 | F: 30.23 | Max Load: 2.00 | H: 83.31 | B: 16.26
560-0230 16mm (5/8') | Spec: 5/8 | Weight: 0.62 | A: 26.92 | C: 60.45 | D: 16.00 | E: 42.93 | F: 38.10 | Max Load: 3.25 | H: 106.43 | B: 19.56
560-0249 19mm (3/4') | Spec: 3/4 | Weight: 1.06 | A: 31.75 | C: 71.37 | D: 19.05 | E: 50.80 | F: 45.97 | Max Load: 4.75 | H: 126.24 | B: 22.61
560-0258 22mm (7/8') | Spec: 7/8 | Weight: 1.64 | A: 36.58 | C: 84.07 | D: 22.35 | E: 57.91 | F: 53.09 | Max Load: 6.50 | H: 148.08 | B: 25.91
560-0267 25mm (1') | Spec: 1 | Weight: 2.28 | A: 42.93 | C: 95.25 | D: 25.40 | E: 68.33 | F: 60.45 | Max Load: 8.50 | H: 166.62 | B: 29.21
560-1707 9.5mm (3/8') | Spec: 9.5(3/8) | Weight: 0.14 | A: 16.76 | C: 36.58 | D: 9.65 | E: 26.16 | F: 23.11 | Max Load: 1.00 | H: 63.25 | B: 11.18
560-1789 6.4mm (1/4') | Spec: 6.4(1/4) | Weight: 0.05 | A: 11.94 | C: 28.70 | D: 6.35 | E: 19.81 | F: 15.49 | Max Load: 0.50 | H: 46.74 | B: 7.87
560-1859 7.9mm (5/16') | Spec: 7.9(5/16) | Weight: 0.09 | A: 13.46 | C: 30.99 | D: 7.87 | E: 21.34 | F: 19.05 | Max Load: 0.75 | H: 53.09 | B: 9.65
Chains & WiresKBC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-0221 Forged Shackle (FBC)

Brand KBC·Chains & Wires

Available part numbers (8)

560-0221, 560-0230, 560-0249, 560-0258, 560-0267, 560-1707, 560-1789, 560-1859

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-022113mm (1/2') | Spec: 1/2 | Weight: 0.32 | A: 20.57 | C: 47.25 | D: 12.70 | E: 33.27 | F: 30.23 | Max Load: 2.00 | H: 83.31 | B: 16.26
560-023016mm (5/8') | Spec: 5/8 | Weight: 0.62 | A: 26.92 | C: 60.45 | D: 16.00 | E: 42.93 | F: 38.10 | Max Load: 3.25 | H: 106.43 | B: 19.56
560-024919mm (3/4') | Spec: 3/4 | Weight: 1.06 | A: 31.75 | C: 71.37 | D: 19.05 | E: 50.80 | F: 45.97 | Max Load: 4.75 | H: 126.24 | B: 22.61
560-025822mm (7/8') | Spec: 7/8 | Weight: 1.64 | A: 36.58 | C: 84.07 | D: 22.35 | E: 57.91 | F: 53.09 | Max Load: 6.50 | H: 148.08 | B: 25.91
560-026725mm (1') | Spec: 1 | Weight: 2.28 | A: 42.93 | C: 95.25 | D: 25.40 | E: 68.33 | F: 60.45 | Max Load: 8.50 | H: 166.62 | B: 29.21
560-17079.5mm (3/8') | Spec: 9.5(3/8) | Weight: 0.14 | A: 16.76 | C: 36.58 | D: 9.65 | E: 26.16 | F: 23.11 | Max Load: 1.00 | H: 63.25 | B: 11.18
560-17896.4mm (1/4') | Spec: 6.4(1/4) | Weight: 0.05 | A: 11.94 | C: 28.70 | D: 6.35 | E: 19.81 | F: 15.49 | Max Load: 0.50 | H: 46.74 | B: 7.87
560-18597.9mm (5/16') | Spec: 7.9(5/16) | Weight: 0.09 | A: 13.46 | C: 30.99 | D: 7.87 | E: 21.34 | F: 19.05 | Max Load: 0.75 | H: 53.09 | B: 9.65
