KBC 560-0373 Cast Turnbuckle

KBC 560-0373 Cast Turnbuckle

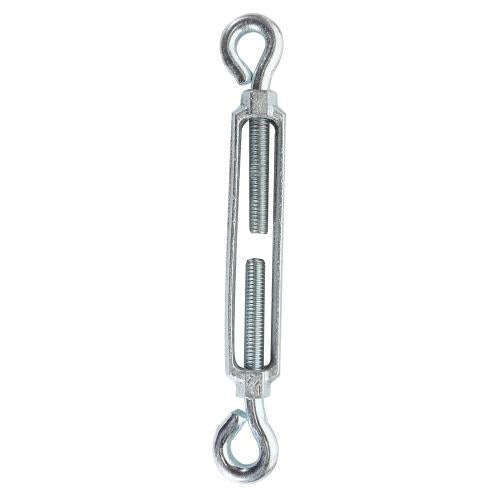

KBC Cast Turnbuckle (560-0373) is a threaded tensioning device used for adjusting and maintaining tension in cables, rods, and wire rope assemblies, sourced direct from Korea.

Key features

  • Commonly found in rigging, structural support, marine, and construction applications, cast turnbuckles allow precise load adjustment between two anchor points without disassembling the line
560-0373 9.5mm (3/8') | Spec: 3/8 | Weight: 0.32 | A: 160 | C: 9 | D: 17 | E: 30 | F: 85 | G: 130 | B: 130
560-0382 13mm (1/2') | Spec: 1/2 | Weight: 0.60 | A: 190 | C: 10 | D: 20 | E: 30 | F: 95 | G: 150 | B: 155
560-0391 16mm (5/8') | Spec: 5/8 | Weight: 1.08 | A: 250 | C: 15 | D: 25 | E: 45 | F: 130 | G: 190 | B: 200
560-0407 19mm (3/4') | Spec: 3/4 | Weight: 1.55 | A: 250 | C: 20 | D: 35 | E: 45 | F: 140 | G: 210 | B: 200
560-1798 6.4mm (1/4') | Spec: 6.4(1/4) | Weight: 0.10 | A: 78 | C: 7 | D: 10 | E: 20 | F: 55 | G: 85 | B: 60
560-1877 7.9mm (5/16') | Spec: 5/16 | Weight: 0.18 | A: 90 | C: 8 | D: 11 | E: 22 | F: 65 | G: 95 | B: 70
560-2511 4.8mm (3/16') | Spec: 3/16 | Weight: - | A: 57 | C: 5 | D: 8 | E: 15 | F: 36 | G: 54.6 | B: 41
Chains & WiresKBC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-0373 Cast Turnbuckle

Brand KBC·Chains & Wires

Available part numbers (7)

560-0373, 560-0382, 560-0391, 560-0407, 560-1798, 560-1877, 560-2511

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-03739.5mm (3/8') | Spec: 3/8 | Weight: 0.32 | A: 160 | C: 9 | D: 17 | E: 30 | F: 85 | G: 130 | B: 130
560-038213mm (1/2') | Spec: 1/2 | Weight: 0.60 | A: 190 | C: 10 | D: 20 | E: 30 | F: 95 | G: 150 | B: 155
560-039116mm (5/8') | Spec: 5/8 | Weight: 1.08 | A: 250 | C: 15 | D: 25 | E: 45 | F: 130 | G: 190 | B: 200
560-040719mm (3/4') | Spec: 3/4 | Weight: 1.55 | A: 250 | C: 20 | D: 35 | E: 45 | F: 140 | G: 210 | B: 200
560-17986.4mm (1/4') | Spec: 6.4(1/4) | Weight: 0.10 | A: 78 | C: 7 | D: 10 | E: 20 | F: 55 | G: 85 | B: 60
560-18777.9mm (5/16') | Spec: 5/16 | Weight: 0.18 | A: 90 | C: 8 | D: 11 | E: 22 | F: 65 | G: 95 | B: 70
560-25114.8mm (3/16') | Spec: 3/16 | Weight: - | A: 57 | C: 5 | D: 8 | E: 15 | F: 36 | G: 54.6 | B: 41
