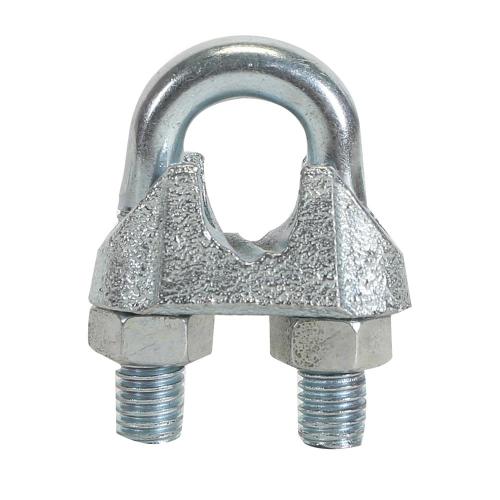

KBC 560-0416 Wire Rope Clip

KBC 560-0416 Wire Rope Clip

KBC Wire Rope Clip is a mechanical fastening component used to secure wire rope ends and form fixed loops, sourced direct from Korea.

Key features

  • Commonly used in rigging, lifting, hoisting, and tie-down applications, these clips are a standard hardware element wherever wire rope terminations need to be held firmly under load
560-0416 3.2mm (1/8") General Clip | Spec: 1/8 | Weight: 0.006 | A: 11 | C: 14 | D: - | E: 10 | F: 22 | G: 20 | B: 14
560-0425 4.8mm (3/16") Standard Clip | Spec: 3/16 | Weight: 0.0136 | A: 13 | C: 16 | D: 10-24 | E: 13 | F: 26 | G: 24 | B: 15
560-0434 6.4mm (1/4") Standard Clip | Spec: 1/4 | Weight: 0.236 | A: 28 | C: 20 | D: 1/4-20 | E: 15 | F: 32 | G: 31 | B: 18
560-0443 7.9mm (5/16") Standard Clip | Spec: 5/16 | Weight: 0.0268 | A: 18 | C: 22 | D: 5/16-18 | E: 16 | F: 35 | G: 34 | B: 20
560-0452 9.5mm (3/8'), Standard Clip | Spec: 3/8 | Weight: 0.045 | A: 22 | C: 27 | D: 3/8-16 | E: 22 | F: 42 | G: 42 | B: 22
560-0461 13mm (1/2") General Clip | Spec: 1/2 | Weight: 0.079 | A: 27 | C: 35 | D: 7/16-14 | E: 23 | F: 49 | G: 54 | B: 26
560-0470 16mm (5/8") General Clip | Spec: 5/8 | Weight: 0.11 | A: 33 | C: 40 | D: 1/2-13 | E: 28 | F: 57 | G: 59 | B: 28
560-0489 19mm (3/4'), Standard Clip | Spec: 3/4 | Weight: 0.16 | A: 34 | C: 42 | D: 9/16-12 | E: 34 | F: 61 | G: 68 | B: 32
560-0498 22mm (7/8") Standard Clip | Spec: 7/8 | Weight: 0.24 | A: 41 | C: 46 | D: 5/8-11 | E: 38 | F: 71 | G: 78 | B: 37
560-0504 25mm (1') Standard Clip | Spec: 1 | Weight: 0.3 | A: 45 | C: 55 | D: 5/8-11 | E: 43 | F: 77 | G: 87 | B: 42
Chains & WiresKBC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-0416 Wire Rope Clip

Brand KBC·Chains & Wires

Available part numbers (10)

560-0416, 560-0425, 560-0434, 560-0443, 560-0452, 560-0461, 560-0470, 560-0489, 560-0498, 560-0504

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-04163.2mm (1/8") General Clip | Spec: 1/8 | Weight: 0.006 | A: 11 | C: 14 | D: - | E: 10 | F: 22 | G: 20 | B: 14
560-04254.8mm (3/16") Standard Clip | Spec: 3/16 | Weight: 0.0136 | A: 13 | C: 16 | D: 10-24 | E: 13 | F: 26 | G: 24 | B: 15
560-04346.4mm (1/4") Standard Clip | Spec: 1/4 | Weight: 0.236 | A: 28 | C: 20 | D: 1/4-20 | E: 15 | F: 32 | G: 31 | B: 18
560-04437.9mm (5/16") Standard Clip | Spec: 5/16 | Weight: 0.0268 | A: 18 | C: 22 | D: 5/16-18 | E: 16 | F: 35 | G: 34 | B: 20
560-04529.5mm (3/8'), Standard Clip | Spec: 3/8 | Weight: 0.045 | A: 22 | C: 27 | D: 3/8-16 | E: 22 | F: 42 | G: 42 | B: 22
560-046113mm (1/2") General Clip | Spec: 1/2 | Weight: 0.079 | A: 27 | C: 35 | D: 7/16-14 | E: 23 | F: 49 | G: 54 | B: 26
560-047016mm (5/8") General Clip | Spec: 5/8 | Weight: 0.11 | A: 33 | C: 40 | D: 1/2-13 | E: 28 | F: 57 | G: 59 | B: 28
560-048919mm (3/4'), Standard Clip | Spec: 3/4 | Weight: 0.16 | A: 34 | C: 42 | D: 9/16-12 | E: 34 | F: 61 | G: 68 | B: 32
560-049822mm (7/8") Standard Clip | Spec: 7/8 | Weight: 0.24 | A: 41 | C: 46 | D: 5/8-11 | E: 38 | F: 71 | G: 78 | B: 37
560-050425mm (1') Standard Clip | Spec: 1 | Weight: 0.3 | A: 45 | C: 55 | D: 5/8-11 | E: 43 | F: 77 | G: 87 | B: 42
