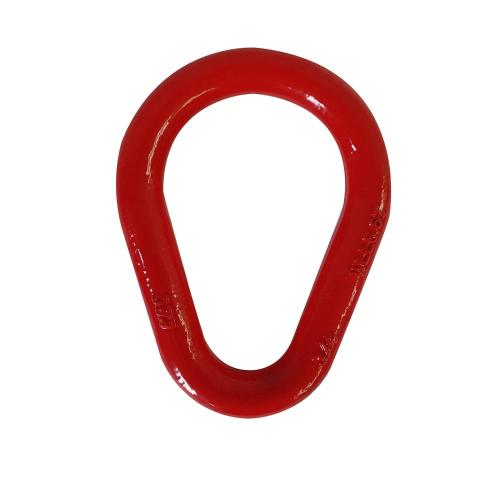

KBC 560-0771 Sling Link

KBC 560-0771 Sling Link

The KBC Sling Link is a rigging connector used to join wire rope slings, chain slings, or lifting assemblies into a secure configuration, sourced direct from Korea.

Key features

  • Commonly used in overhead lifting, material handling, and rigging operations across construction, shipbuilding, and heavy manufacturing environments, this hardware provides a reliable load-bearing link between sling legs and the lifting hook or master link
560-0771 13mm (1/2') | Spec: 1/2 | Weight: 0.30 | Safe Working Load: 3.2 | A: 1/2 | C: 25 | D: 100 | E: 76 | F: 13 | B: 38
560-0780 16mm (5/8') | Spec: 5/8 | Weight: 0.50 | Safe Working Load: 4.1 | A: 5/8 | C: 32 | D: 127 | E: 95 | F: 16 | B: 48
560-0799 19mm (3/4') | Spec: 3/4 | Weight: 0.90 | Safe Working Load: 5.5 | A: 3/4 | C: 38 | D: 152 | E: 114 | F: 19 | B: 57
560-0805 22mm (7/8') | Spec: 7/8 | Weight: 1.30 | Safe Working Load: 6.8 | A: 7/8 | C: 45 | D: 178 | E: 133 | F: 22 | B: 67
560-0814 25mm (1') | Spec: 1 | Weight: 2.00 | Safe Working Load: 11.0 | A: 1 | C: 50 | D: 203 | E: 152 | F: 25 | B: 76
Chains & WiresKBC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-0771 Sling Link

Brand KBC·Chains & Wires

Available part numbers (5)

560-0771, 560-0780, 560-0799, 560-0805, 560-0814

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-077113mm (1/2') | Spec: 1/2 | Weight: 0.30 | Safe Working Load: 3.2 | A: 1/2 | C: 25 | D: 100 | E: 76 | F: 13 | B: 38
560-078016mm (5/8') | Spec: 5/8 | Weight: 0.50 | Safe Working Load: 4.1 | A: 5/8 | C: 32 | D: 127 | E: 95 | F: 16 | B: 48
560-079919mm (3/4') | Spec: 3/4 | Weight: 0.90 | Safe Working Load: 5.5 | A: 3/4 | C: 38 | D: 152 | E: 114 | F: 19 | B: 57
560-080522mm (7/8') | Spec: 7/8 | Weight: 1.30 | Safe Working Load: 6.8 | A: 7/8 | C: 45 | D: 178 | E: 133 | F: 22 | B: 67
560-081425mm (1') | Spec: 1 | Weight: 2.00 | Safe Working Load: 11.0 | A: 1 | C: 50 | D: 203 | E: 152 | F: 25 | B: 76
