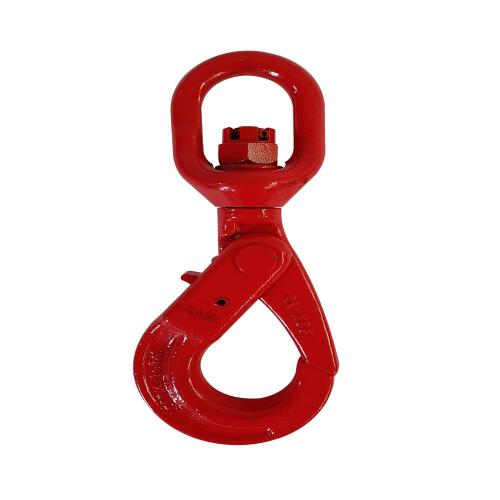

KBC 560-0911 Safety Latch Hook Shackle Type

KBC 560-0911 Safety Latch Hook Shackle Type

KBC 560-0911 Safety Latch Hook in a shackle-type configuration is a load-securing connector designed for lifting, rigging, and tethering applications, sourced direct from Korea.

Key features

  • Shackle-type safety latch hooks are widely used in construction, marine, and material handling environments where a positive locking mechanism is needed to prevent accidental disengagement under load
560-0911 6mm (1/4') | Weight: 0.80 | Safe Working Load: 1.2 | A: 33 | D: 11 | Chain Spec: 6 | K: 150 | P: 28 | T: 15 | H: 20 | B: 23
560-0920 8mm (5/16') | Weight: 1.20 | Safe Working Load: 2.0 | A: 34 | D: 13 | Chain Spec: 8 | K: 185 | P: 34 | T: 19 | H: 24 | B: 27
560-0939 10mm (3/8') | Weight: 2.50 | Safe Working Load: 3.2 | A: 42 | D: 16 | Chain Spec: 10 | K: 217 | P: 45 | T: 23 | H: 30 | B: 35
560-0948 13mm (1/2') | Weight: 4.50 | Safe Working Load: 5.4 | A: 48 | D: 21 | Chain Spec: 13 | K: 268 | P: 54 | T: 27 | H: 40 | B: 41
Chains & WiresKBC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-0911 Safety Latch Hook Shackle Type

Brand KBC·Chains & Wires

Available part numbers (4)

560-0911, 560-0920, 560-0939, 560-0948

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-09116mm (1/4') | Weight: 0.80 | Safe Working Load: 1.2 | A: 33 | D: 11 | Chain Spec: 6 | K: 150 | P: 28 | T: 15 | H: 20 | B: 23
560-09208mm (5/16') | Weight: 1.20 | Safe Working Load: 2.0 | A: 34 | D: 13 | Chain Spec: 8 | K: 185 | P: 34 | T: 19 | H: 24 | B: 27
560-093910mm (3/8') | Weight: 2.50 | Safe Working Load: 3.2 | A: 42 | D: 16 | Chain Spec: 10 | K: 217 | P: 45 | T: 23 | H: 30 | B: 35
560-094813mm (1/2') | Weight: 4.50 | Safe Working Load: 5.4 | A: 48 | D: 21 | Chain Spec: 13 | K: 268 | P: 54 | T: 27 | H: 40 | B: 41
