• KBC 560-1187 Eye Bolt
1 1

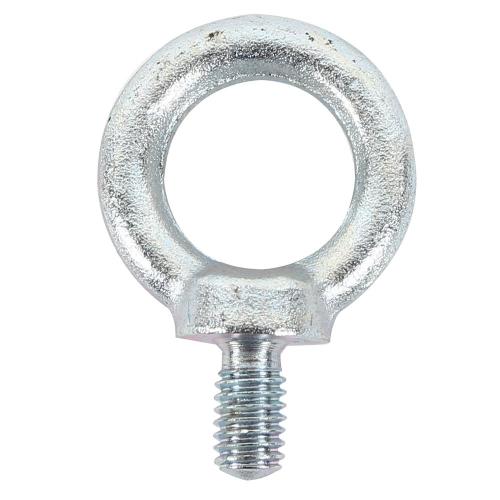

KBC 560-1187 Eye Bolt

KBC 560-1187 Eye Bolt

KBC Eye Bolt (560-1187) is a lifting and rigging attachment hardware piece sourced direct from Korea.

Key features

  • Eye bolts are commonly used in industrial rigging, overhead lifting, and load-securing applications where a reliable anchor point is needed for hooks, chains, or wire rope
560-1187 5/16 | Spec: 5/16 | Weight: 0.04 | L: 15.0 | Safe Working Load: 0.08 | A: 32.6 | C: 6.3 | D: 16.0 | H: 33.3 | B: 20.0
560-1196 3/8 | Spec: 3/8 | Weight: 0.07 | L: 18.0 | Safe Working Load: 0.15 | A: 41.0 | C: 8.0 | D: 20.0 | H: 41.5 | B: 25.0
560-1202 1/2 | Spec: 1/2 | Weight: 0.14 | L: 22.0 | Safe Working Load: 0.22 | A: 50.0 | C: 10.0 | D: 25.0 | H: 51.0 | B: 30.0
560-1211 5/8 | Spec: 5/8 | Weight: 0.26 | L: 27.0 | Safe Working Load: 0.45 | A: 60.0 | C: 12.5 | D: 30.0 | H: 60.0 | B: 35.0
560-1220 3/4 | Spec: 3/4 | Weight: 0.43 | L: 30.0 | Safe Working Load: 0.63 | A: 72.0 | C: 16.0 | D: 35.0 | H: 71.0 | B: 40.0
560-1239 7/8 | Spec: 7/8 | Weight: 0.75 | L: 38.0 | Safe Working Load: 0.70 | A: 90.0 | C: 20.0 | D: 45.0 | H: 90.0 | B: 50.0
560-1248 1 | Spec: 1 | Weight: 0.85 | L: 38.0 | Safe Working Load: 0.95 | A: 90.0 | C: 20.0 | D: 45.0 | H: 90.0 | B: 50.0
Chains & WiresKBC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-1187 Eye Bolt

Brand KBC·Chains & Wires

Available part numbers (7)

560-1187, 560-1196, 560-1202, 560-1211, 560-1220, 560-1239, 560-1248

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-11875/16 | Spec: 5/16 | Weight: 0.04 | L: 15.0 | Safe Working Load: 0.08 | A: 32.6 | C: 6.3 | D: 16.0 | H: 33.3 | B: 20.0
560-11963/8 | Spec: 3/8 | Weight: 0.07 | L: 18.0 | Safe Working Load: 0.15 | A: 41.0 | C: 8.0 | D: 20.0 | H: 41.5 | B: 25.0
560-12021/2 | Spec: 1/2 | Weight: 0.14 | L: 22.0 | Safe Working Load: 0.22 | A: 50.0 | C: 10.0 | D: 25.0 | H: 51.0 | B: 30.0
560-12115/8 | Spec: 5/8 | Weight: 0.26 | L: 27.0 | Safe Working Load: 0.45 | A: 60.0 | C: 12.5 | D: 30.0 | H: 60.0 | B: 35.0
560-12203/4 | Spec: 3/4 | Weight: 0.43 | L: 30.0 | Safe Working Load: 0.63 | A: 72.0 | C: 16.0 | D: 35.0 | H: 71.0 | B: 40.0
560-12397/8 | Spec: 7/8 | Weight: 0.75 | L: 38.0 | Safe Working Load: 0.70 | A: 90.0 | C: 20.0 | D: 45.0 | H: 90.0 | B: 50.0
560-12481 | Spec: 1 | Weight: 0.85 | L: 38.0 | Safe Working Load: 0.95 | A: 90.0 | C: 20.0 | D: 45.0 | H: 90.0 | B: 50.0
