• KBC 560-1512 Forged Shackle Single
1 1

KBC 560-1512 Forged Shackle Single

KBC 560-1512 Forged Shackle Single

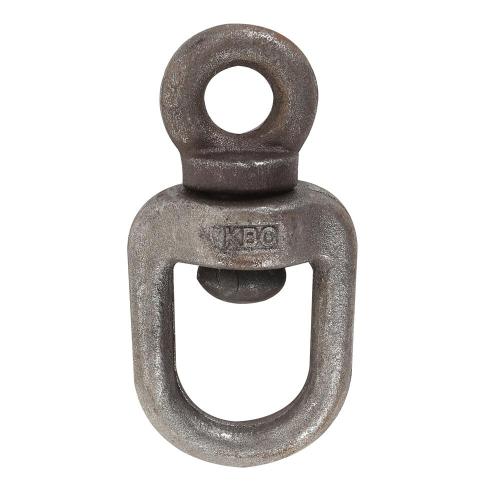

KBC Forged Shackle Single is a heavy-duty connecting hardware component sourced direct from Korea.

Key features

  • Forged shackles of this type are widely used in rigging, lifting, and load-securing applications across construction, marine, and industrial environments where reliable pin connections are essential
560-1512 13mm (1/2') | Spec: 13 | Weight: 0.5 | L: 124 | Safe Working Load: 1.0 | A: 37 | d: 13 | B: 38 | B1: 17
560-1521 16mm (5/8') | Spec: 16 | Weight: 0.9 | L: 156 | Safe Working Load: 1.5 | A: 42 | d: 16 | B: 46 | B1: 23
560-1530 19mm (3/4') | Spec: 19 | Weight: 1.4 | L: 182 | Safe Working Load: 2.5 | A: 46 | d: 19 | B: 48 | B1: 26
560-1549 22mm (7/8') | Spec: 22 | Weight: 1.9 | L: 208 | Safe Working Load: 5.0 | A: 47 | d: 22 | B: 53 | B1: 27
560-1558 25mm (1') | Spec: 25 | Weight: 2.7 | L: 233 | Safe Working Load: 6.5 | A: 54 | d: 25 | B: 62 | B1: 30
560-1567 29mm (1 1/8') | Spec: 28 | Weight: 4.1 | L: 250 | Safe Working Load: 8.0 | A: 57 | d: 28 | B: 63 | B1: 37
560-1576 32mm (1 1/4') | Spec: 32 | Weight: 5.6 | L: 276 | Safe Working Load: 10.0 | A: 64 | d: 32 | B: 66 | B1: 37
560-1585 38mm (1 1/2') | Spec: 38 | Weight: 8.2 | L: 328 | Safe Working Load: 15.0 | A: 69 | d: 38 | B: 82 | B1: 46
Chains & WiresKBC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-1512 Forged Shackle Single

Brand KBC·Chains & Wires

Available part numbers (8)

560-1512, 560-1521, 560-1530, 560-1549, 560-1558, 560-1567, 560-1576, 560-1585

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-151213mm (1/2') | Spec: 13 | Weight: 0.5 | L: 124 | Safe Working Load: 1.0 | A: 37 | d: 13 | B: 38 | B1: 17
560-152116mm (5/8') | Spec: 16 | Weight: 0.9 | L: 156 | Safe Working Load: 1.5 | A: 42 | d: 16 | B: 46 | B1: 23
560-153019mm (3/4') | Spec: 19 | Weight: 1.4 | L: 182 | Safe Working Load: 2.5 | A: 46 | d: 19 | B: 48 | B1: 26
560-154922mm (7/8') | Spec: 22 | Weight: 1.9 | L: 208 | Safe Working Load: 5.0 | A: 47 | d: 22 | B: 53 | B1: 27
560-155825mm (1') | Spec: 25 | Weight: 2.7 | L: 233 | Safe Working Load: 6.5 | A: 54 | d: 25 | B: 62 | B1: 30
560-156729mm (1 1/8') | Spec: 28 | Weight: 4.1 | L: 250 | Safe Working Load: 8.0 | A: 57 | d: 28 | B: 63 | B1: 37
560-157632mm (1 1/4') | Spec: 32 | Weight: 5.6 | L: 276 | Safe Working Load: 10.0 | A: 64 | d: 32 | B: 66 | B1: 37
560-158538mm (1 1/2') | Spec: 38 | Weight: 8.2 | L: 328 | Safe Working Load: 15.0 | A: 69 | d: 38 | B: 82 | B1: 46
