KBC 560-1992 Forged Shackle (FSB)

KBC 560-1992 Forged Shackle (FSB)

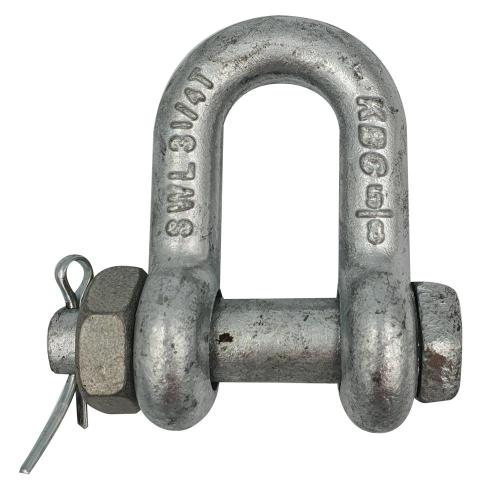

The KBC 560-1992 Forged Shackle (FSB) is a heavy-duty lifting and rigging connector sourced direct from Korea.

Key features

  • Forged shackles of this type are widely used in construction, marine, and industrial lifting applications to securely connect chains, wire ropes, slings, and hooks under load
560-1992 13mm (1/2') | Spec: 1/2 | Weight: 0.34 | A: 20.57 | D: 12.70 | F: 30.23 | G: 42.16 | K: 76.96 | Max Load: 2.00 | B: 16.26
560-2007 16mm (5/8') | Spec: 5/8 | Weight: 0.67 | A: 26.92 | D: 16.00 | F: 38.10 | G: 51.82 | K: 95.50 | Max Load: 3.25 | B: 19.56
560-2016 19mm (3/4') | Spec: 3/4 | Weight: 1.14 | A: 31.75 | D: 19.05 | F: 45.97 | G: 60.96 | K: 115.06 | Max Load: 4.75 | B: 22.61
560-2025 22mm (7/8') | Spec: 7/8 | Weight: 1.75 | A: 36.58 | D: 22.35 | F: 53.09 | G: 72.64 | K: 135.38 | Max Load: 6.50 | B: 25.91
560-2034 25mm (1') | Spec: 1 | Weight: 2.52 | A: 42.93 | D: 25.40 | F: 60.45 | G: 82.30 | K: 150.88 | Max Load: 8.50 | B: 29.21
560-2061 9.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | A: 16.76 | D: 9.65 | F: 23.11 | G: 32.51 | K: 58.67 | Max Load: 1.00 | B: 11.18
Chains & WiresKBC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-1992 Forged Shackle (FSB)

Brand KBC·Chains & Wires

Available part numbers (6)

560-1992, 560-2007, 560-2016, 560-2025, 560-2034, 560-2061

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-199213mm (1/2') | Spec: 1/2 | Weight: 0.34 | A: 20.57 | D: 12.70 | F: 30.23 | G: 42.16 | K: 76.96 | Max Load: 2.00 | B: 16.26
560-200716mm (5/8') | Spec: 5/8 | Weight: 0.67 | A: 26.92 | D: 16.00 | F: 38.10 | G: 51.82 | K: 95.50 | Max Load: 3.25 | B: 19.56
560-201619mm (3/4') | Spec: 3/4 | Weight: 1.14 | A: 31.75 | D: 19.05 | F: 45.97 | G: 60.96 | K: 115.06 | Max Load: 4.75 | B: 22.61
560-202522mm (7/8') | Spec: 7/8 | Weight: 1.75 | A: 36.58 | D: 22.35 | F: 53.09 | G: 72.64 | K: 135.38 | Max Load: 6.50 | B: 25.91
560-203425mm (1') | Spec: 1 | Weight: 2.52 | A: 42.93 | D: 25.40 | F: 60.45 | G: 82.30 | K: 150.88 | Max Load: 8.50 | B: 29.21
560-20619.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | A: 16.76 | D: 9.65 | F: 23.11 | G: 32.51 | K: 58.67 | Max Load: 1.00 | B: 11.18
