• KBC 560-2326 Screw Carabiner
1 1

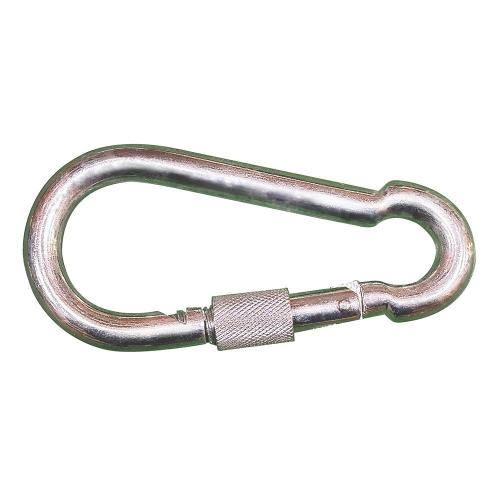

KBC 560-2326 Screw Carabiner

KBC 560-2326 Screw Carabiner

The KBC 560-2326 Screw Carabiner is a locking connector used to secure loads, lines, and rigging assemblies, sourced direct from Korea.

Key features

  • Screw carabiners are widely used in lifting, rigging, and material handling applications where a manually locked gate provides added security against accidental release
560-2326 5mm | Spec: 5 | L: 50.0 | A: 6.0 | S: 8.0 | Max Load: 72 | A1: 10.0
560-2335 6mm | Spec: 6 | L: 60.0 | A: 8.0 | S: 9.0 | Max Load: 118 | A1: 11.0
560-2344 7mm | Spec: 7 | L: 70.0 | A: 8.0 | S: 9.0 | Max Load: 152 | A1: 13.0
560-2353 8mm | Spec: 8 | L: 80.0 | A: 8.0 | S: 9.0 | Max Load: 181 | A1: 13.0
560-2362 9mm | Spec: 9 | L: 90.0 | A: 8.0 | S: 9.0 | Max Load: 227 | A1: 14.0
560-2371 10mm | Spec: 10 | L: 100.0 | A: 10.0 | S: 12.0 | Max Load: 295 | A1: 16.0
560-2380 11mm | Spec: 11 | L: 120.0 | A: 11.0 | S: 16.0 | Max Load: 318 | A1: 18.0
560-2399 12mm | Spec: 12 | L: 140.0 | A: 13.0 | S: 19.0 | Max Load: 363 | A1: 20.0
Chains & WiresKBC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 560-2326 Screw Carabiner

Brand KBC·Chains & Wires

Available part numbers (8)

560-2326, 560-2335, 560-2344, 560-2353, 560-2362, 560-2371, 560-2380, 560-2399

How to order

Send the KBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
560-23265mm | Spec: 5 | L: 50.0 | A: 6.0 | S: 8.0 | Max Load: 72 | A1: 10.0
560-23356mm | Spec: 6 | L: 60.0 | A: 8.0 | S: 9.0 | Max Load: 118 | A1: 11.0
560-23447mm | Spec: 7 | L: 70.0 | A: 8.0 | S: 9.0 | Max Load: 152 | A1: 13.0
560-23538mm | Spec: 8 | L: 80.0 | A: 8.0 | S: 9.0 | Max Load: 181 | A1: 13.0
560-23629mm | Spec: 9 | L: 90.0 | A: 8.0 | S: 9.0 | Max Load: 227 | A1: 14.0
560-237110mm | Spec: 10 | L: 100.0 | A: 10.0 | S: 12.0 | Max Load: 295 | A1: 16.0
560-238011mm | Spec: 11 | L: 120.0 | A: 11.0 | S: 16.0 | Max Load: 318 | A1: 18.0
560-239912mm | Spec: 12 | L: 140.0 | A: 13.0 | S: 19.0 | Max Load: 363 | A1: 20.0

Need a different model, or a part not listed here? Send us your parts list →
