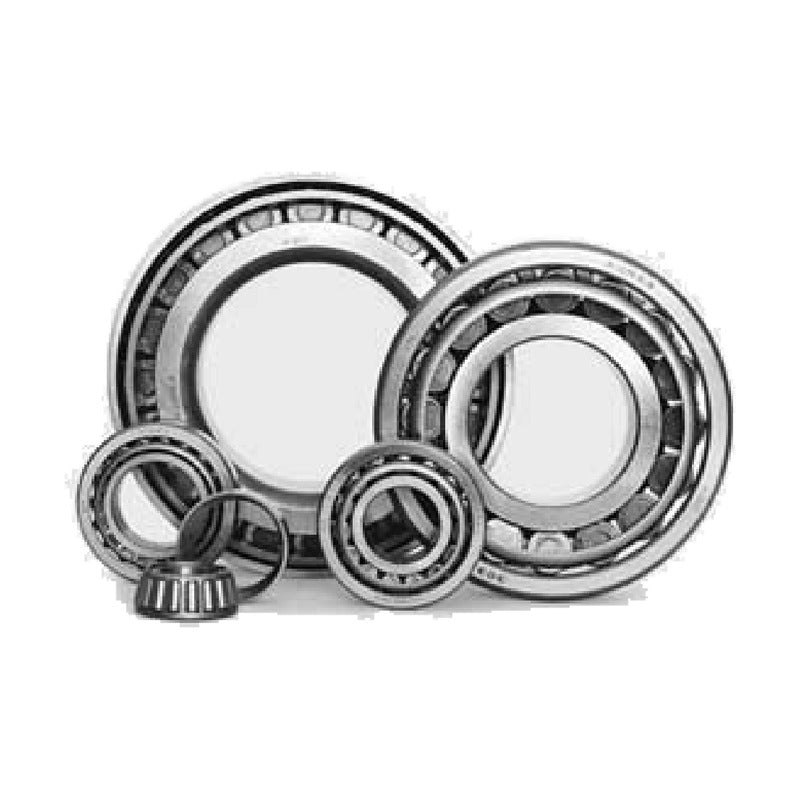

KBC 320 X Series Tapered Roller Bearings (Metric)

KBC 320 X Series Tapered Roller Bearings (Metric)

KBC single-row metric tapered roller bearings of the extra-light series 320 X to ISO 355 and KS B 2027. ISO 355 dimension series codes are printed in the catalogue for most sizes.

Key features

  • Separable cone (inner ring with rollers and cage) and cup (outer ring)
  • Carries combined radial and one-direction axial loads
  • Suffix J: dimensions per ISO 355; C / D: steeper contact angle
  • Pressed steel cage as standard
  • Usually mounted in pairs, adjusted against a second bearing

Specifications

Rows Single row
Dimensions Metric, ISO 355 / KS B 2027
Contact angle codes C approx. 20 deg, D approx. 28 deg
Source KBC Rolling Bearings catalogue GB 41 500, p. 180-187; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
32004XJ d: 20 mm | D: 42 mm | T: 15 mm | C: 25.8 kN | C0: 28.3 kN | Mass: 0.097 kg
32005XJ d: 25 mm | D: 47 mm | T: 15 mm | C: 27.5 kN | C0: 34.2 kN | Mass: 0.116 kg
320/28XJ d: 28 mm | D: 52 mm | T: 16 mm | C: 33 kN | C0: 40.5 kN | Mass: 0.146 kg
32007XJF1 d: 28 mm | D: 62 mm | T: 18 mm | C: 42.5 kN | C0: 56 kN | Mass: 0.274 kg
32006XJ d: 30 mm | D: 55 mm | T: 17 mm | C: 35.5 kN | C0: 44.5 kN | Mass: 0.172 kg
32007XJ d: 35 mm | D: 62 mm | T: 18 mm | C: 42.5 kN | C0: 56 kN | Mass: 0.229 kg
32008XJ d: 40 mm | D: 68 mm | T: 19 mm | C: 51.5 kN | C0: 67 kN | Mass: 0.279 kg
32008XJh d: 40 mm | D: 68 mm | T: 19 mm | C: 50.5 kN | C0: 67 kN | Mass: 0.334 kg
32009XJ d: 45 mm | D: 75 mm | T: 20 mm | C: 57 kN | C0: 78 kN | Mass: 0.353 kg
32010XJ d: 50 mm | D: 80 mm | T: 20 mm | C: 62 kN | C0: 89.5 kN | Mass: 0.379 kg
32011XJ d: 55 mm | D: 90 mm | T: 23 mm | C: 79.5 kN | C0: 119 kN | Mass: 0.567 kg
32012XJ d: 60 mm | D: 95 mm | T: 23 mm | C: 84.5 kN | C0: 128 kN | Mass: 0.607 kg
32018XJ d: 90 mm | D: 140 mm | T: 32 mm | C: 173 kN | C0: 273 kN | Mass: 1.78 kg
32013XJg d: 65 mm | D: 100 mm | T: 23 mm | C: 87.6 kN | C0: 134.3 kN
Tapered Roller BearingsKBC Bearings
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 320 X Series Tapered Roller Bearings (Metric)

Brand KBC Bearings·Tapered Roller Bearings

Available part numbers (14)

32004XJ, 32005XJ, 320/28XJ, 32007XJF1, 32006XJ, 32007XJ, 32008XJ, 32008XJh, 32009XJ, 32010XJ + 4 more — see full table ↓

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
32004XJd: 20 mm | D: 42 mm | T: 15 mm | C: 25.8 kN | C0: 28.3 kN | Mass: 0.097 kg
32005XJd: 25 mm | D: 47 mm | T: 15 mm | C: 27.5 kN | C0: 34.2 kN | Mass: 0.116 kg
320/28XJd: 28 mm | D: 52 mm | T: 16 mm | C: 33 kN | C0: 40.5 kN | Mass: 0.146 kg
32007XJF1d: 28 mm | D: 62 mm | T: 18 mm | C: 42.5 kN | C0: 56 kN | Mass: 0.274 kg
32006XJd: 30 mm | D: 55 mm | T: 17 mm | C: 35.5 kN | C0: 44.5 kN | Mass: 0.172 kg
32007XJd: 35 mm | D: 62 mm | T: 18 mm | C: 42.5 kN | C0: 56 kN | Mass: 0.229 kg
32008XJd: 40 mm | D: 68 mm | T: 19 mm | C: 51.5 kN | C0: 67 kN | Mass: 0.279 kg
32008XJhd: 40 mm | D: 68 mm | T: 19 mm | C: 50.5 kN | C0: 67 kN | Mass: 0.334 kg
32009XJd: 45 mm | D: 75 mm | T: 20 mm | C: 57 kN | C0: 78 kN | Mass: 0.353 kg
32010XJd: 50 mm | D: 80 mm | T: 20 mm | C: 62 kN | C0: 89.5 kN | Mass: 0.379 kg
32011XJd: 55 mm | D: 90 mm | T: 23 mm | C: 79.5 kN | C0: 119 kN | Mass: 0.567 kg
32012XJd: 60 mm | D: 95 mm | T: 23 mm | C: 84.5 kN | C0: 128 kN | Mass: 0.607 kg
32018XJd: 90 mm | D: 140 mm | T: 32 mm | C: 173 kN | C0: 273 kN | Mass: 1.78 kg
32013XJgd: 65 mm | D: 100 mm | T: 23 mm | C: 87.6 kN | C0: 134.3 kN
