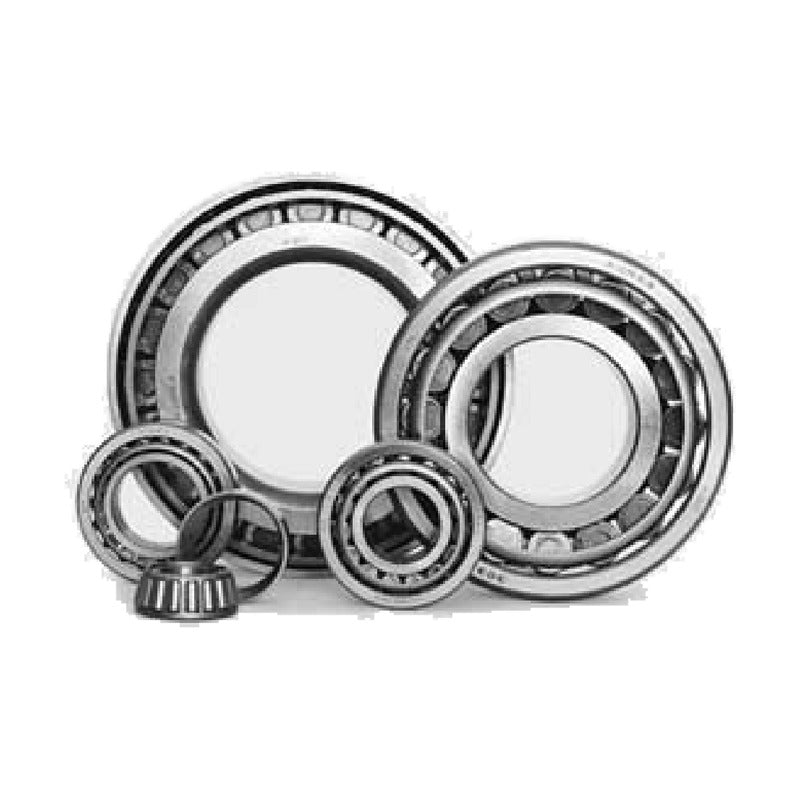

KBC 322 Series Tapered Roller Bearings (Metric)

KBC 322 Series Tapered Roller Bearings (Metric)

KBC single-row metric tapered roller bearings of the light wide series 322 to ISO 355 and KS B 2027. ISO 355 dimension series codes are printed in the catalogue for most sizes.

Key features

  • Separable cone (inner ring with rollers and cage) and cup (outer ring)
  • Carries combined radial and one-direction axial loads
  • Suffix J: dimensions per ISO 355; C / D: steeper contact angle
  • Pressed steel cage as standard
  • Usually mounted in pairs, adjusted against a second bearing

Specifications

Rows Single row
Dimensions Metric, ISO 355 / KS B 2027
Contact angle codes C approx. 20 deg, D approx. 28 deg
Source KBC Rolling Bearings catalogue GB 41 500, p. 180-187; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
32204 d: 20 mm | D: 47 mm | T: 19.25 mm | C: 37 kN | C0: 40 kN | Mass: 0.16 kg
32204J d: 20 mm | D: 47 mm | T: 19.25 mm | C: 37 kN | C0: 40 kN | Mass: 0.16 kg
32205 d: 25 mm | D: 52 mm | T: 19.25 mm | C: 38 kN | C0: 44 kN | Mass: 0.186 kg
32205C d: 25 mm | D: 52 mm | T: 19.25 mm | C: 35 kN | C0: 42 kN | Mass: 0.189 kg
322/28 d: 28 mm | D: 58 mm | T: 20.25 mm | C: 44.5 kN | C0: 52 kN | Mass: 0.242 kg
32206J d: 30 mm | D: 62 mm | T: 21.25 mm | C: 55.5 kN | C0: 65.5 kN | Mass: 0.296 kg
32206C d: 30 mm | D: 62 mm | T: 21.25 mm | C: 50.5 kN | C0: 59 kN | Mass: 0.293 kg
322/32 d: 32 mm | D: 65 mm | T: 22.25 mm | C: 55 kN | C0: 65.5 kN | Mass: 0.335 kg
32207C d: 35 mm | D: 72 mm | T: 24.25 mm | C: 59.5 kN | C0: 71.5 kN | Mass: 0.441 kg
32207J d: 35 mm | D: 72 mm | T: 24.25 mm | C: 70.5 kN | C0: 84 kN | Mass: 0.455 kg
32208J d: 40 mm | D: 80 mm | T: 24.75 mm | C: 76.5 kN | C0: 91.5 kN | Mass: 0.547 kg
32209J d: 45 mm | D: 85 mm | T: 24.75 mm | C: 79 kN | C0: 95.5 kN | Mass: 0.601 kg
32210J d: 50 mm | D: 90 mm | T: 24.75 mm | C: 88 kN | C0: 110 kN | Mass: 0.642 kg
32211J d: 55 mm | D: 100 mm | T: 26.75 mm | C: 108 kN | C0: 138 kN | Mass: 0.857 kg
32212J d: 60 mm | D: 110 mm | T: 29.75 mm | C: 129 kN | C0: 167 kN | Mass: 1.18 kg
32213 d: 65 mm | D: 120 mm | T: 32.75 mm | C: 133 kN | C0: 168 kN | Mass: 1.58 kg
32213J d: 65 mm | D: 120 mm | T: 32.75 mm | C: 154 kN | C0: 198 kN | Mass: 1.55 kg
32214J d: 70 mm | D: 125 mm | T: 33.25 mm | C: 153 kN | C0: 203 kN | Mass: 1.64 kg
32215J d: 75 mm | D: 130 mm | T: 33.25 mm | C: 163 kN | C0: 216 kN | Mass: 1.72 kg
32217J d: 85 mm | D: 150 mm | T: 38.5 mm | C: 222 kN | C0: 305 kN | Mass: 2.63 kg
32218J d: 90 mm | D: 160 mm | T: 42.5 mm | C: 265 kN | C0: 366 kN | Mass: 3.312 kg
32219J d: 95 mm | D: 170 mm | T: 45.5 mm | C: 286 kN | C0: 395 kN | Mass: 4.21 kg
32203J d: 17 mm | D: 40 mm | T: 17.25 mm | C: 29 kN | C0: 30 kN | Mass: 0.108 kg
Tapered Roller BearingsKBC Bearings
23 product codes available in this family
