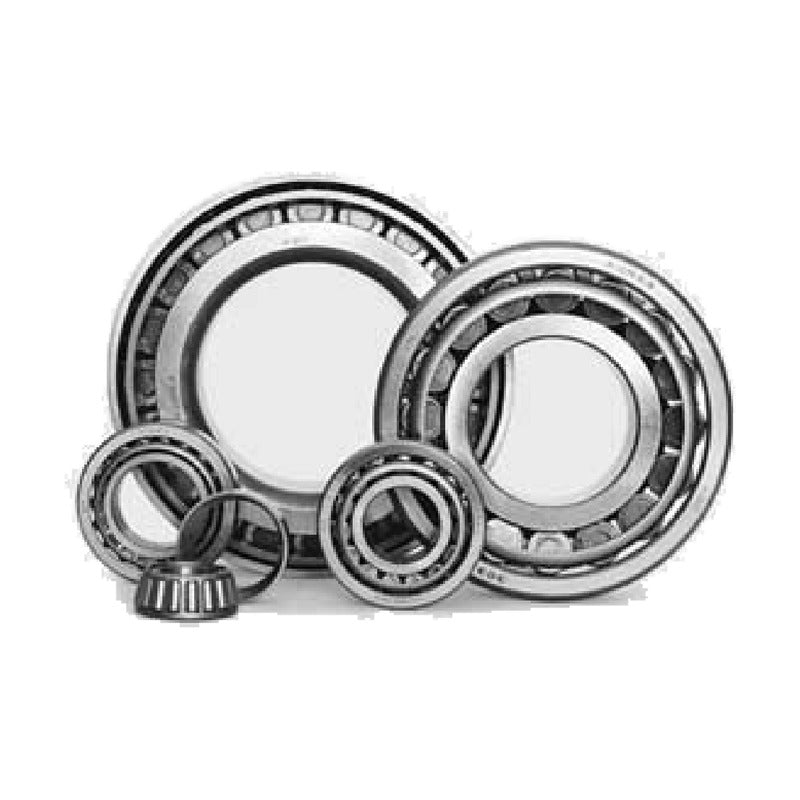

KBC 329 Series Tapered Roller Bearings (Metric, Thin Section)

KBC 329 Series Tapered Roller Bearings (Metric, Thin Section)

KBC single-row metric tapered roller bearings of the thin-section 329 dimension series. They offer a low cross-section for compact gear and pinion arrangements.

Key features

  • Separable cone (inner ring with rollers and cage) and cup (outer ring)
  • Carries combined radial and one-direction axial loads
  • Suffix J: dimensions per ISO 355; C / D: steeper contact angle
  • Low-section 329 dimension series to ISO 355

Specifications

Rows Single row
Dimensions Metric, ISO 355
Source KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.), p. 186-187
32913 d: 65 mm | D: 90 mm | T: 17 mm | C: 50.5 kN | C0: 85.3 kN
32914JHL1 d: 70 mm | D: 100 mm | T: 20 mm | C: 71.3 kN | C0: 115.6 kN
32915J d: 75 mm | D: 105 mm | T: 20 mm | C: 73.6 kN | C0: 119.5 kN
Tapered Roller BearingsKBC Bearings
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 329 Series Tapered Roller Bearings (Metric, Thin Section)

Brand KBC Bearings·Tapered Roller Bearings

Available part numbers (3)

32913, 32914JHL1, 32915J

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
32913d: 65 mm | D: 90 mm | T: 17 mm | C: 50.5 kN | C0: 85.3 kN
32914JHL1d: 70 mm | D: 100 mm | T: 20 mm | C: 71.3 kN | C0: 115.6 kN
32915Jd: 75 mm | D: 105 mm | T: 20 mm | C: 73.6 kN | C0: 119.5 kN
