KBC 511 Series Single Direction Thrust Ball Bearings

KBC 511 Series Single Direction Thrust Ball Bearings

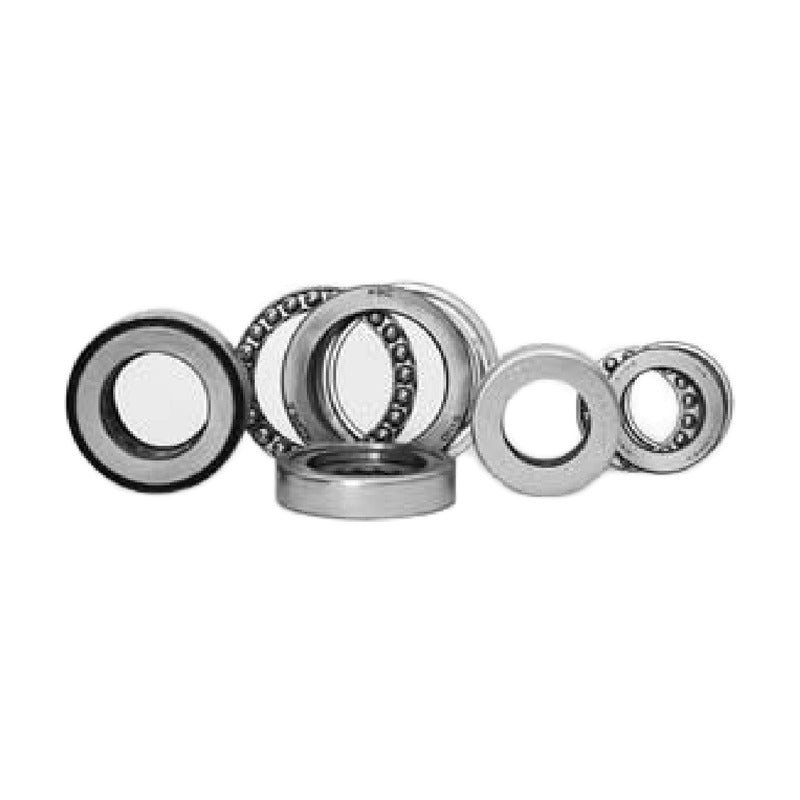

KBC 511 series single-direction thrust ball bearings consisting of shaft washer, housing washer and ball-and-cage assembly. They carry axial loads in one direction only.

Key features

  • Separable design: shaft washer, housing washer, ball and cage
  • Axial load in one direction
  • Pressed steel cage
  • Dimensions to ISO / KS boundary plans

Specifications

Series 511
Direction Single direction
Source KBC Rolling Bearings catalogue GB 41 500, p. 210-211
51103 d: 17 mm | D: 30 mm | H: 9 mm | C: 11.4 kN | C0: 19.5 kN | Speed (grease): 6000 rpm
51104 d: 20 mm | D: 35 mm | H: 10 mm | C: 15.1 kN | C0: 26.6 kN | Speed (grease): 5300 rpm
51106 d: 30 mm | D: 47 mm | H: 11 mm | C: 20.6 kN | C0: 42 kN | Speed (grease): 4300 rpm
51107 d: 35 mm | D: 52 mm | H: 12 mm | C: 22.1 kN | C0: 49.5 kN | Speed (grease): 4000 rpm
51108 d: 40 mm | D: 60 mm | H: 13 mm | C: 27.1 kN | C0: 63 kN | Speed (grease): 3600 rpm
51110 d: 50 mm | D: 70 mm | H: 14 mm | C: 29 kN | C0: 75.5 kN | Speed (grease): 3200 rpm
Thrust BearingsKBC Bearings
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 511 Series Single Direction Thrust Ball Bearings

Brand KBC Bearings·Thrust Bearings

Available part numbers (6)

51103, 51104, 51106, 51107, 51108, 51110

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
51103d: 17 mm | D: 30 mm | H: 9 mm | C: 11.4 kN | C0: 19.5 kN | Speed (grease): 6000 rpm
51104d: 20 mm | D: 35 mm | H: 10 mm | C: 15.1 kN | C0: 26.6 kN | Speed (grease): 5300 rpm
51106d: 30 mm | D: 47 mm | H: 11 mm | C: 20.6 kN | C0: 42 kN | Speed (grease): 4300 rpm
51107d: 35 mm | D: 52 mm | H: 12 mm | C: 22.1 kN | C0: 49.5 kN | Speed (grease): 4000 rpm
51108d: 40 mm | D: 60 mm | H: 13 mm | C: 27.1 kN | C0: 63 kN | Speed (grease): 3600 rpm
51110d: 50 mm | D: 70 mm | H: 14 mm | C: 29 kN | C0: 75.5 kN | Speed (grease): 3200 rpm
