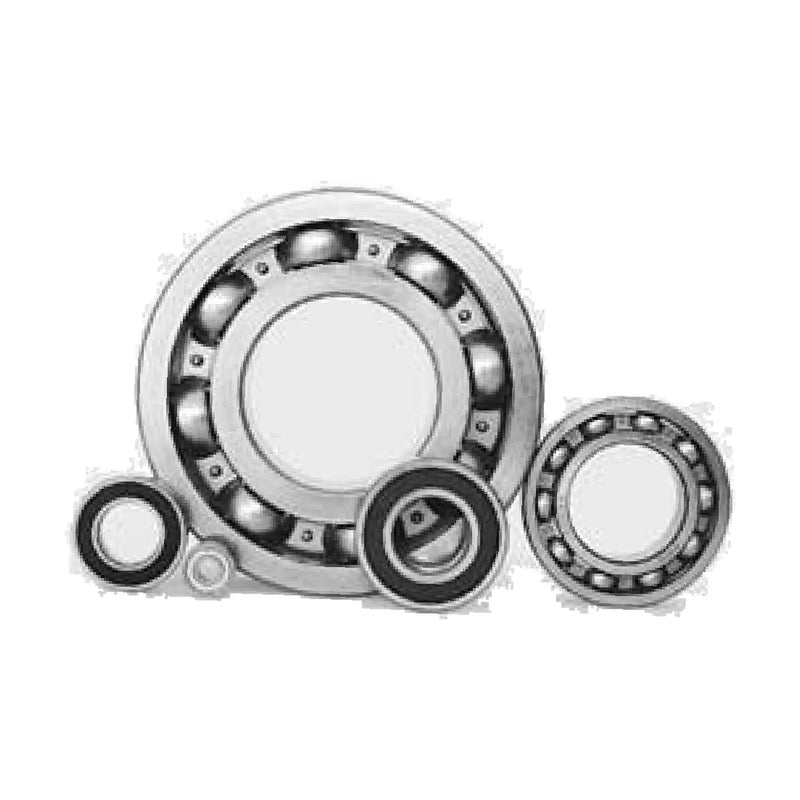

KBC 60 Series Deep Groove Ball Bearings (Open, ZZ, UU, DD)

KBC 60 Series Deep Groove Ball Bearings (Open, ZZ, UU, DD)

KBC 60 series single-row deep groove ball bearings in open, shielded (ZZ) and sealed (UU, DD) designs. The lineup also includes KBC variants with high-capacity (HC), non-creep (EC) or modified-dimension suffixes.

Key features

  • Single-row deep groove design carries radial and moderate axial loads in both directions
  • Open, ZZ (two shields), UU (two non-contact seals) and DD (two contact seals) versions
  • Sealed versions are greased for life by the manufacturer
  • Pressed steel cage as standard; polyamide cages available on request
  • Suited to high speeds; dimensions to ISO / KS boundary plans

Specifications

Series 60 (Extra-light series, bore 8-90 mm)
Cage Pressed steel (standard)
Seal / shield codes ZZ shields, UU non-contact, DD contact
Suffix h / F1 / F2 Non-standard width / bore / OD
Prefix EC / HC Non-creep / high load capacity
Standard KS B 2023
Source KBC Rolling Bearings catalogue GB 41 500, p. 136-157; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
608 d: 8 mm | D: 22 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
608ZZ1 d: 8 mm | D: 22 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
608UUG d: 8 mm | D: 22 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
608DDG d: 8 mm | D: 22 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 28000 rpm
6000 d: 10 mm | D: 26 mm | B: 8 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 30000 rpm
6000ZZ d: 10 mm | D: 26 mm | B: 8 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 30000 rpm
6000UU d: 10 mm | D: 26 mm | B: 8 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 30000 rpm
6000DD d: 10 mm | D: 26 mm | B: 8 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 22000 rpm
EC6000DDF2h d: 10 mm | D: 27 mm | B: 11 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 19000 rpm
6001 d: 12 mm | D: 28 mm | B: 8 mm | C: 5.1 kN | C0: 2.37 kN | Speed (grease): 28000 rpm
6001ZZ d: 12 mm | D: 28 mm | B: 8 mm | C: 5.1 kN | C0: 2.37 kN | Speed (grease): 28000 rpm
6001UU d: 12 mm | D: 28 mm | B: 8 mm | C: 5.1 kN | C0: 2.37 kN | Speed (grease): 28000 rpm
6001DD d: 12 mm | D: 28 mm | B: 8 mm | C: 5.1 kN | C0: 2.37 kN | Speed (grease): 18000 rpm
6002 d: 15 mm | D: 32 mm | B: 9 mm | C: 5.6 kN | C0: 2.84 kN | Speed (grease): 24000 rpm
6002ZZ d: 15 mm | D: 32 mm | B: 9 mm | C: 5.6 kN | C0: 2.84 kN | Speed (grease): 24000 rpm
6002UU d: 15 mm | D: 32 mm | B: 9 mm | C: 5.6 kN | C0: 2.84 kN | Speed (grease): 24000 rpm
6002DD d: 15 mm | D: 32 mm | B: 9 mm | C: 5.6 kN | C0: 2.84 kN | Speed (grease): 15000 rpm
EC6002DD d: 15 mm | D: 32 mm | B: 9 mm | C: 5.6 kN | C0: 2.84 kN | Speed (grease): 15000 rpm
6003 d: 17 mm | D: 35 mm | B: 10 mm | C: 6 kN | C0: 3.25 kN | Speed (grease): 22000 rpm
6003ZZ d: 17 mm | D: 35 mm | B: 10 mm | C: 6 kN | C0: 3.25 kN | Speed (grease): 22000 rpm
6003UU d: 17 mm | D: 35 mm | B: 10 mm | C: 6 kN | C0: 3.25 kN | Speed (grease): 22000 rpm
6003DD d: 17 mm | D: 35 mm | B: 10 mm | C: 6 kN | C0: 3.25 kN | Speed (grease): 13000 rpm
6004 d: 20 mm | D: 42 mm | B: 12 mm | C: 9.4 kN | C0: 5 kN | Speed (grease): 18000 rpm
6004ZZ d: 20 mm | D: 42 mm | B: 12 mm | C: 9.4 kN | C0: 5 kN | Speed (grease): 18000 rpm
6004UU d: 20 mm | D: 42 mm | B: 12 mm | C: 9.4 kN | C0: 5 kN | Speed (grease): 18000 rpm
6004DD d: 20 mm | D: 42 mm | B: 12 mm | C: 9.4 kN | C0: 5 kN | Speed (grease): 11000 rpm
6005 d: 25 mm | D: 47 mm | B: 12 mm | C: 10.1 kN | C0: 5.8 kN | Speed (grease): 15000 rpm
6005ZZ d: 25 mm | D: 47 mm | B: 12 mm | C: 10.1 kN | C0: 5.8 kN | Speed (grease): 15000 rpm
6005UU d: 25 mm | D: 47 mm | B: 12 mm | C: 10.1 kN | C0: 5.8 kN | Speed (grease): 15000 rpm
6005DD d: 25 mm | D: 47 mm | B: 12 mm | C: 10.1 kN | C0: 5.8 kN | Speed (grease): 9500 rpm
6006UUh1 d: 30 mm | D: 55 mm | B: 11.6 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 13000 rpm
6006 d: 30 mm | D: 55 mm | B: 13 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 13000 rpm
6006ZZ d: 30 mm | D: 55 mm | B: 13 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 13000 rpm
6006DD d: 30 mm | D: 55 mm | B: 13 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 8000 rpm
6007 d: 35 mm | D: 62 mm | B: 14 mm | C: 16 kN | C0: 10.3 kN | Speed (grease): 11000 rpm
6007ZZ d: 35 mm | D: 62 mm | B: 14 mm | C: 16 kN | C0: 10.3 kN | Speed (grease): 11000 rpm
6007UU d: 35 mm | D: 62 mm | B: 14 mm | C: 16 kN | C0: 10.3 kN | Speed (grease): 11000 rpm
6007DD d: 35 mm | D: 62 mm | B: 14 mm | C: 16 kN | C0: 10.3 kN | Speed (grease): 6700 rpm
6008 d: 40 mm | D: 68 mm | B: 15 mm | C: 16.8 kN | C0: 11.5 kN | Speed (grease): 10000 rpm
6008ZZ d: 40 mm | D: 68 mm | B: 15 mm | C: 16.8 kN | C0: 11.5 kN | Speed (grease): 10000 rpm
6008UU d: 40 mm | D: 68 mm | B: 15 mm | C: 16.8 kN | C0: 11.5 kN | Speed (grease): 10000 rpm
6008DD d: 40 mm | D: 68 mm | B: 15 mm | C: 16.8 kN | C0: 11.5 kN | Speed (grease): 6000 rpm
6009 d: 45 mm | D: 75 mm | B: 16 mm | C: 19.9 kN | C0: 14 kN | Speed (grease): 9000 rpm
6009ZZ d: 45 mm | D: 75 mm | B: 16 mm | C: 19.9 kN | C0: 14 kN | Speed (grease): 9000 rpm
6009UU d: 45 mm | D: 75 mm | B: 16 mm | C: 19.9 kN | C0: 14 kN | Speed (grease): 9000 rpm
6009DD d: 45 mm | D: 75 mm | B: 16 mm | C: 19.9 kN | C0: 14 kN | Speed (grease): 5300 rpm
6009F2 d: 45 mm | D: 80 mm | B: 16 mm | C: 27.6 kN | C0: 17.9 kN | Speed (grease): 8800 rpm
6010 d: 50 mm | D: 80 mm | B: 16 mm | C: 20.8 kN | C0: 15.4 kN | Speed (grease): 8500 rpm
6010ZZ d: 50 mm | D: 80 mm | B: 16 mm | C: 20.8 kN | C0: 15.4 kN | Speed (grease): 8500 rpm
6010UU d: 50 mm | D: 80 mm | B: 16 mm | C: 20.8 kN | C0: 15.4 kN | Speed (grease): 8500 rpm
6010DD d: 50 mm | D: 80 mm | B: 16 mm | C: 20.8 kN | C0: 15.4 kN | Speed (grease): 4800 rpm
6011 d: 55 mm | D: 90 mm | B: 18 mm | C: 31 kN | C0: 22.5 kN | Speed (grease): 7500 rpm
6011ZZ d: 55 mm | D: 90 mm | B: 18 mm | C: 31 kN | C0: 22.5 kN | Speed (grease): 7500 rpm
6011UU d: 55 mm | D: 90 mm | B: 18 mm | C: 31 kN | C0: 22.5 kN | Speed (grease): 7500 rpm
6011DD d: 55 mm | D: 90 mm | B: 18 mm | C: 31 kN | C0: 22.5 kN | Speed (grease): 4500 rpm
6012 d: 60 mm | D: 95 mm | B: 18 mm | C: 29.4 kN | C0: 23.2 kN | Speed (grease): 7100 rpm
6012ZZ d: 60 mm | D: 95 mm | B: 18 mm | C: 29.4 kN | C0: 23.2 kN | Speed (grease): 7100 rpm
6012UU d: 60 mm | D: 95 mm | B: 18 mm | C: 29.4 kN | C0: 23.2 kN | Speed (grease): 7100 rpm
6012DD d: 60 mm | D: 95 mm | B: 18 mm | C: 29.4 kN | C0: 23.2 kN | Speed (grease): 4000 rpm
6013 d: 65 mm | D: 100 mm | B: 18 mm | C: 30.5 kN | C0: 25.2 kN | Speed (grease): 6700 rpm
6013ZZ d: 65 mm | D: 100 mm | B: 18 mm | C: 30.5 kN | C0: 25.2 kN | Speed (grease): 6700 rpm
6013UU d: 65 mm | D: 100 mm | B: 18 mm | C: 30.5 kN | C0: 25.2 kN | Speed (grease): 6700 rpm
6013DD d: 65 mm | D: 100 mm | B: 18 mm | C: 30.5 kN | C0: 25.2 kN | Speed (grease): 4000 rpm
6014 d: 70 mm | D: 110 mm | B: 20 mm | C: 38 kN | C0: 31 kN | Speed (grease): 6000 rpm
6014ZZ d: 70 mm | D: 110 mm | B: 20 mm | C: 38 kN | C0: 31 kN | Speed (grease): 6000 rpm
6014UU d: 70 mm | D: 110 mm | B: 20 mm | C: 38 kN | C0: 31 kN | Speed (grease): 6000 rpm
6014DD d: 70 mm | D: 110 mm | B: 20 mm | C: 38 kN | C0: 31 kN | Speed (grease): 3600 rpm
6015 d: 75 mm | D: 115 mm | B: 20 mm | C: 39.5 kN | C0: 33.5 kN | Speed (grease): 5600 rpm
6015ZZ d: 75 mm | D: 115 mm | B: 20 mm | C: 39.5 kN | C0: 33.5 kN | Speed (grease): 5600 rpm
6015DD d: 75 mm | D: 115 mm | B: 20 mm | C: 39.5 kN | C0: 33.5 kN | Speed (grease): 3400 rpm
6016 d: 80 mm | D: 125 mm | B: 22 mm | C: 47.5 kN | C0: 40 kN | Speed (grease): 5300 rpm
6016ZZ d: 80 mm | D: 125 mm | B: 22 mm | C: 47.5 kN | C0: 40 kN | Speed (grease): 5300 rpm
6016DD d: 80 mm | D: 125 mm | B: 22 mm | C: 47.5 kN | C0: 40 kN | Speed (grease): 3200 rpm
6017 d: 85 mm | D: 130 mm | B: 22 mm | C: 49.5 kN | C0: 43 kN | Speed (grease): 5000 rpm
6017ZZ d: 85 mm | D: 130 mm | B: 22 mm | C: 49.5 kN | C0: 43 kN | Speed (grease): 5000 rpm
6017DD d: 85 mm | D: 130 mm | B: 22 mm | C: 49.5 kN | C0: 43 kN | Speed (grease): 3000 rpm
6018 d: 90 mm | D: 140 mm | B: 24 mm | C: 58 kN | C0: 50 kN | Speed (grease): 4800 rpm
6018ZZ d: 90 mm | D: 140 mm | B: 24 mm | C: 58 kN | C0: 50 kN | Speed (grease): 4800 rpm
6018DD d: 90 mm | D: 140 mm | B: 24 mm | C: 58 kN | C0: 50 kN | Speed (grease): 2800 rpm
608DDF2 d: 8 mm | D: 21.855 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
608ZZ1F2 d: 8 mm | D: 21.855 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
608ADDK d: 8 mm | D: 22 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
608F21 d: 8 mm | D: 35 mm | B: 7 mm | C: 3.3 kN | C0: 1.37 kN | Speed (grease): 34000 rpm
EC6000DDKA2 d: 10 mm | D: 26 mm | B: 8 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 30000 rpm
EC6000F2h d: 10 mm | D: 27 mm | B: 11 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 30000 rpm
60/22ZZF1 d: 15.1 mm | D: 44 mm | B: 12 mm | C: 9.4 kN | C0: 5 kN | Speed (grease): 17000 rpm
6004DDK2 d: 20 mm | D: 42 mm | B: 12 mm | C: 9.4 kN | C0: 5 kN | Speed (grease): 11000 rpm
60/22DD d: 22 mm | D: 44 mm | B: 12 mm | C: 9.37 kN | C0: 5 kN | Speed (grease): 17000 rpm
6006ZZF12 d: 25 mm | D: 55 mm | B: 13 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 12000 rpm
6006F11 d: 28 mm | D: 55 mm | B: 13 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 8000 rpm
60/28F1 d: 29 mm | D: 52 mm | B: 12 mm | C: 12.4 kN | C0: 7.37 kN | Speed (grease): 13000 rpm
6006h1 d: 30 mm | D: 55 mm | B: 12 mm | C: 13.2 kN | C0: 8.3 kN | Speed (grease): 13000 rpm
60/32 d: 32 mm | D: 58 mm | B: 13 mm | C: 15 kN | C0: 9.1 kN | Speed (grease): 12000 rpm
6011F1h d: 45 mm | D: 90 mm | B: 17 mm | C: 30.8 kN | C0: 22.6 kN | Speed (grease): 6800 rpm
6010DDh1 d: 50 mm | D: 84.4 mm | B: 19 mm | C: 20.8 kN | C0: 15.3 kN | Speed (grease): 7700 rpm
6012DDF2h1 d: 60 mm | D: 101 mm | B: 18 mm | C: 29.5 kN | C0: 23.1 kN | Speed (grease): 6500 rpm
6020ZZ d: 100 mm | D: 150 mm | B: 24 mm | C: 60.15 kN | C0: 54.2 kN | Speed (grease): 4000 rpm
6024ZZ d: 120 mm | D: 180 mm | B: 28 mm | C: 88.1 kN | C0: 79.7 kN | Speed (grease): 3400 rpm
