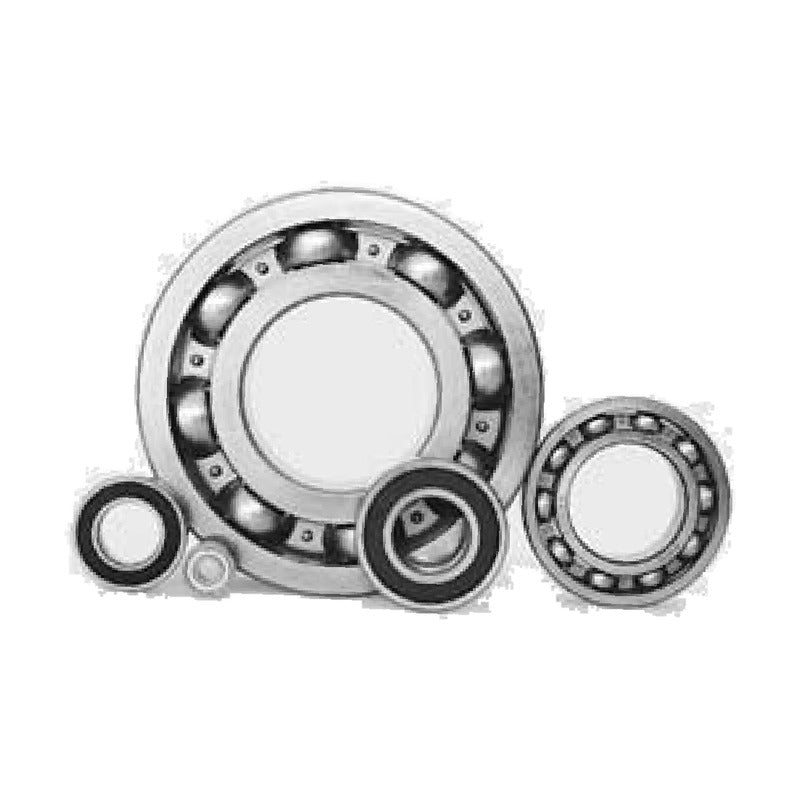

KBC 62 Series Deep Groove Ball Bearings (Open, ZZ, UU, DD)

KBC 62 Series Deep Groove Ball Bearings (Open, ZZ, UU, DD)

KBC 62 series single-row deep groove ball bearings in open, shielded (ZZ) and sealed (UU, DD) designs. The lineup also includes KBC variants with high-capacity (HC), non-creep (EC) or modified-dimension suffixes.

Key features

  • Single-row deep groove design carries radial and moderate axial loads in both directions
  • Open, ZZ (two shields), UU (two non-contact seals) and DD (two contact seals) versions
  • Sealed versions are greased for life by the manufacturer
  • Pressed steel cage as standard; polyamide cages available on request
  • Suited to high speeds; dimensions to ISO / KS boundary plans

Specifications

Series 62 (Light series, bore 10-85 mm)
Cage Pressed steel (standard)
Seal / shield codes ZZ shields, UU non-contact, DD contact
Suffix h / F1 / F2 Non-standard width / bore / OD
Prefix EC / HC Non-creep / high load capacity
Standard KS B 2023
Source KBC Rolling Bearings catalogue GB 41 500, p. 136-157; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
6200h d: 10 mm | D: 30 mm | B: 8 mm | C: 5.1 kN | C0: 2.39 kN | Speed (grease): 24000 rpm
6200 d: 10 mm | D: 30 mm | B: 9 mm | C: 5.1 kN | C0: 2.39 kN | Speed (grease): 24000 rpm
6200ZZ d: 10 mm | D: 30 mm | B: 9 mm | C: 5.1 kN | C0: 2.39 kN | Speed (grease): 24000 rpm
6200UU d: 10 mm | D: 30 mm | B: 9 mm | C: 5.1 kN | C0: 2.39 kN | Speed (grease): 24000 rpm
6200DD d: 10 mm | D: 30 mm | B: 9 mm | C: 5.1 kN | C0: 2.39 kN | Speed (grease): 18000 rpm
6201 d: 12 mm | D: 32 mm | B: 10 mm | C: 6.8 kN | C0: 3.05 kN | Speed (grease): 22000 rpm
6201ZZ d: 12 mm | D: 32 mm | B: 10 mm | C: 6.8 kN | C0: 3.05 kN | Speed (grease): 22000 rpm
6201UU d: 12 mm | D: 32 mm | B: 10 mm | C: 6.8 kN | C0: 3.05 kN | Speed (grease): 22000 rpm
6201DD d: 12 mm | D: 32 mm | B: 10 mm | C: 6.8 kN | C0: 3.05 kN | Speed (grease): 17000 rpm
6201ZZF1 d: 12.7 mm | D: 32 mm | B: 10 mm | C: 6.8 kN | C0: 3.05 kN | Speed (grease): 22000 rpm
6202 d: 15 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6202ZZ d: 15 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN
6202UU d: 15 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6202DD d: 15 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 14000 rpm
EC6202DD d: 15 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 14000 rpm
6202ZZF2 d: 15 mm | D: 40 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6202UUF2 d: 15 mm | D: 40 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6202DDF11 d: 15.875 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 14000 rpm
6203DDF1 d: 15.875 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 12000 rpm
6202DDF1 d: 16 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 14000 rpm
6203 d: 17 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 17000 rpm
6203ZZ d: 17 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 17000 rpm
EC6203ZZ d: 17 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 17000 rpm
6203UU d: 17 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 17000 rpm
6203DD d: 17 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 12000 rpm
6203DDF2 d: 17 mm | D: 42 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 12000 rpm
6204 d: 20 mm | D: 47 mm | B: 14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 15000 rpm
HC6204 d: 20 mm | D: 47 mm | B: 14 mm | C: 15.7 kN | C0: 7.7 kN | Speed (grease): 15000 rpm
6204ZZ d: 20 mm | D: 47 mm | B: 14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 15000 rpm
6204UU d: 20 mm | D: 47 mm | B: 14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 15000 rpm
6204DD d: 20 mm | D: 47 mm | B: 14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 11000 rpm
62/22 d: 22 mm | D: 50 mm | B: 14 mm | C: 12.9 kN | C0: 6.8 kN | Speed (grease): 14000 rpm
62/22DD d: 22 mm | D: 50 mm | B: 14 mm | C: 12.9 kN | C0: 6.8 kN | Speed (grease): 9500 rpm
6205 d: 25 mm | D: 52 mm | B: 15 mm | C: 14 kN | C0: 7.9 kN | Speed (grease): 13000 rpm
6205ZZ d: 25 mm | D: 52 mm | B: 15 mm | C: 14 kN | C0: 7.9 kN | Speed (grease): 13000 rpm
6205UU d: 25 mm | D: 52 mm | B: 15 mm | C: 14 kN | C0: 7.9 kN | Speed (grease): 13000 rpm
6205DD d: 25 mm | D: 52 mm | B: 15 mm | C: 14 kN | C0: 7.9 kN | Speed (grease): 9000 rpm
HC6205DD d: 25 mm | D: 52 mm | B: 15 mm | C: 17.7 kN | C0: 9.35 kN | Speed (grease): 9100 rpm
62/28DDF1 d: 27 mm | D: 58 mm | B: 16 mm | C: 16.6 kN | C0: 95.5 kN | Speed (grease): 8000 rpm
62/28 d: 28 mm | D: 58 mm | B: 16 mm | C: 16.6 kN | C0: 9.55 kN | Speed (grease): 12000 rpm
62/28DD d: 28 mm | D: 58 mm | B: 16 mm | C: 16.6 kN | C0: 9.55 kN | Speed (grease): 8000 rpm
HC62/28DD d: 28 mm | D: 58 mm | B: 16 mm | C: 17.9 kN | C0: 9.75 kN | Speed (grease): 8200 rpm
6206 d: 30 mm | D: 62 mm | B: 16 mm | C: 19.4 kN | C0: 11.3 kN | Speed (grease): 11000 rpm
HC6206 d: 30 mm | D: 62 mm | B: 16 mm | C: 23.4 kN | C0: 12.9 kN | Speed (grease): 11000 rpm
6206ZZ d: 30 mm | D: 62 mm | B: 16 mm | C: 19.4 kN | C0: 11.3 kN | Speed (grease): 11000 rpm
6206UU d: 30 mm | D: 62 mm | B: 16 mm | C: 19.4 kN | C0: 11.3 kN | Speed (grease): 11000 rpm
6206DD d: 30 mm | D: 62 mm | B: 16 mm | C: 19.4 kN | C0: 11.3 kN | Speed (grease): 7500 rpm
HC6206DDh d: 30 mm | D: 62 mm | B: 17 mm | C: 23.4 kN | C0: 12.9 kN | Speed (grease): 7700 rpm
6207h2 d: 35 mm | D: 72 mm | B: 16 mm | C: 25.7 kN | C0: 15.4 kN | Speed (grease): 9500 rpm
6207 d: 35 mm | D: 72 mm | B: 17 mm | C: 25.7 kN | C0: 15.4 kN | Speed (grease): 9500 rpm
6207ZZ d: 35 mm | D: 72 mm | B: 17 mm | C: 25.7 kN | C0: 15.4 kN | Speed (grease): 9500 rpm
6207UU d: 35 mm | D: 72 mm | B: 17 mm | C: 25.7 kN | C0: 15.4 kN | Speed (grease): 9500 rpm
6207DD d: 35 mm | D: 72 mm | B: 17 mm | C: 25.7 kN | C0: 15.4 kN | Speed (grease): 6300 rpm
6207h d: 35 mm | D: 72 mm | B: 18.25 mm | C: 25.7 kN | C0: 15.4 kN | Speed (grease): 9500 rpm
6208 d: 40 mm | D: 80 mm | B: 18 mm | C: 29.1 kN | C0: 17.8 kN | Speed (grease): 8500 rpm
HC6208 d: 40 mm | D: 80 mm | B: 18 mm | C: 32.5 kN | C0: 20 kN | Speed (grease): 8400 rpm
6208ZZ d: 40 mm | D: 80 mm | B: 18 mm | C: 29.1 kN | C0: 17.8 kN | Speed (grease): 8500 rpm
6208UU d: 40 mm | D: 80 mm | B: 18 mm | C: 29.1 kN | C0: 17.8 kN | Speed (grease): 8500 rpm
6208DD d: 40 mm | D: 80 mm | B: 18 mm | C: 29.1 kN | C0: 17.8 kN | Speed (grease): 5600 rpm
HC6209DDF1h d: 40 mm | D: 85 mm | B: 20 mm | C: 36.5 kN | C0: 22.6 kN | Speed (grease): 6200 rpm
6209 d: 45 mm | D: 85 mm | B: 19 mm | C: 32.5 kN | C0: 20.4 kN | Speed (grease): 7500 rpm
6209ZZ d: 45 mm | D: 85 mm | B: 19 mm | C: 32.5 kN | C0: 20.4 kN | Speed (grease): 7500 rpm
6209UU d: 45 mm | D: 85 mm | B: 19 mm | C: 32.5 kN | C0: 20.4 kN | Speed (grease): 7500 rpm
6209DD d: 45 mm | D: 85 mm | B: 19 mm | C: 32.5 kN | C0: 20.4 kN | Speed (grease): 5300 rpm
6210 d: 50 mm | D: 90 mm | B: 20 mm | C: 35 kN | C0: 23.2 kN | Speed (grease): 7100 rpm
6210ZZ d: 50 mm | D: 90 mm | B: 20 mm | C: 35 kN | C0: 23.2 kN | Speed (grease): 7100 rpm
6210UU d: 50 mm | D: 90 mm | B: 20 mm | C: 35 kN | C0: 23.2 kN | Speed (grease): 7100 rpm
6210DD d: 50 mm | D: 90 mm | B: 20 mm | C: 35 kN | C0: 23.2 kN | Speed (grease): 4800 rpm
6211 d: 55 mm | D: 100 mm | B: 21 mm | C: 43.5 kN | C0: 29.2 kN | Speed (grease): 6300 rpm
6211ZZ d: 55 mm | D: 100 mm | B: 21 mm | C: 43.5 kN | C0: 29.2 kN | Speed (grease): 6300 rpm
6211UU d: 55 mm | D: 100 mm | B: 21 mm | C: 43.5 kN | C0: 29.2 kN | Speed (grease): 6300 rpm
6211DD d: 55 mm | D: 100 mm | B: 21 mm | C: 43.5 kN | C0: 29.2 kN | Speed (grease): 4300 rpm
6212 d: 60 mm | D: 110 mm | B: 22 mm | C: 52.5 kN | C0: 36 kN | Speed (grease): 5600 rpm
6212ZZ d: 60 mm | D: 110 mm | B: 22 mm | C: 52.5 kN | C0: 36 kN | Speed (grease): 5600 rpm
6212UU d: 60 mm | D: 110 mm | B: 22 mm | C: 52.5 kN | C0: 36 kN | Speed (grease): 5600 rpm
6212DD d: 60 mm | D: 110 mm | B: 22 mm | C: 52.5 kN | C0: 36 kN | Speed (grease): 3800 rpm
6213 d: 65 mm | D: 120 mm | B: 23 mm | C: 57 kN | C0: 38.5 kN | Speed (grease): 5300 rpm
6213ZZ d: 65 mm | D: 120 mm | B: 23 mm | C: 57 kN | C0: 38.5 kN | Speed (grease): 5300 rpm
6213DD d: 65 mm | D: 120 mm | B: 23 mm | C: 57 kN | C0: 38.5 kN | Speed (grease): 3600 rpm
6214 d: 70 mm | D: 125 mm | B: 24 mm | C: 62 kN | C0: 44 kN | Speed (grease): 5000 rpm
6214ZZ d: 70 mm | D: 125 mm | B: 24 mm | C: 62 kN | C0: 44 kN | Speed (grease): 5000 rpm
6214DD d: 70 mm | D: 125 mm | B: 24 mm | C: 62 kN | C0: 44 kN | Speed (grease): 3400 rpm
6215 d: 75 mm | D: 130 mm | B: 25 mm | C: 66 kN | C0: 49.5 kN | Speed (grease): 4800 rpm
6215ZZ d: 75 mm | D: 130 mm | B: 25 mm | C: 66 kN | C0: 49.5 kN | Speed (grease): 4800 rpm
6215DD d: 75 mm | D: 130 mm | B: 25 mm | C: 66 kN | C0: 49.5 kN | Speed (grease): 3200 rpm
6216 d: 80 mm | D: 140 mm | B: 26 mm | C: 77.5 kN | C0: 58.5 kN | Speed (grease): 4500 rpm
6216ZZ d: 80 mm | D: 140 mm | B: 26 mm | C: 77.5 kN | C0: 58.5 kN | Speed (grease): 4500 rpm
6216DD d: 80 mm | D: 140 mm | B: 26 mm | C: 77.5 kN | C0: 58.5 kN | Speed (grease): 3000 rpm
6217 d: 85 mm | D: 150 mm | B: 28 mm | C: 84 kN | C0: 62 kN | Speed (grease): 4300 rpm
6217ZZ d: 85 mm | D: 150 mm | B: 28 mm | C: 84 kN | C0: 62 kN | Speed (grease): 4300 rpm
6217DD d: 85 mm | D: 150 mm | B: 28 mm | C: 84 kN | C0: 62 kN | Speed (grease): 2800 rpm
6201F1 d: 12.7 mm | D: 32 mm | B: 10 mm | C: 6.8 kN | C0: 3.05 kN | Speed (grease): 22000 rpm
6202F2 d: 15 mm | D: 40 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6202F11 d: 15.875 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6203F1 d: 15.875 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 17000 rpm
6202F1 d: 16 mm | D: 35 mm | B: 11 mm | C: 7.65 kN | C0: 3.7 kN | Speed (grease): 20000 rpm
6203F2 d: 16 mm | D: 42 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 17000 rpm
6203ADDKV2 d: 17 mm | D: 40 mm | B: 12 mm | C: 9.55 kN | C0: 4.8 kN | Speed (grease): 12000 rpm
6204DDF11 d: 19.05 mm | D: 47 mm | B: 14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 15000 rpm
6204T2ZZh1 d: 20 mm | D: 47 mm | B: 34/14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 15000 rpm
6204UUF12 d: 21 mm | D: 47 mm | B: 14 mm | C: 12.8 kN | C0: 6.65 kN | Speed (grease): 15000 rpm
62/28F1 d: 27 mm | D: 58 mm | B: 16 mm | C: 16.6 kN | C0: 9.55 kN | Speed (grease): 12000 rpm
6206F1 d: 27 mm | D: 62 mm | B: 16 mm | C: 19.4 kN | C0: 11.3 kN | Speed (grease): 7500 rpm
6206DDF1 d: 27 mm | D: 62 mm | B: 16 mm | C: 19.4 kN | C0: 11.3 kN | Speed (grease): 11000 rpm
62/28UU d: 28 mm | D: 58 mm | B: 16 mm | C: 16.6 kN | C0: 9.55 kN | Speed (grease): 12000 rpm
62/32 d: 32 mm | D: 65 mm | B: 17 mm | C: 23.5 kN | C0: 13.1 kN | Speed (grease): 13100 rpm
HC6207DDh d: 35 mm | D: 72 mm | B: 18.25 mm | C: 29.9 kN | C0: 16.9 kN | Speed (grease): 10000 rpm
HC6209F1h d: 40 mm | D: 85 mm | B: 20 mm | C: 36.5 kN | C0: 22.6 kN | Speed (grease): 7500 rpm
6208F1 d: 41 mm | D: 80 mm | B: 18 mm | C: 29.1 kN | C0: 17.9 kN | Speed (grease): 8500 rpm
6213UU d: 65 mm | D: 120 mm | B: 23 mm | C: 57 kN | C0: 38.5 kN | Speed (grease): 5300 rpm
6218ZZ d: 90 mm | D: 160 mm | B: 30 mm | C: 95.95 kN | C0: 71.45 kN | Speed (grease): 4000 rpm
6222ZZ d: 110 mm | D: 200 mm | B: 38 mm | C: 144 kN | C0: 118 kN | Speed (grease): 3300 rpm
6224ZZ d: 120 mm | D: 215 mm | B: 40 mm | C: 155 kN | C0: 131 kN | Speed (grease): 3000 rpm
Deep Groove Ball BearingsKBC Bearings
113 product codes available in this family
