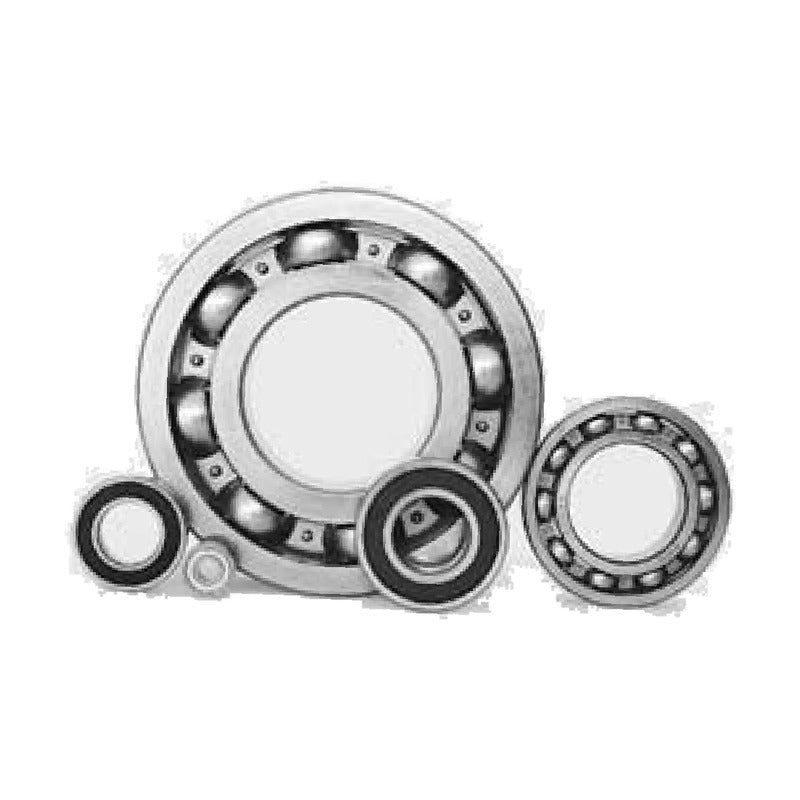

KBC 63 Series Deep Groove Ball Bearings (Open, ZZ, UU, DD)

KBC 63 Series Deep Groove Ball Bearings (Open, ZZ, UU, DD)

KBC 63 series single-row deep groove ball bearings in open, shielded (ZZ) and sealed (UU, DD) designs. The lineup also includes KBC variants with high-capacity (HC), non-creep (EC) or modified-dimension suffixes.

Key features

  • Single-row deep groove design carries radial and moderate axial loads in both directions
  • Open, ZZ (two shields), UU (two non-contact seals) and DD (two contact seals) versions
  • Sealed versions are greased for life by the manufacturer
  • Pressed steel cage as standard; polyamide cages available on request
  • Suited to high speeds; dimensions to ISO / KS boundary plans

Specifications

Series 63 (Medium series, bore 8-80 mm)
Cage Pressed steel (standard)
Seal / shield codes ZZ shields, UU non-contact, DD contact
Suffix h / F1 / F2 Non-standard width / bore / OD
Prefix EC / HC Non-creep / high load capacity
Standard KS B 2023
Source KBC Rolling Bearings catalogue GB 41 500, p. 136-157; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
638ZZ d: 8 mm | D: 28 mm | B: 9 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 28000 rpm
6300 d: 10 mm | D: 35 mm | B: 11 mm | C: 8.1 kN | C0: 3.45 kN | Speed (grease): 22000 rpm
6300ZZ d: 10 mm | D: 35 mm | B: 11 mm | C: 8.1 kN | C0: 3.45 kN | Speed (grease): 22000 rpm
6300UU d: 10 mm | D: 35 mm | B: 11 mm | C: 8.1 kN | C0: 3.45 kN | Speed (grease): 22000 rpm
6300DD d: 10 mm | D: 35 mm | B: 11 mm | C: 8.1 kN | C0: 3.45 kN | Speed (grease): 17000 rpm
6301 d: 12 mm | D: 37 mm | B: 12 mm | C: 9.7 kN | C0: 4.2 kN | Speed (grease): 20000 rpm
6301ZZ d: 12 mm | D: 37 mm | B: 12 mm | C: 9.7 kN | C0: 4.2 kN | Speed (grease): 20000 rpm
6301UU d: 12 mm | D: 37 mm | B: 12 mm | C: 9.7 kN | C0: 4.2 kN | Speed (grease): 20000 rpm
6301DD d: 12 mm | D: 37 mm | B: 12 mm | C: 9.7 kN | C0: 4.2 kN | Speed (grease): 16000 rpm
6302 d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 17000 rpm
HC6302 d: 15 mm | D: 42 mm | B: 13 mm | C: 13.3 kN | C0: 5.9 kN | Speed (grease): 18000 rpm
6302ZZ d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 17000 rpm
6302UU d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 17000 rpm
6302DD d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 13000 rpm
EC6302DD d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 13000 rpm
EC6302DDF1 d: 17 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 13000 rpm
6303 d: 17 mm | D: 47 mm | B: 14 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 15000 rpm
6303ZZ d: 17 mm | D: 47 mm | B: 14 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 15000 rpm
6303UU d: 17 mm | D: 47 mm | B: 14 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 15000 rpm
6303DD d: 17 mm | D: 47 mm | B: 14 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 11000 rpm
6303DDh d: 17 mm | D: 47 mm | B: 17 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 11000 rpm
6304DDF11 d: 17 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 11000 rpm
6304 d: 20 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 14000 rpm
6304ZZ d: 20 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 14000 rpm
6304UU d: 20 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 14000 rpm
6304DD d: 20 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 10000 rpm
6305DDF11 d: 20 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 8000 rpm
63/22h d: 22 mm | D: 56 mm | B: 15 mm | C: 18.5 kN | C0: 9.35 kN | Speed (grease): 13000 rpm
63/22 d: 22 mm | D: 56 mm | B: 16 mm | C: 18.5 kN | C0: 9.35 kN | Speed (grease): 13000 rpm
63/22DD d: 22 mm | D: 56 mm | B: 16 mm | C: 18.5 kN | C0: 9.35 kN | Speed (grease): 9500 rpm
6305 d: 25 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 11000 rpm
6305ZZ d: 25 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 11000 rpm
6305UU d: 25 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 11000 rpm
6305DD d: 25 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 8000 rpm
63/28DDF11 d: 27 mm | D: 68 mm | B: 18 mm | C: 26.7 kN | C0: 14 kN | Speed (grease): 7500 rpm
63/28 d: 28 mm | D: 68 mm | B: 18 mm | C: 26.7 kN | C0: 14 kN | Speed (grease): 10000 rpm
63/28DD d: 28 mm | D: 68 mm | B: 18 mm | C: 26.7 kN | C0: 14 kN | Speed (grease): 7500 rpm
HC6307F11 d: 28 mm | D: 80 mm | B: 21 mm | C: 39.5 kN | C0: 21.6 kN | Speed (grease): 9300 rpm
6306 d: 30 mm | D: 72 mm | B: 19 mm | C: 26.6 kN | C0: 15 kN | Speed (grease): 9500 rpm
HC6306 d: 30 mm | D: 72 mm | B: 19 mm | C: 32.5 kN | C0: 17.3 kN | Speed (grease): 9900 rpm
6306ZZ d: 30 mm | D: 72 mm | B: 19 mm | C: 26.6 kN | C0: 15 kN | Speed (grease): 9500 rpm
6306UU d: 30 mm | D: 72 mm | B: 19 mm | C: 26.6 kN | C0: 15 kN | Speed (grease): 9500 rpm
6306DD d: 30 mm | D: 72 mm | B: 19 mm | C: 26.6 kN | C0: 15 kN | Speed (grease): 6700 rpm
63/32DDF1 d: 30 mm | D: 75 mm | B: 20 mm | C: 29.8 kN | C0: 16.9 kN | Speed (grease): 6300 rpm
HC6307DDF1h d: 30 mm | D: 80 mm | B: 22 mm | C: 39.5 kN | C0: 21.6 kN | Speed (grease): 6400 rpm
63/32DD d: 32 mm | D: 75 mm | B: 20 mm | C: 29.8 kN | C0: 16.9 kN | Speed (grease): 6300 rpm
6307 d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19.2 kN | Speed (grease): 8500 rpm
6307ZZ d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19.2 kN | Speed (grease): 8500 rpm
6307UU d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19.2 kN | Speed (grease): 8500 rpm
6307DD d: 35 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19.2 kN | Speed (grease): 6000 rpm
HC6307DDh1 d: 35 mm | D: 80 mm | B: 24 mm | C: 39.5 kN | C0: 21.6 kN | Speed (grease): 6100 rpm
6308 d: 40 mm | D: 90 mm | B: 23 mm | C: 40.5 kN | C0: 23.9 kN | Speed (grease): 7500 rpm
HC6308 d: 40 mm | D: 90 mm | B: 23 mm | C: 47 kN | C0: 26.3 kN | Speed (grease): 7700 rpm
6308ZZ d: 40 mm | D: 90 mm | B: 23 mm | C: 40.5 kN | C0: 23.9 kN | Speed (grease): 7500 rpm
6308UU d: 40 mm | D: 90 mm | B: 23 mm | C: 40.5 kN | C0: 23.9 kN | Speed (grease): 7500 rpm
6308DD d: 40 mm | D: 90 mm | B: 23 mm | C: 40.5 kN | C0: 23.9 kN | Speed (grease): 5300 rpm
HC6308DDh d: 40 mm | D: 90 mm | B: 25 mm | C: 47 kN | C0: 26.3 kN | Speed (grease): 5400 rpm
6308DDF1h d: 43 mm | D: 90 mm | B: 25 mm | C: 40.5 kN | C0: 23.9 kN | Speed (grease): 5300 rpm
6309 d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 32 kN | Speed (grease): 6700 rpm
6309ZZ d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 32 kN | Speed (grease): 6700 rpm
6309UU d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 32 kN | Speed (grease): 6700 rpm
6309DD d: 45 mm | D: 100 mm | B: 25 mm | C: 53 kN | C0: 32 kN | Speed (grease): 4800 rpm
6310 d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | Speed (grease): 6000 rpm
6310ZZ d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | Speed (grease): 6000 rpm
6310UU d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | Speed (grease): 6000 rpm
6310DD d: 50 mm | D: 110 mm | B: 27 mm | C: 62 kN | C0: 38 kN | Speed (grease): 4300 rpm
6311 d: 55 mm | D: 120 mm | B: 29 mm | C: 71.5 kN | C0: 44.5 kN | Speed (grease): 5600 rpm
6311ZZ d: 55 mm | D: 120 mm | B: 29 mm | C: 71.5 kN | C0: 44.5 kN | Speed (grease): 5600 rpm
6311UU d: 55 mm | D: 120 mm | B: 29 mm | C: 71.5 kN | C0: 44.5 kN | Speed (grease): 5600 rpm
6311DD d: 55 mm | D: 120 mm | B: 29 mm | C: 71.5 kN | C0: 44.5 kN | Speed (grease): 4000 rpm
6312 d: 60 mm | D: 130 mm | B: 31 mm | C: 82 kN | C0: 52 kN | Speed (grease): 5300 rpm
6312ZZ d: 60 mm | D: 130 mm | B: 31 mm | C: 82 kN | C0: 52 kN | Speed (grease): 5300 rpm
6312UU d: 60 mm | D: 130 mm | B: 31 mm | C: 82 kN | C0: 52 kN | Speed (grease): 5300 rpm
6312DD d: 60 mm | D: 130 mm | B: 31 mm | C: 82 kN | C0: 52 kN | Speed (grease): 3600 rpm
6313 d: 65 mm | D: 140 mm | B: 33 mm | C: 92.5 kN | C0: 59.5 kN | Speed (grease): 4800 rpm
6313ZZ d: 65 mm | D: 140 mm | B: 33 mm | C: 92.5 kN | C0: 59.5 kN | Speed (grease): 4800 rpm
6313UU d: 65 mm | D: 140 mm | B: 33 mm | C: 92.5 kN | C0: 59.5 kN | Speed (grease): 4800 rpm
6313DD d: 65 mm | D: 140 mm | B: 33 mm | C: 92.5 kN | C0: 59.5 kN | Speed (grease): 3400 rpm
6314 d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | Speed (grease): 4500 rpm
6314ZZ d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | Speed (grease): 4500 rpm
6314UU d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | Speed (grease): 4500 rpm
6314DD d: 70 mm | D: 150 mm | B: 35 mm | C: 104 kN | C0: 68 kN | Speed (grease): 3200 rpm
6315 d: 75 mm | D: 160 mm | B: 37 mm | C: 113 kN | C0: 77 kN | Speed (grease): 4300 rpm
6315ZZ d: 75 mm | D: 160 mm | B: 37 mm | C: 113 kN | C0: 77 kN | Speed (grease): 4300 rpm
6315DD d: 75 mm | D: 160 mm | B: 37 mm | C: 113 kN | C0: 77 kN | Speed (grease): 2800 rpm
6316 d: 80 mm | D: 170 mm | B: 39 mm | C: 123 kN | C0: 86.5 kN | Speed (grease): 4000 rpm
6316ZZ d: 80 mm | D: 170 mm | B: 39 mm | C: 123 kN | C0: 86.5 kN | Speed (grease): 4000 rpm
6316DD d: 80 mm | D: 170 mm | B: 39 mm | C: 123 kN | C0: 86.5 kN | Speed (grease): 2800 rpm
638DD d: 8 mm | D: 28 mm | B: 9 mm | C: 4.55 kN | C0: 1.96 kN | Speed (grease): 28000 rpm
6302ADDKV2 d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 13000 rpm
EC6302DDK2 d: 15 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 13000 rpm
6302F1 d: 17 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 17000 rpm
EC6302F1 d: 17 mm | D: 42 mm | B: 13 mm | C: 11.4 kN | C0: 5.45 kN | Speed (grease): 17000 rpm
6303ADDKV2 d: 17 mm | D: 47 mm | B: 14 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 11000 rpm
6303h d: 17 mm | D: 47 mm | B: 17 mm | C: 13.6 kN | C0: 6.6 kN | Speed (grease): 11000 rpm
6304F11 d: 17 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 14000 rpm
6304h d: 20 mm | D: 52 mm | B: 12 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 15000 rpm
6304A2DDK2 d: 20 mm | D: 52 mm | B: 15 mm | C: 15.9 kN | C0: 7.85 kN | Speed (grease): 10000 rpm
6305F11 d: 20 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 8000 rpm
6305A2DDKV2 d: 25 mm | D: 62 mm | B: 17 mm | C: 20.6 kN | C0: 11.2 kN | Speed (grease): 8000 rpm
HC6305 d: 25 mm | D: 62 mm | B: 17 mm | C: 23.6 kN | C0: 12.1 kN | Speed (grease): 12000 rpm
6306F1 d: 25 mm | D: 72 mm | B: 19 mm | C: 26.6 kN | C0: 15 kN | Speed (grease): 10000 rpm
63/28F11 d: 27 mm | D: 68 mm | B: 18 mm | C: 26.7 kN | C0: 14 kN | Speed (grease): 10000 rpm
HC63/28DD d: 28 mm | D: 68 mm | B: 18 mm | C: 27.8 kN | C0: 14.5 kN | Speed (grease): 11000 rpm
6307F1 d: 30 mm | D: 74 mm | B: 21 mm | C: 33.5 kN | C0: 19.2 kN | Speed (grease): 8500 rpm
HC6307F1h d: 30 mm | D: 80 mm | B: 22 mm | C: 39.5 kN | C0: 21.6 kN | Speed (grease): 6400 rpm
6307h d: 35 mm | D: 80 mm | B: 22 mm | C: 39.5 kN | C0: 21.6 kN | Speed (grease): 8500 rpm
HC6307DDh d: 35 mm | D: 80 mm | B: 22 mm | C: 39.6 kN | C0: 21.6 kN | Speed (grease): 8700 rpm
HC6307h1 d: 35 mm | D: 80 mm | B: 24 mm | C: 39.5 kN | C0: 21.6 kN | Speed (grease): 8500 rpm
6307F12 d: 38 mm | D: 80 mm | B: 21 mm | C: 33.5 kN | C0: 19.2 kN | Speed (grease): 8500 rpm
HC6308h d: 40 mm | D: 90 mm | B: 25 mm | C: 47 kN | C0: 26.3 kN | Speed (grease): 5800 rpm
6309DDF1 d: 40 mm | D: 100 mm | B: 25 mm | C: 52.95 kN | C0: 32 kN | Speed (grease): 6800 rpm
6308F1h d: 43 mm | D: 90 mm | B: 25 mm | C: 40.5 kN | C0: 23.9 kN | Speed (grease): 7500 rpm
HC6309DDh d: 45 mm | D: 100 mm | B: 26 mm | C: 59.3 kN | C0: 33.8 kN | Speed (grease): 6900 rpm
6320ZZ d: 100 mm | D: 215 mm | B: 47 mm | C: 174 kN | C0: 141 kN | Speed (grease): 3200 rpm
