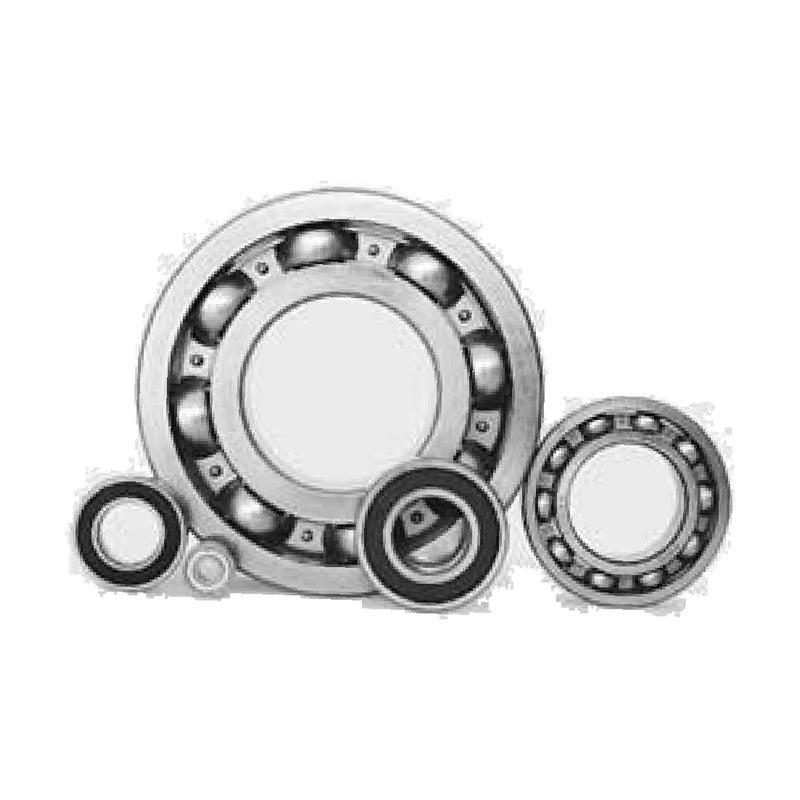

KBC 69, 160 & 68 Thin-Section Deep Groove Ball Bearings

KBC 69, 160 & 68 Thin-Section Deep Groove Ball Bearings

KBC thin-section deep groove ball bearings of the 69, 160 and 68 dimension series for compact, low-cross-section bearing arrangements. Open, shielded and sealed versions are listed as printed in the catalogue.

Key features

  • Low cross-section for space-saving designs
  • Single-row deep groove raceways for radial and light axial loads
  • Open, ZZ shielded and DD contact-sealed versions
  • Suitable for high-speed operation

Specifications

Series 69, 160, 68 (thin section)
Cage Pressed steel (standard)
Seal / shield codes ZZ shields, DD contact seals
Standard KS B 2023
Source KBC Rolling Bearings catalogue GB 41 500, p. 140-153; 6807ZZ from KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.), p. 146-147
6903 d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | Speed (grease): 24000 rpm
6903ZZ d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | Speed (grease): 24000 rpm
6903DD d: 17 mm | D: 30 mm | B: 7 mm | C: 4.6 kN | C0: 2.55 kN | Speed (grease): 15000 rpm
6904F2 d: 20 mm | D: 36 mm | B: 9 mm | C: 6.35 kN | C0: 3.7 kN | Speed (grease): 19000 rpm
6904 d: 20 mm | D: 37 mm | B: 9 mm | C: 6.35 kN | C0: 3.7 kN | Speed (grease): 19000 rpm
6904ZZ d: 20 mm | D: 37 mm | B: 9 mm | C: 6.35 kN | C0: 3.7 kN | Speed (grease): 19000 rpm
6904DD d: 20 mm | D: 37 mm | B: 9 mm | C: 6.35 kN | C0: 3.7 kN | Speed (grease): 12000 rpm
6905 d: 25 mm | D: 42 mm | B: 9 mm | C: 7.05 kN | C0: 4.55 kN | Speed (grease): 16000 rpm
16006 d: 30 mm | D: 55 mm | B: 9 mm | C: 11.2 kN | C0: 7.35 kN | Speed (grease): 13000 rpm
68206 d: 30 mm | D: 62 mm | B: 10 mm | C: 15 kN | C0: 9.2 kN | Speed (grease): 11000 rpm
16007 d: 35 mm | D: 62 mm | B: 9 mm | C: 12.2 kN | C0: 8.9 kN | Speed (grease): 11000 rpm
16008 d: 40 mm | D: 68 mm | B: 9 mm | C: 12.6 kN | C0: 9.65 kN | Speed (grease): 10000 rpm
16010 d: 50 mm | D: 80 mm | B: 10 mm | C: 16 kN | C0: 13.2 kN | Speed (grease): 8500 rpm
6807ZZ d: 35 mm | D: 47 mm | B: 7 mm | C: 4.89 kN | C0: 4.02 kN | Speed (grease): 13000 rpm
16002 d: 15 mm | D: 32 mm | B: 8 mm | C: 5.6 kN | C0: 2.84 kN | Speed (grease): 22000 rpm
6904h d: 20 mm | D: 37 mm | B: 20 mm | C: 6.37 kN | C0: 3.7 kN | Speed (grease): 18000 rpm
16004 d: 20 mm | D: 42 mm | B: 8 mm | C: 7.915 kN | C0: 4.45 kN | Speed (grease): 17000 rpm
6905DDF1 d: 20 mm | D: 42 mm | B: 9 mm | C: 7 kN | C0: 4.5 kN | Speed (grease): 15000 rpm
69/22 d: 22 mm | D: 39 mm | B: 9 mm | C: 6.71 kN | C0: 4.1 kN | Speed (grease): 17000 rpm
6905DD d: 25 mm | D: 42 mm | B: 9 mm | C: 8.4 kN | C0: 5 kN | Speed (grease): 15000 rpm
6905ZZ d: 25 mm | D: 42 mm | B: 9 mm | C: 8.4 kN | C0: 5 kN | Speed (grease): 15000 rpm
16005DU d: 25 mm | D: 47 mm | B: 8 mm | C: 8.85 kN | C0: 5.6 kN | Speed (grease): 14000 rpm
6906ZZ d: 30 mm | D: 47 mm | B: 9 mm | C: 7.25 kN | C0: 5 kN | Speed (grease): 13000 rpm
6906DD d: 30 mm | D: 47 mm | B: 9 mm | C: 7.25 kN | C0: 5 kN | Speed (grease): 13000 rpm
6906DDF1 d: 30.8 mm | D: 47 mm | B: 9 mm | C: 7.25 kN | C0: 5 kN | Speed (grease): 13000 rpm
6907 d: 35 mm | D: 55 mm | B: 10 mm | C: 10.5 kN | C0: 7.25 kN | Speed (grease): 12000 rpm
6908DD d: 40 mm | D: 62 mm | B: 12 mm | C: 13.6 kN | C0: 9.945 kN | Speed (grease): 9945 rpm
6909 d: 45 mm | D: 68 mm | B: 12 mm | C: 14.1 kN | C0: 10.8 kN | Speed (grease): 8900 rpm
6909ZZ d: 45 mm | D: 68 mm | B: 12 mm | C: 14.1 kN | C0: 10.8 kN | Speed (grease): 8900 rpm
Deep Groove Ball BearingsKBC Bearings
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC 69, 160 & 68 Thin-Section Deep Groove Ball Bearings

Brand KBC Bearings·Deep Groove Ball Bearings

Available part numbers (29)

6903, 6903ZZ, 6903DD, 6904F2, 6904, 6904ZZ, 6904DD, 6905, 16006, 68206 + 19 more — see full table ↓

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
