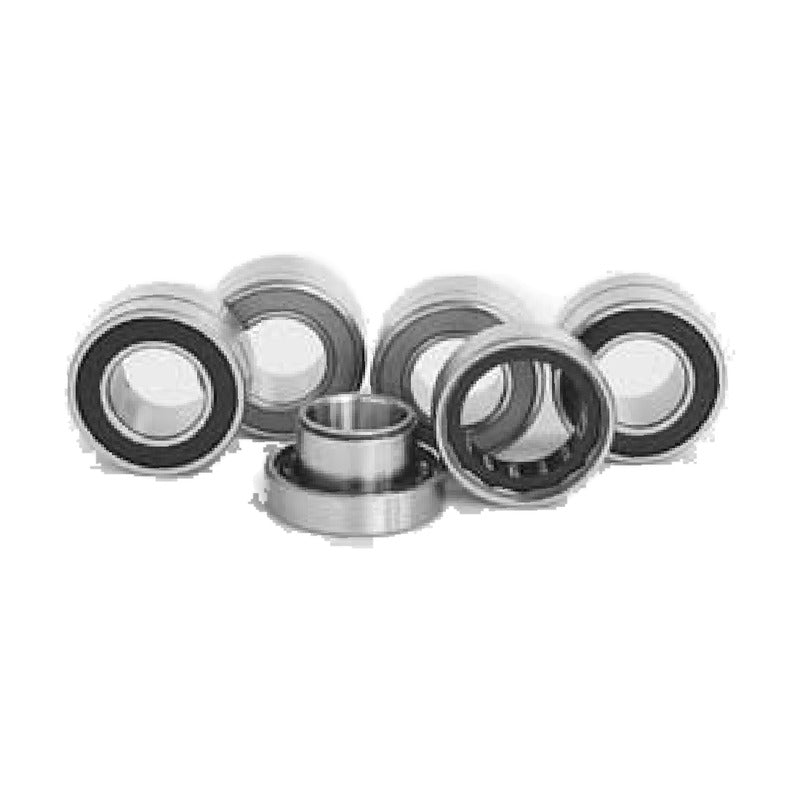

KBC CLT One-Way Clutch Bearings (Washing Machine Drive)

KBC CLT One-Way Clutch Bearings (Washing Machine Drive)

KBC CLT one-way clutch bearings combining a deep groove ball bearing and a one-way roller clutch in one sealed unit. They are mainly used in the drive gears of automatic washing machines.

Key features

  • Ball bearing section carries radial and axial loads
  • Roller clutch section locks rotation in one direction
  • CLT...T unitized rings; CLT...A separable outer ring type
  • Sealed; colour-coded for rotation direction

Specifications

Function Ball bearing + one-way clutch
Application Washing machine drives
Cage Glass-fibre reinforced polyamide 66
Source KBC Rolling Bearings catalogue GB 41 500, p. 220-221
CLT05T d: 25 mm | D: 47 mm | B: 25 mm | C: 10.1 kN | C0: 5.8 kN | Locking torque: 58.8 N.m
CLT05A d: 25 mm | D: 47 mm | B: 25 mm | C: 10.1 kN | C0: 5.8 kN | Locking torque: 58.8 N.m
Deep Groove Ball BearingsKBC Bearings
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC CLT One-Way Clutch Bearings (Washing Machine Drive)

Brand KBC Bearings·Deep Groove Ball Bearings

Available part numbers (2)

CLT05T, CLT05A

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CLT05Td: 25 mm | D: 47 mm | B: 25 mm | C: 10.1 kN | C0: 5.8 kN | Locking torque: 58.8 N.m
CLT05Ad: 25 mm | D: 47 mm | B: 25 mm | C: 10.1 kN | C0: 5.8 kN | Locking torque: 58.8 N.m
