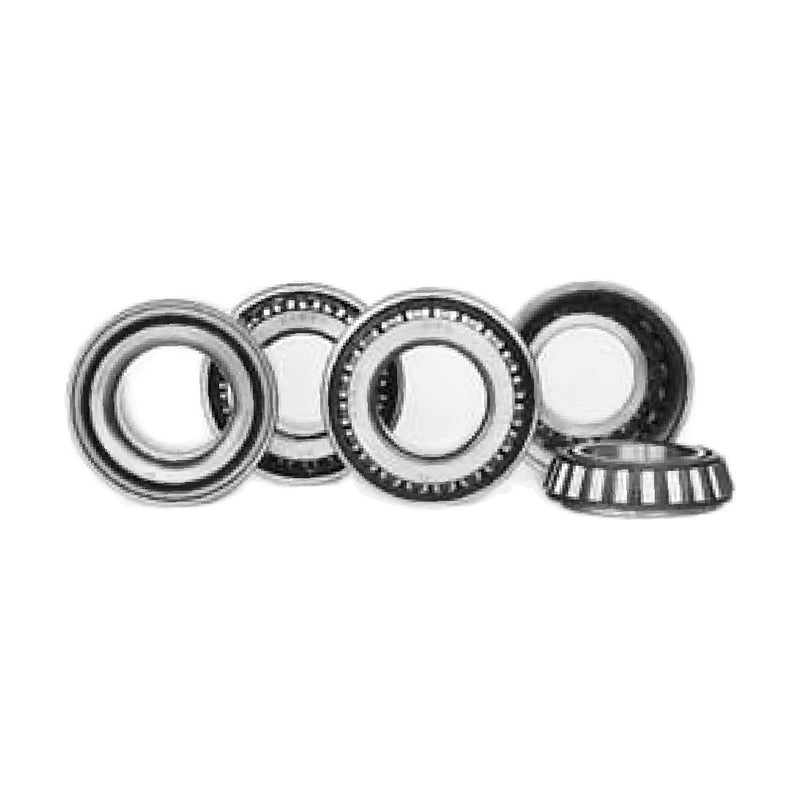

KBC DT Double Row Tapered Roller Bearings

KBC DT Double Row Tapered Roller Bearings

KBC DT series double-row tapered roller bearings in O arrangement with a one-piece outer ring and two cones. They take heavy radial loads, axial loads in both directions and tilting moments.

Key features

  • Double-row tapered roller design, prefix DT
  • One-piece cup with two cones in O arrangement
  • Supplied with preset clearance, ready to mount
  • Designation encodes bore, OD and width (e.g. DT408044)

Specifications

Rows Double row
Arrangement O (back-to-back)
Source KBC Rolling Bearings catalogue GB 41 500, p. 196-197; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
DT408044 d: 40 mm | D: 80 mm | B: 45 mm | C: 110 kN | C0: 160 kN | Mass: 1.01 kg
DT427639 d: 42 mm | D: 76 mm | B: 39 mm | C: 98.3 kN | C0: 139 kN | Mass: 0.75 kg
DT457532 d: 45 mm | D: 75 mm | B: 32 mm | C: 61.3 kN | C0: 88 kN | Mass: 0.5 kg
DT498448 d: 49 mm | D: 84 mm | B: 48 mm | C: 107.9 kN | C0: 171.4 kN | Mass: 1.09 kg
DT337226 d: 33 mm | D: 72 mm | B: 26 mm | C: 54.7 kN | C0: 78.9 kN
DT387226 d: 38 mm | D: 72 mm | B: 26 mm | C: 54.7 kN | C0: 78.9 kN
DT456834 d: 45 mm | D: 68 mm | B: 33.5 mm | C: 30.5 kN | C0: 39 kN
DT527730 d: 52 mm | D: 76.6 mm | B: 30 mm | C: 53.5 kN | C0: 102.8 kN
DT527830 d: 52 mm | D: 78 mm | B: 30 mm | C: 53.5 kN | C0: 102.8 kN
DT558534 d: 55 mm | D: 85 mm | B: 34 mm | C: 62.7 kN | C0: 120 kN
DT559034 d: 55 mm | D: 90 mm | B: 34 mm | C: 62.2 kN | C0: 97.2 kN
DT589034 d: 58 mm | D: 90 mm | B: 34 mm | C: 91.2 kN | C0: 160 kN
Tapered Roller BearingsKBC Bearings
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC DT Double Row Tapered Roller Bearings

Brand KBC Bearings·Tapered Roller Bearings

Available part numbers (12)

DT408044, DT427639, DT457532, DT498448, DT337226, DT387226, DT456834, DT527730, DT527830, DT558534 + 2 more — see full table ↓

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DT408044d: 40 mm | D: 80 mm | B: 45 mm | C: 110 kN | C0: 160 kN | Mass: 1.01 kg
DT427639d: 42 mm | D: 76 mm | B: 39 mm | C: 98.3 kN | C0: 139 kN | Mass: 0.75 kg
DT457532d: 45 mm | D: 75 mm | B: 32 mm | C: 61.3 kN | C0: 88 kN | Mass: 0.5 kg
DT498448d: 49 mm | D: 84 mm | B: 48 mm | C: 107.9 kN | C0: 171.4 kN | Mass: 1.09 kg
DT337226d: 33 mm | D: 72 mm | B: 26 mm | C: 54.7 kN | C0: 78.9 kN
DT387226d: 38 mm | D: 72 mm | B: 26 mm | C: 54.7 kN | C0: 78.9 kN
DT456834d: 45 mm | D: 68 mm | B: 33.5 mm | C: 30.5 kN | C0: 39 kN
DT527730d: 52 mm | D: 76.6 mm | B: 30 mm | C: 53.5 kN | C0: 102.8 kN
DT527830d: 52 mm | D: 78 mm | B: 30 mm | C: 53.5 kN | C0: 102.8 kN
DT558534d: 55 mm | D: 85 mm | B: 34 mm | C: 62.7 kN | C0: 120 kN
DT559034d: 55 mm | D: 90 mm | B: 34 mm | C: 62.2 kN | C0: 97.2 kN
DT589034d: 58 mm | D: 90 mm | B: 34 mm | C: 91.2 kN | C0: 160 kN
