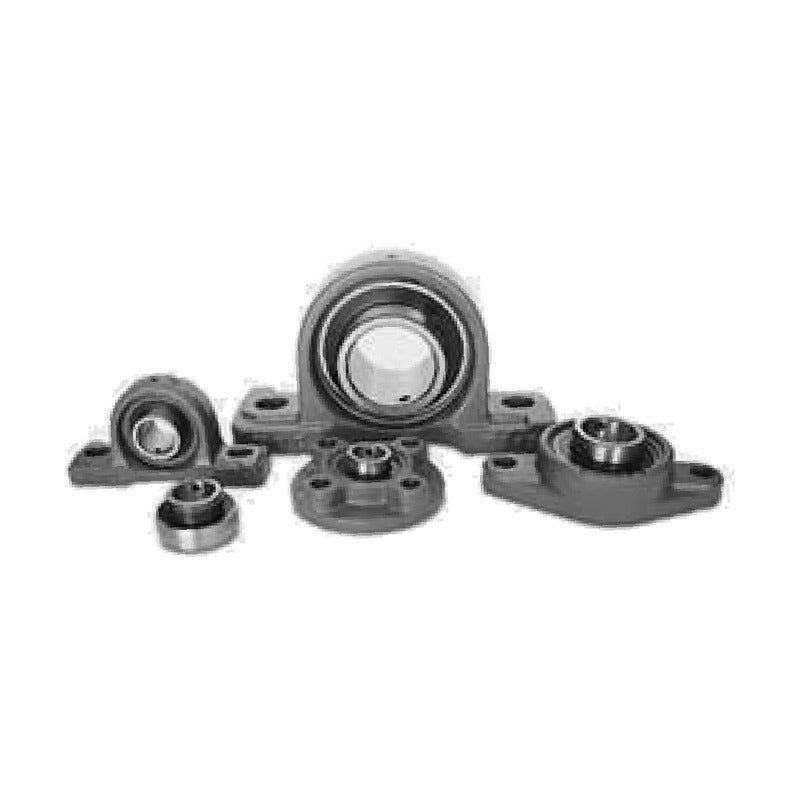

KBC F2 Grey-Cast Square Flanged Housings (F204-F213)

KBC F2 Grey-Cast Square Flanged Housings (F204-F213)

KBC F2 series grey-cast-iron four-bolt square flanged housings for UC2 / UB2 insert bearings, shaft sizes 20-65 mm. Assembled with an insert bearing they form a UCF-type mounted unit.

Key features

  • Grey cast iron four-bolt square flange
  • Spherical seat accepts UC2 / UB2 insert bearings
  • Grease nipple for relubrication
  • To KS B 2050

Specifications

Material Grey cast iron
Mounting Four-bolt square flange
Standard KS B 2050
Source KBC Rolling Bearings catalogue GB 41 500, p. 206-207
F204 Shaft: 20 mm | Bearing: UC204 | a1: 86 mm | Bolt: M10 | Unit mass: 0.62 kg
F205 Shaft: 25 mm | Bearing: UC205 | a1: 95 mm | Bolt: M10 | Unit mass: 0.83 kg
F206 Shaft: 30 mm | Bearing: UC206 | a1: 108 mm | Bolt: M10 | Unit mass: 1.14 kg
F207 Shaft: 35 mm | Bearing: UC207 | a1: 117 mm | Bolt: M12 | Unit mass: 1.47 kg
F208 Shaft: 40 mm | Bearing: UC208 | a1: 130 mm | Bolt: M14 | Unit mass: 2 kg
F209 Shaft: 45 mm | Bearing: UC209 | a1: 137 mm | Bolt: M14 | Unit mass: 2.4 kg
F210 Shaft: 50 mm | Bearing: UC210 | a1: 143 mm | Bolt: M14 | Unit mass: 2.6 kg
F211 Shaft: 55 mm | Bearing: UC211 | a1: 162 mm | Bolt: M16 | Unit mass: 3.6 kg
F212 Shaft: 60 mm | Bearing: UC212 | a1: 175 mm | Bolt: M16 | Unit mass: 4.8 kg
F213 Shaft: 65 mm | Bearing: UC213 | a1: 187 mm | Bolt: M16 | Unit mass: 5.8 kg
Bearing HousingsKBC Bearings
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC F2 Grey-Cast Square Flanged Housings (F204-F213)

Brand KBC Bearings·Bearing Housings

Available part numbers (10)

F204, F205, F206, F207, F208, F209, F210, F211, F212, F213

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F204Shaft: 20 mm | Bearing: UC204 | a1: 86 mm | Bolt: M10 | Unit mass: 0.62 kg
F205Shaft: 25 mm | Bearing: UC205 | a1: 95 mm | Bolt: M10 | Unit mass: 0.83 kg
F206Shaft: 30 mm | Bearing: UC206 | a1: 108 mm | Bolt: M10 | Unit mass: 1.14 kg
F207Shaft: 35 mm | Bearing: UC207 | a1: 117 mm | Bolt: M12 | Unit mass: 1.47 kg
F208Shaft: 40 mm | Bearing: UC208 | a1: 130 mm | Bolt: M14 | Unit mass: 2 kg
F209Shaft: 45 mm | Bearing: UC209 | a1: 137 mm | Bolt: M14 | Unit mass: 2.4 kg
F210Shaft: 50 mm | Bearing: UC210 | a1: 143 mm | Bolt: M14 | Unit mass: 2.6 kg
F211Shaft: 55 mm | Bearing: UC211 | a1: 162 mm | Bolt: M16 | Unit mass: 3.6 kg
F212Shaft: 60 mm | Bearing: UC212 | a1: 175 mm | Bolt: M16 | Unit mass: 4.8 kg
F213Shaft: 65 mm | Bearing: UC213 | a1: 187 mm | Bolt: M16 | Unit mass: 5.8 kg
