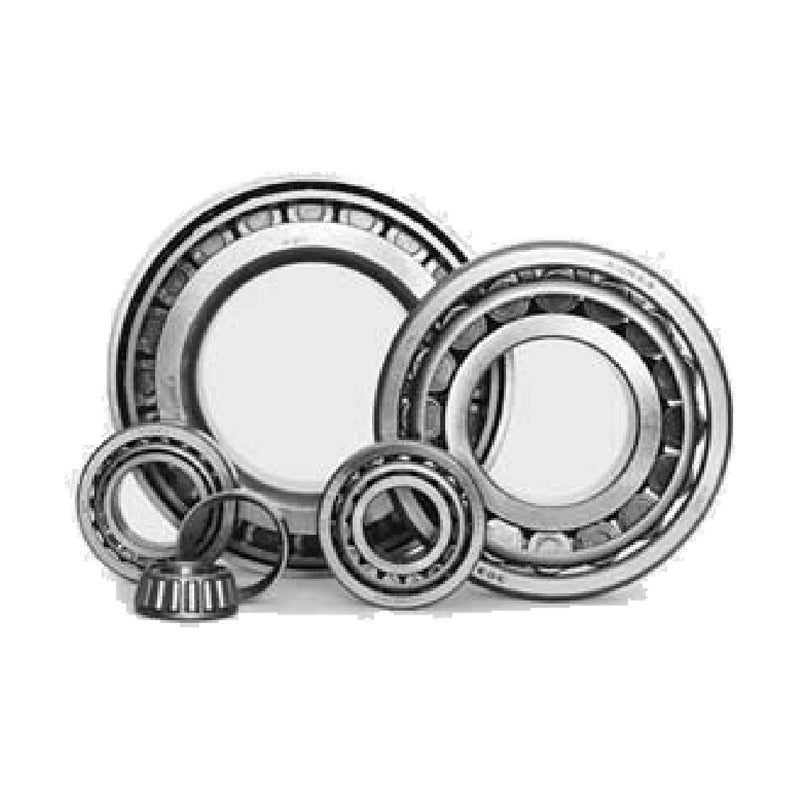

KBC Inch Series Tapered Roller Bearings (Cone/Cup Sets)

KBC Inch Series Tapered Roller Bearings (Cone/Cup Sets)

KBC single-row inch-dimension tapered roller bearings designated as cone / cup sets (e.g. LM11749/LM11710). Bores range from 17.462 mm to 92.075 mm; a few KBC metric-envelope TR and KW designs are listed in the same table.

Key features

  • Cone / cup designation per inch tapered roller bearing system
  • Light (L, LM), medium (M) and heavy (HM, H) series
  • Separable cone and cup; cups interchangeable within a series
  • Combined radial and one-direction axial load capacity

Specifications

Rows Single row
Dimensions Inch (shown in mm)
Source KBC Rolling Bearings catalogue GB 41 500, p. 188-193; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
LM11749/LM11710 d: 17.462 mm | D: 39.878 mm | T: 13.843 mm | C: 22.5 kN | C0: 22.5 kN | Mass: 0.083 kg
LM11949/LM11910 d: 19.05 mm | D: 45.237 mm | T: 15.494 mm | C: 28.5 kN | C0: 28.9 kN | Mass: 0.125 kg
LM12649/LM12610 d: 21.43 mm | D: 50.005 mm | T: 17.526 mm | C: 39 kN | C0: 40.5 kN | Mass: 0.174 kg
LM12749/LM12710 d: 21.986 mm | D: 45.237 mm | T: 15.494 mm | C: 29.6 kN | C0: 34 kN | Mass: 0.122 kg
15578/15520 d: 25.4 mm | D: 57.15 mm | T: 17.462 mm | C: 39.5 kN | C0: 45.5 kN | Mass: 0.221 kg
L44649/L44610 d: 26.988 mm | D: 50.292 mm | T: 14.224 mm | C: 27.3 kN | C0: 31.5 kN | Mass: 0.12 kg
LM78349TF1/LM78310A d: 27 mm | D: 61.973 mm | T: 16.7 mm | C: 32.3 kN | C0: 44 kN | Mass: 0.253 kg
TR275720 d: 27.487 mm | D: 57.175 mm | T: 19.845 mm | C: 45.6 kN | C0: 49.3 kN | Mass: 0.245 kg
M86647/M86610 d: 28.575 mm | D: 64.292 mm | T: 21.433 mm | C: 52.4 kN | C0: 65.9 kN | Mass: 0.287 kg
02872/02820 d: 28.575 mm | D: 73.025 mm | T: 22.225 mm | C: 55 kN | C0: 65.5 kN | Mass: 0.481 kg
L45449/L45410 d: 29 mm | D: 50.292 mm | T: 14.224 mm | C: 27.5 kN | C0: 34.5 kN | Mass: 0.115 kg
M86649/M86610 d: 30.162 mm | D: 64.292 mm | T: 21.433 mm | C: 51.5 kN | C0: 66 kN | Mass: 0.339 kg
M88043/M88010 d: 30.162 mm | D: 68.262 mm | T: 22.225 mm | C: 55.5 kN | C0: 70.5 kN | Mass: 0.409 kg
LM67048/LM67010 d: 31.75 mm | D: 59.131 mm | T: 15.875 mm | C: 34.9 kN | C0: 41.7 kN | Mass: 0.189 kg
15123/15245 d: 31.75 mm | D: 62 mm | T: 18.161 mm | C: 43.5 kN | C0: 50.5 kN | Mass: 0.246 kg
M88048/M88010 d: 33.338 mm | D: 68.262 mm | T: 22.225 mm | C: 55.4 kN | C0: 70.7 kN | Mass: 0.325 kg
LM48548/LM48510 d: 34.925 mm | D: 65.088 mm | T: 18.034 mm | C: 46.5 kN | C0: 57.5 kN | Mass: 0.269 kg
LM48548/LM48511 d: 34.925 mm | D: 65.088 mm | T: 21.082 mm | C: 46.5 kN | C0: 57.5 kN | Mass: 0.28 kg
14585/14525 d: 34.925 mm | D: 68.262 mm | T: 20.638 mm | C: 48 kN | C0: 57.5 kN | Mass: 0.296 kg
14138A/14276 d: 34.925 mm | D: 69.012 mm | T: 19.845 mm | C: 46.5 kN | C0: 57.5 kN | Mass: 0.329 kg
HM88649/HM88610 d: 34.925 mm | D: 72.233 mm | T: 25.4 mm | C: 65.5 kN | C0: 86 kN | Mass: 0.495 kg
25877/25821 d: 34.925 mm | D: 73.025 mm | T: 23.812 mm | C: 70 kN | C0: 86 kN | Mass: 0.473 kg
HM89446/HM89410 d: 34.925 mm | D: 76.2 mm | T: 29.37 mm | C: 78.5 kN | C0: 106 kN | Mass: 0.657 kg
31594/31520 d: 34.925 mm | D: 76.2 mm | T: 29.37 mm | C: 81.5 kN | C0: 98 kN | Mass: 0.639 kg
L68149/L68110 d: 34.988 mm | D: 59.131 mm | T: 15.875 mm | C: 34 kN | C0: 46 kN | Mass: 0.173 kg
L68149/L68111 d: 34.988 mm | D: 59.974 mm | T: 15.875 mm | C: 34 kN | C0: 46 kN | Mass: 0.211 kg
HM89449/HM89410 d: 36.512 mm | D: 76.2 mm | T: 29.37 mm | C: 78.5 kN | C0: 106 kN | Mass: 0.637 kg
HM89249/HM89210 d: 36.512 mm | D: 79.375 mm | T: 29.37 mm | C: 87 kN | C0: 119 kN | Mass: 1.02 kg
JL69349/JL69310 d: 38 mm | D: 63 mm | T: 17 mm | C: 38 kN | C0: 51.5 kN | Mass: 0.203 kg
TR386516 d: 38.1 mm | D: 65.088 mm | T: 16.5 mm | C: 41.5 kN | C0: 52 kN | Mass: 0.216 kg
38KW01Cg5 d: 38.1 mm | D: 65.088 mm | T: 18.034 mm | C: 42.5 kN | C0: 55.6 kN | Mass: 0.241 kg
13685/13620 d: 38.1 mm | D: 69.012 mm | T: 19.05 mm | C: 48 kN | C0: 61.5 kN | Mass: 0.296 kg
13687/13621 d: 38.1 mm | D: 69.012 mm | T: 19.05 mm | C: 48 kN | C0: 61.5 kN | Mass: 0.297 kg
2776/2720 d: 38.1 mm | D: 76.2 mm | T: 23.812 mm | C: 74 kN | C0: 86 kN | Mass: 0.49 kg
LM300849/LM300811 d: 40.988 mm | D: 67.975 mm | T: 17.5 mm | C: 43 kN | C0: 57.5 kN | Mass: 0.242 kg
18590/18520 d: 41.275 mm | D: 73.025 mm | T: 16.667 mm | C: 45.5 kN | C0: 55 kN | Mass: 0.285 kg
LM501349/LM501310 d: 41.275 mm | D: 73.431 mm | T: 19.558 mm | C: 55.5 kN | C0: 69 kN | Mass: 0.334 kg
24780/24721 d: 41.275 mm | D: 76.2 mm | T: 25.4 mm | C: 67 kN | C0: 84 kN | Mass: 0.468 kg
12168/12303 d: 42.862 mm | D: 76.992 mm | T: 17.462 mm | C: 45 kN | C0: 56.1 kN | Mass: 0.31 kg
25577/25523 d: 42.875 mm | D: 82.931 mm | T: 26.988 mm | C: 75.5 kN | C0: 100 kN | Mass: 0.629 kg
17887/17831 d: 45.23 mm | D: 79.985 mm | T: 19.842 mm | C: 61 kN | C0: 79.5 kN | Mass: 0.41 kg
TR458020 d: 45.23 mm | D: 80 mm | T: 20 mm | C: 53 kN | C0: 39 kN | Mass: 1.17 kg
LM102949/LM102910 d: 45.242 mm | D: 73.431 mm | T: 19.558 mm | C: 55 kN | C0: 77 kN | Mass: 0.315 kg
LM503349/LM503310 d: 45.987 mm | D: 74.976 mm | T: 18 mm | C: 51.8 kN | C0: 71.3 kN | Mass: 0.305 kg
JLM104948/JLM104910 d: 50 mm | D: 82 mm | T: 21.5 mm | C: 70.5 kN | C0: 95.5 kN | Mass: 0.435 kg
3780F1/3720 d: 50 mm | D: 93.264 mm | T: 30.162 mm | C: 104 kN | C0: 138 kN | Mass: 0.576 kg
TR528520 d: 52.388 mm | D: 85 mm | T: 20 mm | C: 61 kN | C0: 78 kN | Mass: 0.392 kg
28584/28521 d: 52.388 mm | D: 92.075 mm | T: 24.608 mm | C: 82 kN | C0: 112 kN | Mass: 0.682 kg
L507949/L507910 d: 57.15 mm | D: 87.312 mm | T: 18.258 mm | C: 58.3 kN | C0: 94 kN | Mass: 0.38 kg
3979/3920 d: 57.15 mm | D: 112.712 mm | T: 30.162 mm | C: 118 kN | C0: 173 kN | Mass: 1.376 kg
JLM508748/JLM508710 d: 60 mm | D: 95 mm | T: 24 mm | C: 82.5 kN | C0: 123 kN | Mass: 0.63 kg
28985/28921 d: 60.325 mm | D: 100 mm | T: 25.4 mm | C: 91 kN | C0: 135 kN | Mass: 0.770 kg
S28985/S28920 d: 60.325 mm | D: 101.6 mm | T: 25.4 mm | C: 85 kN | C0: 135 kN | Mass: 0.776 kg
3982/3920 d: 63.5 mm | D: 112.712 mm | T: 30.162 mm | C: 118 kN | C0: 173 kN | Mass: 1.22 kg
JLM710949/JLM710910 d: 65 mm | D: 105 mm | T: 24 mm | C: 88.5 kN | C0: 123 kN | Mass: 0.72 kg
395S/394A d: 66.675 mm | D: 110 mm | T: 22 mm | C: 83.5 kN | C0: 114 kN | Mass: 0.787 kg
3984/3920 d: 66.675 mm | D: 112.712 mm | T: 30.162 mm | C: 118 kN | C0: 173 kN | Mass: 1.166 kg
3994/3920 d: 66.675 mm | D: 112.712 mm | T: 30.162 mm | C: 118 kN | C0: 173 kN | Mass: 1.16 kg
399A/394A d: 68.262 mm | D: 110 mm | T: 22 mm | C: 83.5 kN | C0: 114 kN | Mass: 0.76 kg
H414245/H414210 d: 68.262 mm | D: 136.525 mm | T: 41.275 mm | C: 229 kN | C0: 298 kN | Mass: 2.746 kg
H913849/H913810 d: 69.85 mm | D: 146.05 mm | T: 41.275 mm | C: 198 kN | C0: 235 kN | Mass: 2.85 kg
47686/47620 d: 82.55 mm | D: 133.35 mm | T: 33.338 mm | C: 154 kN | C0: 238 kN | Mass: 1.69 kg
580/572 d: 82.55 mm | D: 139.992 mm | T: 36.512 mm | C: 175 kN | C0: 260 kN | Mass: 2.178 kg
596/592A d: 85.725 mm | D: 152.4 mm | T: 39.688 mm | C: 182 kN | C0: 283 kN | Mass: 2.91 kg
593A/592A d: 88.9 mm | D: 152.4 mm | T: 39.688 mm | C: 182 kN | C0: 283 kN | Mass: 2.79 kg
598AS/592A d: 92.075 mm | D: 152.4 mm | T: 39.688 mm | C: 201 kN | C0: 314 kN | Mass: 2.805 kg
15101/15245 d: 25.4 mm | D: 62 mm | T: 19.05 mm | C: 44.5 kN | C0: 50.3 kN
TR287322HL1 d: 28.575 mm | D: 73.025 mm | T: 22.225 mm | C: 54.8 kN | C0: 65.1 kN
TR336625gHL4 d: 33.338 mm | D: 66.421 mm | T: 25.4 mm | C: 78.4 kN | C0: 96.1 kN
TR356518gHL4 d: 34.925 mm | D: 65.088 mm | T: 18.034 mm | C: 50.9 kN | C0: 63.3 kN
TR357322gHL4 d: 34.925 mm | D: 73.025 mm | T: 22.225 mm | C: 69.3 kN | C0: 87.1 kN
TR369035HL1 d: 36.512 mm | D: 90 mm | T: 35.25 mm | C: 12.9 kN | C0: 151.5 kN
16150g/282g d: 38.1 mm | D: 71.999 mm | T: 18.999 mm | C: 56.3 kN | C0: 70.8 kN
LM501349Tg/10T1g d: 41.275 mm | D: 73.431 mm | T: 19.558 mm | C: 73.8 kN | C0: 58.6 kN
M802048gHL4/11g d: 41.275 mm | D: 82.55 mm | T: 26.543 mm | C: 80.3 kN | C0: 104.7 kN
LM806649gHL4/10g d: 53.975 mm | D: 88.9 mm | T: 19.05 mm | C: 57.6 kN | C0: 76.7 kN
TR579021HL1 d: 57.15 mm | D: 90 mm | T: 21 mm | C: 70.2 kN | C0: 108 kN
555SS/552A d: 57.15 mm | D: 123.825 mm | T: 38.1 mm | C: 161 kN | C0: 223 kN | Mass: 2.174 kg
TR6814342 d: 68.262 mm | D: 143 mm | T: 42.275 mm | C: 263 kN | C0: 307.264 kN
6461/6420 d: 76.2 mm | D: 149.225 mm | T: 53.975 mm | C: 288 kN | C0: 411 kN | Mass: 4.230 kg
