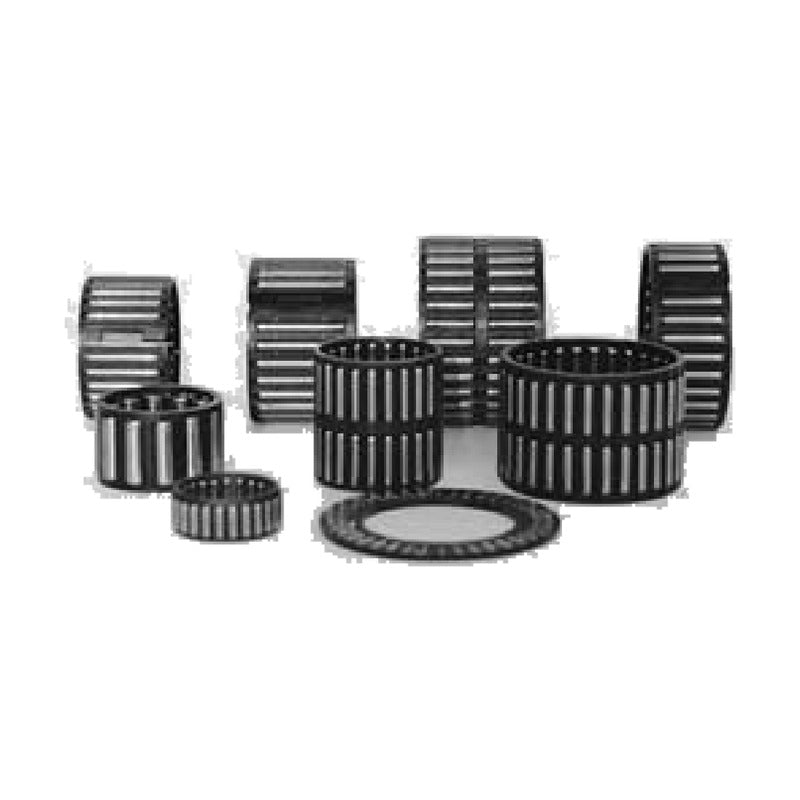

KBC K Series Needle Roller and Cage Assemblies (K, K...ZW)

KBC K Series Needle Roller and Cage Assemblies (K, K...ZW)

KBC K series needle roller and cage assemblies in single-row (K) and double-row (K...ZW) designs. They run directly on a hardened shaft and housing bore, giving high load capacity in a very small radial section.

Key features

  • High load capacity with low section height
  • Single-row K and double-row K...ZW designs
  • PC: polyamide cage; SP: split-cage execution
  • Shaft and housing raceways must be hardened and ground

Specifications

Type Needle roller and cage assembly
Cage Glass-fibre reinforced polyamide (PC)
Source KBC Rolling Bearings catalogue GB 41 500, p. 200; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
K202410PC Fw: 20 mm | Ew: 24 mm | Bc: 10 mm | C: 9.1 kN | C0: 12.8 kN | Speed (grease): 13000 rpm
K203019PC Fw: 20 mm | Ew: 30 mm | Bc: 19 mm | C: 28.2 kN | C0: 30.4 kN | Speed (grease): 13000 rpm
K253024PCSP Fw: 25 mm | Ew: 30 mm | Bc: 24 mm | C: 21.4 kN | C0: 34.9 kN | Speed (grease): 11000 rpm
K253026ZWPCSP Fw: 25 mm | Ew: 30 mm | Bc: 26 mm | C: 21.7 kN | C0: 36.6 kN | Speed (grease): 11000 rpm
K263031ZWPCSP Fw: 26 mm | Ew: 30 mm | Bc: 31 mm | C: 12.4 kN | C0: 20.5 kN | Speed (grease): 10000 rpm
K283213PCSP Fw: 28 mm | Ew: 32 mm | Bc: 13 mm | C: 11.2 kN | C0: 18.5 kN | Speed (grease): 9500 rpm
K303525PCSP Fw: 30 mm | Ew: 35 mm | Bc: 25 mm | C: 23.3 kN | C0: 41.3 kN | Speed (grease): 8500 rpm
K303532ZWPCSP Fw: 30 mm | Ew: 35 mm | Bc: 32 mm | C: 28.3 kN | C0: 53.1 kN | Speed (grease): 8500 rpm
K333722PCSP Fw: 33 mm | Ew: 37 mm | Bc: 22 mm | C: 18.9 kN | C0: 39 kN | Speed (grease): 8500 rpm
K333726ZWPCSP Fw: 33 mm | Ew: 37 mm | Bc: 26 mm | C: 20.1 kN | C0: 42 kN | Speed (grease): 8500 rpm
K374227PCSP Fw: 37 mm | Ew: 42 mm | Bc: 27 mm | C: 28 kN | C0: 57 kN | Speed (grease): 7500 rpm
K384224ZWPCSP Fw: 38 mm | Ew: 42 mm | Bc: 24 mm | C: 21.6 kN | C0: 47.6 kN | Speed (grease): 7500 rpm
K384228ZWPCSP Fw: 38 mm | Ew: 42 mm | Bc: 28 mm | C: 23 kN | C0: 51 kN | Speed (grease): 7500 rpm
K384329ZWPCSP Fw: 38 mm | Ew: 43 mm | Bc: 29 mm | C: 30.1 kN | C0: 62.2 kN | Speed (grease): 7500 rpm
K424719PCSP Fw: 42 mm | Ew: 47 mm | Bc: 19 mm | C: 22.7 kN | C0: 44.8 kN | Speed (grease): 6500 rpm
K434831ZWPC Fw: 43 mm | Ew: 48 mm | Bc: 31 mm | C: 34 kN | C0: 75.8 kN | Speed (grease): 6500 rpm
K475234ZWPC Fw: 47 mm | Ew: 52 mm | Bc: 34 mm | C: 39.5 kN | C0: 97 kN | Speed (grease): 5500 rpm
K141909F1F2PC Fw: 14 mm | Ew: 19 mm | Bc: 9 mm | C: 5.4 kN | C0: 5.7 kN | Speed (grease): 20000 rpm
K172113PC Fw: 17 mm | Ew: 21 mm | Bc: 13 mm | C: 10.6 kN | C0: 14.8 kN | Speed (grease): 17000 rpm
K192417PC Fw: 19 mm | Ew: 24 mm | Bc: 17 mm | C: 12.1 kN | C0: 15.5 kN | Speed (grease): 15000 rpm
K192745ZWPC Fw: 19 mm | Ew: 27 mm | Bc: 45 mm | C: 45 kN | C0: 62 kN | Speed (grease): 14000 rpm
K343929ZWPCSP Fw: 34 mm | Ew: 39 mm | Bc: 29 mm | C: 30.4 kN | C0: 60.7 kN | Speed (grease): 9000 rpm
K384224SR2HL4ZWPC Fw: 38 mm | Ew: 42 mm | Bc: 24 mm | C: 21.6 kN | C0: 47.6 kN | Speed (grease): 8000 rpm
K434825ZWPCh Fw: 43 mm | Ew: 48 mm | Bc: 25 mm | C: 28.7 kN | C0: 64.4 kN | Speed (grease): 7000 rpm
K465125ZWPCh Fw: 46 mm | Ew: 51 mm | Bc: 35 mm | C: 29.6 kN | C0: 68.6 kN | Speed (grease): 7000 rpm
K465132ZWPCSPh Fw: 46 mm | Ew: 51 mm | Bc: 32 mm | C: 38.3 kN | C0: 90.5 kN | Speed (grease): 7000 rpm
K475234ZWPCSP Fw: 47 mm | Ew: 52 mm | Bc: 34 mm | C: 40.2 kN | C0: 97 kN | Speed (grease): 6500 rpm
K505525ZWPCh Fw: 50 mm | Ew: 55 mm | Bc: 25 mm | C: 31 kN | C0: 74.8 kN | Speed (grease): 6500 rpm
K586324HL4ZWPC Fw: 58 mm | Ew: 63 mm | Bc: 24 mm | C: 32.1 kN | C0: 77.9 kN | Speed (grease): 5500 rpm
Needle Roller BearingsKBC Bearings
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC K Series Needle Roller and Cage Assemblies (K, K...ZW)

Brand KBC Bearings·Needle Roller Bearings

Available part numbers (29)

K202410PC, K203019PC, K253024PCSP, K253026ZWPCSP, K263031ZWPCSP, K283213PCSP, K303525PCSP, K303532ZWPCSP, K333722PCSP, K333726ZWPCSP + 19 more — see full table ↓

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K202410PCFw: 20 mm | Ew: 24 mm | Bc: 10 mm | C: 9.1 kN | C0: 12.8 kN | Speed (grease): 13000 rpm
K203019PCFw: 20 mm | Ew: 30 mm | Bc: 19 mm | C: 28.2 kN | C0: 30.4 kN | Speed (grease): 13000 rpm
K253024PCSPFw: 25 mm | Ew: 30 mm | Bc: 24 mm | C: 21.4 kN | C0: 34.9 kN | Speed (grease): 11000 rpm
K253026ZWPCSPFw: 25 mm | Ew: 30 mm | Bc: 26 mm | C: 21.7 kN | C0: 36.6 kN | Speed (grease): 11000 rpm
K263031ZWPCSPFw: 26 mm | Ew: 30 mm | Bc: 31 mm | C: 12.4 kN | C0: 20.5 kN | Speed (grease): 10000 rpm
K283213PCSPFw: 28 mm | Ew: 32 mm | Bc: 13 mm | C: 11.2 kN | C0: 18.5 kN | Speed (grease): 9500 rpm
K303525PCSPFw: 30 mm | Ew: 35 mm | Bc: 25 mm | C: 23.3 kN | C0: 41.3 kN | Speed (grease): 8500 rpm
K303532ZWPCSPFw: 30 mm | Ew: 35 mm | Bc: 32 mm | C: 28.3 kN | C0: 53.1 kN | Speed (grease): 8500 rpm
K333722PCSPFw: 33 mm | Ew: 37 mm | Bc: 22 mm | C: 18.9 kN | C0: 39 kN | Speed (grease): 8500 rpm
K333726ZWPCSPFw: 33 mm | Ew: 37 mm | Bc: 26 mm | C: 20.1 kN | C0: 42 kN | Speed (grease): 8500 rpm
K374227PCSPFw: 37 mm | Ew: 42 mm | Bc: 27 mm | C: 28 kN | C0: 57 kN | Speed (grease): 7500 rpm
K384224ZWPCSPFw: 38 mm | Ew: 42 mm | Bc: 24 mm | C: 21.6 kN | C0: 47.6 kN | Speed (grease): 7500 rpm
K384228ZWPCSPFw: 38 mm | Ew: 42 mm | Bc: 28 mm | C: 23 kN | C0: 51 kN | Speed (grease): 7500 rpm
K384329ZWPCSPFw: 38 mm | Ew: 43 mm | Bc: 29 mm | C: 30.1 kN | C0: 62.2 kN | Speed (grease): 7500 rpm
K424719PCSPFw: 42 mm | Ew: 47 mm | Bc: 19 mm | C: 22.7 kN | C0: 44.8 kN | Speed (grease): 6500 rpm
K434831ZWPCFw: 43 mm | Ew: 48 mm | Bc: 31 mm | C: 34 kN | C0: 75.8 kN | Speed (grease): 6500 rpm
K475234ZWPCFw: 47 mm | Ew: 52 mm | Bc: 34 mm | C: 39.5 kN | C0: 97 kN | Speed (grease): 5500 rpm
K141909F1F2PCFw: 14 mm | Ew: 19 mm | Bc: 9 mm | C: 5.4 kN | C0: 5.7 kN | Speed (grease): 20000 rpm
K172113PCFw: 17 mm | Ew: 21 mm | Bc: 13 mm | C: 10.6 kN | C0: 14.8 kN | Speed (grease): 17000 rpm
K192417PCFw: 19 mm | Ew: 24 mm | Bc: 17 mm | C: 12.1 kN | C0: 15.5 kN | Speed (grease): 15000 rpm
K192745ZWPCFw: 19 mm | Ew: 27 mm | Bc: 45 mm | C: 45 kN | C0: 62 kN | Speed (grease): 14000 rpm
K343929ZWPCSPFw: 34 mm | Ew: 39 mm | Bc: 29 mm | C: 30.4 kN | C0: 60.7 kN | Speed (grease): 9000 rpm
K384224SR2HL4ZWPCFw: 38 mm | Ew: 42 mm | Bc: 24 mm | C: 21.6 kN | C0: 47.6 kN | Speed (grease): 8000 rpm
K434825ZWPChFw: 43 mm | Ew: 48 mm | Bc: 25 mm | C: 28.7 kN | C0: 64.4 kN | Speed (grease): 7000 rpm
K465125ZWPChFw: 46 mm | Ew: 51 mm | Bc: 35 mm | C: 29.6 kN | C0: 68.6 kN | Speed (grease): 7000 rpm
K465132ZWPCSPhFw: 46 mm | Ew: 51 mm | Bc: 32 mm | C: 38.3 kN | C0: 90.5 kN | Speed (grease): 7000 rpm
K475234ZWPCSPFw: 47 mm | Ew: 52 mm | Bc: 34 mm | C: 40.2 kN | C0: 97 kN | Speed (grease): 6500 rpm
K505525ZWPChFw: 50 mm | Ew: 55 mm | Bc: 25 mm | C: 31 kN | C0: 74.8 kN | Speed (grease): 6500 rpm
K586324HL4ZWPCFw: 58 mm | Ew: 63 mm | Bc: 24 mm | C: 32.1 kN | C0: 77.9 kN | Speed (grease): 5500 rpm
