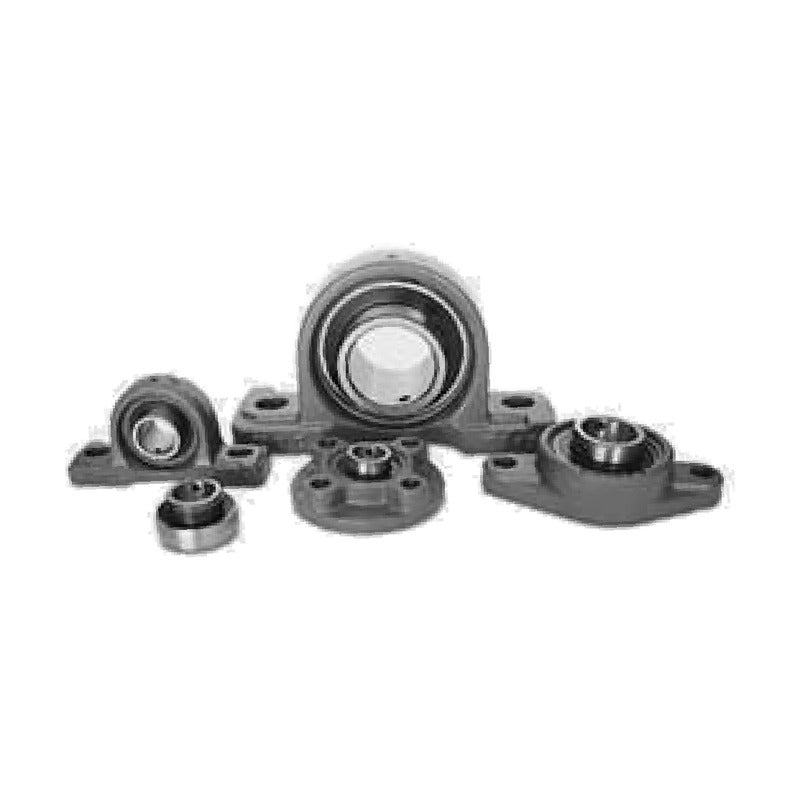

KBC P2 Grey-Cast Plummer Block Housings (P204-P213)

KBC P2 Grey-Cast Plummer Block Housings (P204-P213)

KBC P2 series grey-cast-iron plummer block (pillow block) housings for UC2 / UB2 insert bearings, shaft sizes 20-65 mm. Assembled with an insert bearing they form a UCP-type mounted unit.

Key features

  • Grey cast iron two-bolt base housing
  • Spherical seat accepts UC2 / UB2 insert bearings
  • Grease nipple for relubrication
  • To KS B 2050

Specifications

Material Grey cast iron
Mounting Two-bolt base
Standard KS B 2050
Source KBC Rolling Bearings catalogue GB 41 500, p. 206-207
P204 Shaft: 20 mm | Bearing: UC204 | h: 33.3 mm | a: 127 mm | Bolt: M10 | Unit mass: 0.68 kg
P205 Shaft: 25 mm | Bearing: UC205 | h: 36.5 mm | a: 140 mm | Bolt: M10 | Unit mass: 0.82 kg
P206 Shaft: 30 mm | Bearing: UC206 | h: 42.9 mm | a: 165 mm | Bolt: M14 | Unit mass: 1.36 kg
P207 Shaft: 35 mm | Bearing: UC207 | h: 47.6 mm | a: 167 mm | Bolt: M14 | Unit mass: 1.73 kg
P208 Shaft: 40 mm | Bearing: UC208 | h: 49.2 mm | a: 184 mm | Bolt: M14 | Unit mass: 2.1 kg
P209 Shaft: 45 mm | Bearing: UC209 | h: 54 mm | a: 190 mm | Bolt: M14 | Unit mass: 2.3 kg
P210 Shaft: 50 mm | Bearing: UC210 | h: 57.2 mm | a: 206 mm | Bolt: M16 | Unit mass: 2.7 kg
P211 Shaft: 55 mm | Bearing: UC211 | h: 63.5 mm | a: 219 mm | Bolt: M16 | Unit mass: 3.4 kg
P212 Shaft: 60 mm | Bearing: UC212 | h: 69.8 mm | a: 241 mm | Bolt: M16 | Unit mass: 4.8 kg
P213 Shaft: 65 mm | Bearing: UC213 | h: 76.2 mm | a: 265 mm | Bolt: M20 | Unit mass: 5.7 kg
Bearing HousingsKBC Bearings
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC P2 Grey-Cast Plummer Block Housings (P204-P213)

Brand KBC Bearings·Bearing Housings

Available part numbers (10)

P204, P205, P206, P207, P208, P209, P210, P211, P212, P213

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P204Shaft: 20 mm | Bearing: UC204 | h: 33.3 mm | a: 127 mm | Bolt: M10 | Unit mass: 0.68 kg
P205Shaft: 25 mm | Bearing: UC205 | h: 36.5 mm | a: 140 mm | Bolt: M10 | Unit mass: 0.82 kg
P206Shaft: 30 mm | Bearing: UC206 | h: 42.9 mm | a: 165 mm | Bolt: M14 | Unit mass: 1.36 kg
P207Shaft: 35 mm | Bearing: UC207 | h: 47.6 mm | a: 167 mm | Bolt: M14 | Unit mass: 1.73 kg
P208Shaft: 40 mm | Bearing: UC208 | h: 49.2 mm | a: 184 mm | Bolt: M14 | Unit mass: 2.1 kg
P209Shaft: 45 mm | Bearing: UC209 | h: 54 mm | a: 190 mm | Bolt: M14 | Unit mass: 2.3 kg
P210Shaft: 50 mm | Bearing: UC210 | h: 57.2 mm | a: 206 mm | Bolt: M16 | Unit mass: 2.7 kg
P211Shaft: 55 mm | Bearing: UC211 | h: 63.5 mm | a: 219 mm | Bolt: M16 | Unit mass: 3.4 kg
P212Shaft: 60 mm | Bearing: UC212 | h: 69.8 mm | a: 241 mm | Bolt: M16 | Unit mass: 4.8 kg
P213Shaft: 65 mm | Bearing: UC213 | h: 76.2 mm | a: 265 mm | Bolt: M20 | Unit mass: 5.7 kg
