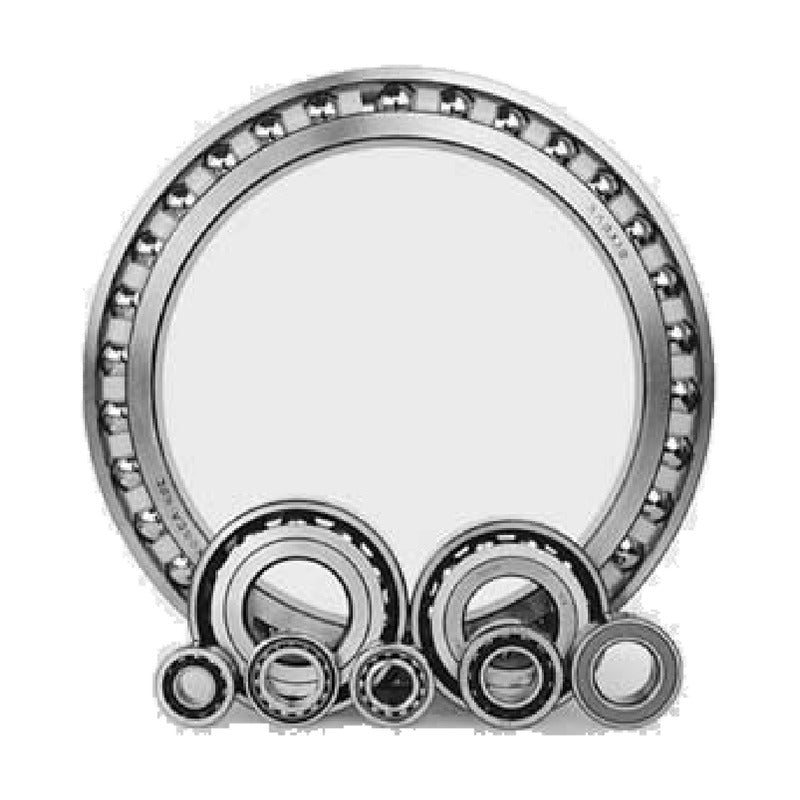

KBC SA Series Large Single-Row Angular Contact Ball Bearings

KBC SA Series Large Single-Row Angular Contact Ball Bearings

KBC SA series single-row angular contact ball bearings of special dimensions with bores from 230 to 300 mm. They are intended for large slewing and rotary applications needing high axial capacity in a slim section.

Key features

  • Special-dimension single-row angular contact design (prefix SA)
  • Large bore sizes 230-300 mm with thin cross-section
  • High static load ratings for axial and combined loads
  • Width B1 of the outer ring differs from inner ring width B

Specifications

Rows Single row
Series SA (special dimension)
Bore range 230-300 mm
Source KBC Rolling Bearings catalogue GB 41 500, p. 166-167
SA0300h d: 230 mm | D: 300 mm | B: 33 mm | C: 165 kN | C0: 228 kN
SA0300 d: 230 mm | D: 300 mm | B: 35 mm | C: 165 kN | C0: 228 kN
SA0330 d: 250 mm | D: 330 mm | B: 38 mm | C: 205 kN | C0: 281 kN
SA0340 d: 260 mm | D: 340 mm | B: 38 mm | C: 212 kN | C0: 299 kN
SA0355 d: 289 mm | D: 355 mm | B: 33 mm | C: 182 kN | C0: 279 kN
SA0370 d: 300 mm | D: 370 mm | B: 33 mm | C: 188 kN | C0: 292 kN
SA0372 d: 300 mm | D: 372 mm | B: 36 mm | C: 217 kN | C0: 322 kN
Angular Contact Ball BearingsKBC Bearings
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KBC SA Series Large Single-Row Angular Contact Ball Bearings

Brand KBC Bearings·Angular Contact Ball Bearings

Available part numbers (7)

SA0300h, SA0300, SA0330, SA0340, SA0355, SA0370, SA0372

How to order

Send the KBC Bearings part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SA0300hd: 230 mm | D: 300 mm | B: 33 mm | C: 165 kN | C0: 228 kN
SA0300d: 230 mm | D: 300 mm | B: 35 mm | C: 165 kN | C0: 228 kN
SA0330d: 250 mm | D: 330 mm | B: 38 mm | C: 205 kN | C0: 281 kN
SA0340d: 260 mm | D: 340 mm | B: 38 mm | C: 212 kN | C0: 299 kN
SA0355d: 289 mm | D: 355 mm | B: 33 mm | C: 182 kN | C0: 279 kN
SA0370d: 300 mm | D: 370 mm | B: 33 mm | C: 188 kN | C0: 292 kN
SA0372d: 300 mm | D: 372 mm | B: 36 mm | C: 217 kN | C0: 322 kN
