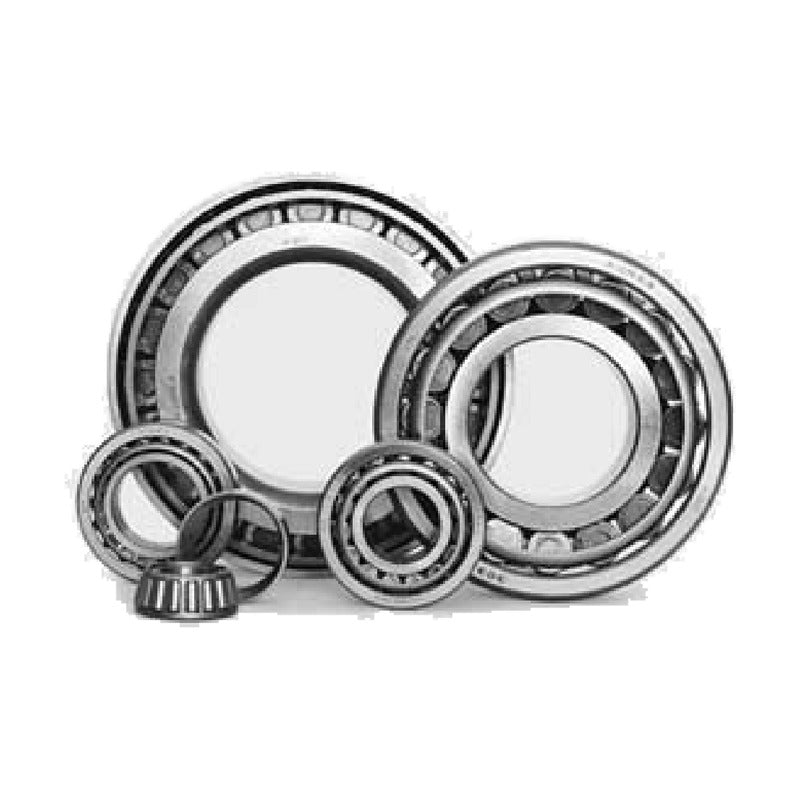

KBC TR Non-Standard Metric Tapered Roller Bearings

KBC TR Non-Standard Metric Tapered Roller Bearings

KBC TR prefix non-standard single-row tapered roller bearings with metric boundary dimensions outside the ISO 355 plan. The designation encodes bore, outside diameter and width (e.g. TR286322 = 28 x 63 x 22 mm).

Key features

  • Prefix TR denotes KBC non-standard tapered roller bearing
  • Designation built from bore, outside diameter and width
  • Separable cone and cup assemblies
  • Developed for automotive transmissions and axles

Specifications

Rows Single row
Series TR (non-standard metric)
Source KBC Rolling Bearings catalogue GB 41 500, p. 180-187; extra codes: KBC Ball Bearing catalogue GB 41 500/2 (Korean ed.)
TR244113 d: 24 mm | D: 41 mm | T: 12.5 mm | C: 13 kN | C0: 15 kN | Mass: 0.11 kg
TR285014 d: 28 mm | D: 50.292 mm | T: 14.224 mm | C: 27.4 kN | C0: 34.6 kN | Mass: 0.122 kg
TR285216 d: 28 mm | D: 52 mm | T: 16 mm | C: 33.9 kN | C0: 40.6 kN | Mass: 0.149 kg
TR285717 d: 28 mm | D: 57 mm | T: 17 mm | C: 42 kN | C0: 48.8 kN | Mass: 0.202 kg
TR286220 d: 28 mm | D: 62 mm | T: 19.75 mm | C: 48.6 kN | C0: 56.6 kN | Mass: 0.282 kg
TR286322 d: 28 mm | D: 63 mm | T: 22.25 mm | C: 59.8 kN | C0: 65.7 kN | Mass: 0.295 kg
TR286322h d: 28 mm | D: 63 mm | T: 22.25 mm | C: 59.8 kN | C0: 65.7 kN | Mass: 0.299 kg
TR286819 d: 28 mm | D: 68 mm | T: 19.75 mm | C: 53 kN | C0: 53.5 kN | Mass: 0.336 kg
TR306217 d: 30 mm | D: 62 mm | T: 17.25 mm | C: 45.5 kN | C0: 32 kN | Mass: 0.237 kg
TR306217C d: 30 mm | D: 62 mm | T: 17.7 mm | C: 42.5 kN | C0: 32 kN | Mass: 0.225 kg
TR407215 d: 40 mm | D: 72 mm | T: 15.5 mm | C: 48 kN | C0: 54 kN | Mass: 0.252 kg
TR459536 d: 45 mm | D: 95 mm | T: 36 mm | C: 138 kN | C0: 172 kN | Mass: 1.217 kg
TR5011444 d: 50 mm | D: 114.3 mm | T: 44.45 mm | C: 189 kN | C0: 235 kN | Mass: 2.244 kg
TR5510032 d: 55 mm | D: 100 mm | T: 32 mm | C: 125 kN | C0: 163 kN | Mass: 1.052 kg
TR6513051 d: 65 mm | D: 130 mm | T: 51 mm | C: 251 kN | C0: 219 kN | Mass: 3.036 kg
TR9015038 d: 90 mm | D: 150 mm | T: 38.5 mm | C: 203 kN | C0: 288 kN | Mass: 2.549 kg
TR9516042 d: 95 mm | D: 160 mm | T: 42.5 mm | C: 247 kN | C0: 363 kN | Mass: 3.309 kg
TR225019HL1 d: 22 mm | D: 50 mm | T: 19.25 mm | C: 38.9 kN | C0: 42 kN
TR285518HL1 d: 28 mm | D: 55 mm | T: 18 mm | C: 42.9 kN | C0: 49.5 kN
TR305216g d: 30 mm | D: 52 mm | T: 16 mm | C: 26.5 kN | C0: 35 kN
TR357228HL1 d: 35 mm | D: 72 mm | T: 28.75 mm | C: 83.6 kN | C0: 117.3 kN
TR358023gHL4 d: 35 mm | D: 80 mm | T: 22.75 mm | C: 81.2 kN | C0: 85.8 kN
TR406519HL1 d: 40 mm | D: 65 mm | T: 19 mm | C: 45.1 kN | C0: 67 kN
TR406818HL3F2 d: 40 mm | D: 68 mm | T: 18 mm | C: 47.8 kN | C0: 64.3 kN
TR408021gHL4 d: 40 mm | D: 80 mm | T: 21 mm | C: 75.4 kN | C0: 86.1 kN
TR459535HL1 d: 45 mm | D: 95.25 mm | T: 35 mm | C: 120.6 kN | C0: 150.4 kN
TR478521HL1 d: 47 mm | D: 85 mm | T: 20.75 mm | C: 58 kN | C0: 97.3 kN | Mass: 1.17 kg
TR508522HL1 d: 50 mm | D: 85 mm | T: 21.75 mm | C: 74.7 kN | C0: 102.9 kN
TR558521HL3 d: 55 mm | D: 70.719 mm | T: 21 mm | C: 61.4 kN | C0: 92 kN
TR608823 d: 60 mm | D: 88 mm | T: 23 mm | C: 66.3 kN | C0: 105.9 kN
