• KNIPEX Insulated High Leverage Diagonal Cutter 74 06 Series
1 1

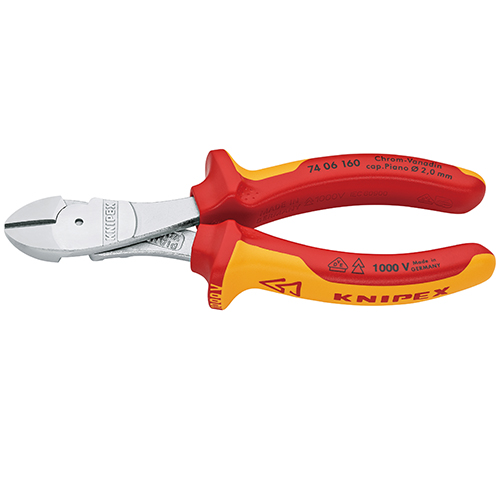

KNIPEX Insulated High Leverage Diagonal Cutter 74 06 Series

KNIPEX Insulated High Leverage Diagonal Cutter 74 06 Series

KNIPEX 74 06 series insulated high leverage diagonal cutter.

Key features

  • Chrome finish
  • Hardness: 64 HRC
  • Optimized angle and force ratio for high cutting with minimal force
  • Cuts piano wire and all wire types. 1000V insulated
  • Available: 74 06 160 SB / 74 06 180 SB / 74 06 200 SB
  • Wire: 3.4–4.2mm / hard wire: 2.5–3.0mm / piano wire: 2.0–2.5mm
215-7278 Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | Model: 74 06 160 SB | Size: 6 in | Length: 160mm | Wire: 3.4mm | Hard wire: 2.5mm | Piano wire: 2.0mm | Weight: 215g
217-2143 Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | Model: 74 06 180 SB | Size: 7 in | Length: 180mm | Wire: 3.8mm | Hard wire: 2.7mm | Piano wire: 2.2mm | Weight: 280g
215-6905 Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | Model: 74 06 200 SB | Size: 8 in | Length: 200mm | Wire: 4.2mm | Hard wire: 3.0mm | Piano wire: 2.5mm | Weight: 308g
NippersKNIPEX
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KNIPEX Insulated High Leverage Diagonal Cutter 74 06 Series

Brand KNIPEX·Nippers

Available part numbers (3)

215-7278, 217-2143, 215-6905

How to order

Send the KNIPEX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
215-7278Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | Model: 74 06 160 SB | Size: 6 in | Length: 160mm | Wire: 3.4mm | Hard wire: 2.5mm | Piano wire: 2.0mm | Weight: 215g
217-2143Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | Model: 74 06 180 SB | Size: 7 in | Length: 180mm | Wire: 3.8mm | Hard wire: 2.7mm | Piano wire: 2.2mm | Weight: 280g
215-6905Insulated high leverage diagonal cutter. 1000V. Piano wire cutting. Blade: 64 HRC. | Model: 74 06 200 SB | Size: 8 in | Length: 200mm | Wire: 4.2mm | Hard wire: 3.0mm | Piano wire: 2.5mm | Weight: 308g
