KOINO KTS-P/C Test Terminal Blocks, Plugs and Sets (10 A, 3P/4P)

KOINO KTS-P/C Test Terminal Blocks, Plugs and Sets (10 A, 3P/4P)

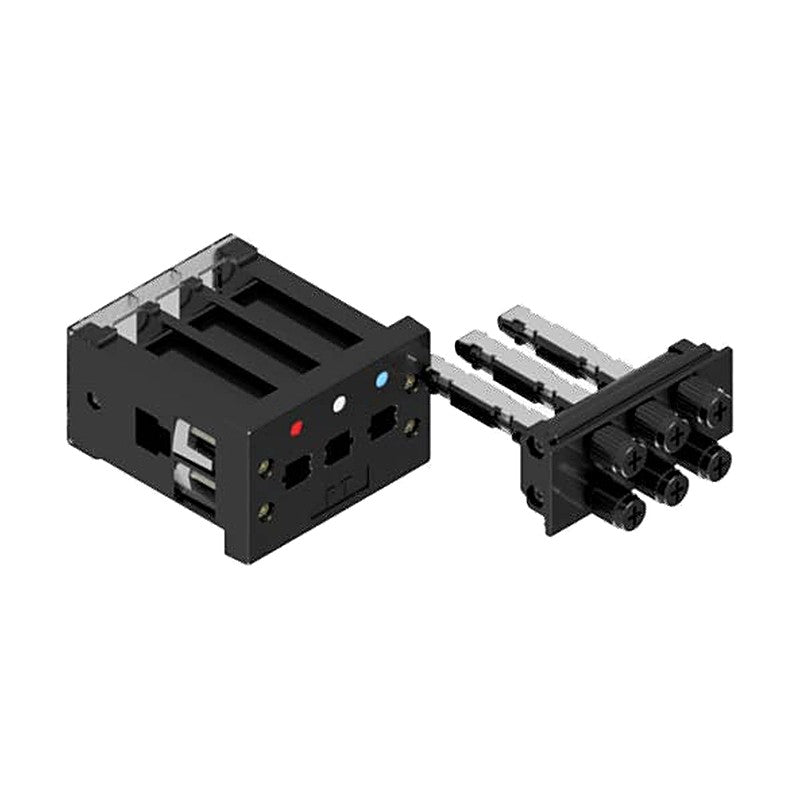

KOINO KTS-P/C series panel-mount test terminal blocks (KTB), terminal plugs (KTP) and complete sets (KTS) for current (C, black) and potential (P, red) circuits, 250 V 10 A, 3 or 4 poles, IP40 or IP65 (W).

Key features

  • Model number: K + TB (test terminal block) / TP (terminal plug) / TS (terminal set) + W for IP65 (no mark = IP40) - P (potential, red front) or C (current, black front) - 3P or 4P
  • Current-type blocks have make-before-break contacts so the CT circuit is never opened while the KTP plug is inserted; a short bar is shown on catalog p. 439
  • Front-panel colour identifies the type: black for current (C), red for potential (P)
  • Tightening the four front screws clockwise turns out the captive fixing nuts to clamp the block to the panel (max. 8 mm thick) without rear access
  • Rated 250 V 10 A; insulation resistance 100 MOhm; withstand 2,500 VAC for 1 minute; M4 terminal bolts for 2 sq mm wire
  • Body glass-filled nylon (25%), brass terminals; outline, circuit diagram and panel cut-out on catalog p. 439

Specifications

Rating 250 V, 10 A
Insulation resistance 100 MOhm
Withstand voltage 2,500 VAC, 1 min
Applicable wire 2 sq mm
Terminal bolt M4
Body / terminal Nylon glass 25% / brass
Max. panel thickness 8 mm
Source KOINO general catalog 5th ed., p. 416, 438-439
KTB-P-3P Item: Test terminal block | Protection: IP40 | Type: Potential (red) | Poles: 3P
KTB-P-4P Item: Test terminal block | Protection: IP40 | Type: Potential (red) | Poles: 4P
KTB-C-3P Item: Test terminal block | Protection: IP40 | Type: Current (black) | Poles: 3P
KTB-C-4P Item: Test terminal block | Protection: IP40 | Type: Current (black) | Poles: 4P
KTBW-P-3P Item: Test terminal block | Protection: IP65 | Type: Potential (red) | Poles: 3P
KTBW-P-4P Item: Test terminal block | Protection: IP65 | Type: Potential (red) | Poles: 4P
KTBW-C-3P Item: Test terminal block | Protection: IP65 | Type: Current (black) | Poles: 3P
KTBW-C-4P Item: Test terminal block | Protection: IP65 | Type: Current (black) | Poles: 4P
KTP-P-3P Item: Terminal plug | Protection: IP40 | Type: Potential (red) | Poles: 3P
KTP-P-4P Item: Terminal plug | Protection: IP40 | Type: Potential (red) | Poles: 4P
KTP-C-3P Item: Terminal plug | Protection: IP40 | Type: Current (black) | Poles: 3P
KTP-C-4P Item: Terminal plug | Protection: IP40 | Type: Current (black) | Poles: 4P
KTPW-P-3P Item: Terminal plug | Protection: IP65 | Type: Potential (red) | Poles: 3P
KTPW-P-4P Item: Terminal plug | Protection: IP65 | Type: Potential (red) | Poles: 4P
KTPW-C-3P Item: Terminal plug | Protection: IP65 | Type: Current (black) | Poles: 3P
KTPW-C-4P Item: Terminal plug | Protection: IP65 | Type: Current (black) | Poles: 4P
KTS-P-3P Item: Terminal set (block + plug) | Protection: IP40 | Type: Potential (red) | Poles: 3P
KTS-P-4P Item: Terminal set (block + plug) | Protection: IP40 | Type: Potential (red) | Poles: 4P
KTS-C-3P Item: Terminal set (block + plug) | Protection: IP40 | Type: Current (black) | Poles: 3P
KTS-C-4P Item: Terminal set (block + plug) | Protection: IP40 | Type: Current (black) | Poles: 4P
KTSW-P-3P Item: Terminal set (block + plug) | Protection: IP65 | Type: Potential (red) | Poles: 3P
KTSW-P-4P Item: Terminal set (block + plug) | Protection: IP65 | Type: Potential (red) | Poles: 4P
KTSW-C-3P Item: Terminal set (block + plug) | Protection: IP65 | Type: Current (black) | Poles: 3P
KTSW-C-4P Item: Terminal set (block + plug) | Protection: IP65 | Type: Current (black) | Poles: 4P
