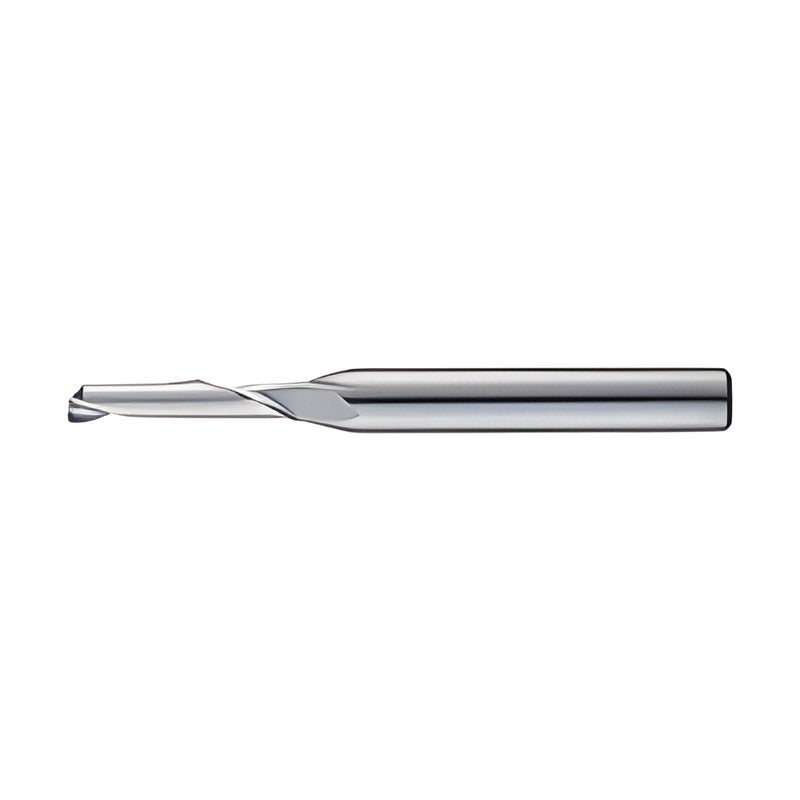

Korloy 1 Flute Flat End Mill WAE301

Korloy 1 Flute Flat End Mill WAE301

1 flute flat end mill from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 30° helix angle
  • Uncoated

Specifications

Helix angle 30°
Coating Uncoated
Shank tolerance h5
WAE301002 D (mm): 0.2 | Shank d (mm): 4 | Flute length (mm): 0.3 | L (mm): 40
WAE301003 D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 0.9 | L (mm): 40
WAE301004 D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.2 | L (mm): 40
WAE301005 D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 1.5 | L (mm): 40
WAE301006 D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 1.8 | L (mm): 40
WAE301007 D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.1 | L (mm): 40
WAE301008 D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 2.4 | L (mm): 40
WAE301009 D (mm): 0.9 | Shank d (mm): 4 | Flute length (mm): 2.7 | L (mm): 40
WAE301010 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 45
WAE301010-4.5 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 4.5 | L (mm): 45
WAE301010-6 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301012 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 45
WAE301012-5 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 5 | L (mm): 45
WAE301012-6 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301015 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 45
WAE301015-6 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301015-8 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301020 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301020-8 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301020-10 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAE301025 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
WAE301025-8 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301025-10 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAE301025-12 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAE301030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301030-12 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAE301030-15 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAE301040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAE301040-15 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAE301040-20 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAE301050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 60
WAE301050-20 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAE301050-25 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 60
WAE301060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
WAE301060-20 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAE301060-25 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 60
WAE301080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
WAE301080-25 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 25 | L (mm): 75
WAE301100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75
WAE301100-30 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 80
WAE301120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 75
WAE301120-35 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 90
End MillsKorloy
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 1 Flute Flat End Mill WAE301

Brand Korloy·End Mills

Available part numbers (42)

WAE301002, WAE301003, WAE301004, WAE301005, WAE301006, WAE301007, WAE301008, WAE301009, WAE301010, WAE301010-4.5 + 32 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAE301002D (mm): 0.2 | Shank d (mm): 4 | Flute length (mm): 0.3 | L (mm): 40
WAE301003D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 0.9 | L (mm): 40
WAE301004D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.2 | L (mm): 40
WAE301005D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 1.5 | L (mm): 40
WAE301006D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 1.8 | L (mm): 40
WAE301007D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.1 | L (mm): 40
WAE301008D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 2.4 | L (mm): 40
WAE301009D (mm): 0.9 | Shank d (mm): 4 | Flute length (mm): 2.7 | L (mm): 40
WAE301010D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 45
WAE301010-4.5D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 4.5 | L (mm): 45
WAE301010-6D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301012D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 45
WAE301012-5D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 5 | L (mm): 45
WAE301012-6D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301015D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 45
WAE301015-6D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301015-8D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301020D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE301020-8D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301020-10D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAE301025D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
WAE301025-8D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301025-10D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAE301025-12D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAE301030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
WAE301030-12D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAE301030-15D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAE301040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAE301040-15D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAE301040-20D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAE301050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 60
WAE301050-20D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAE301050-25D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 60
WAE301060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
WAE301060-20D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAE301060-25D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 60
WAE301080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
WAE301080-25D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 25 | L (mm): 75
WAE301100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75
WAE301100-30D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 80
WAE301120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 75
WAE301120-35D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 90
