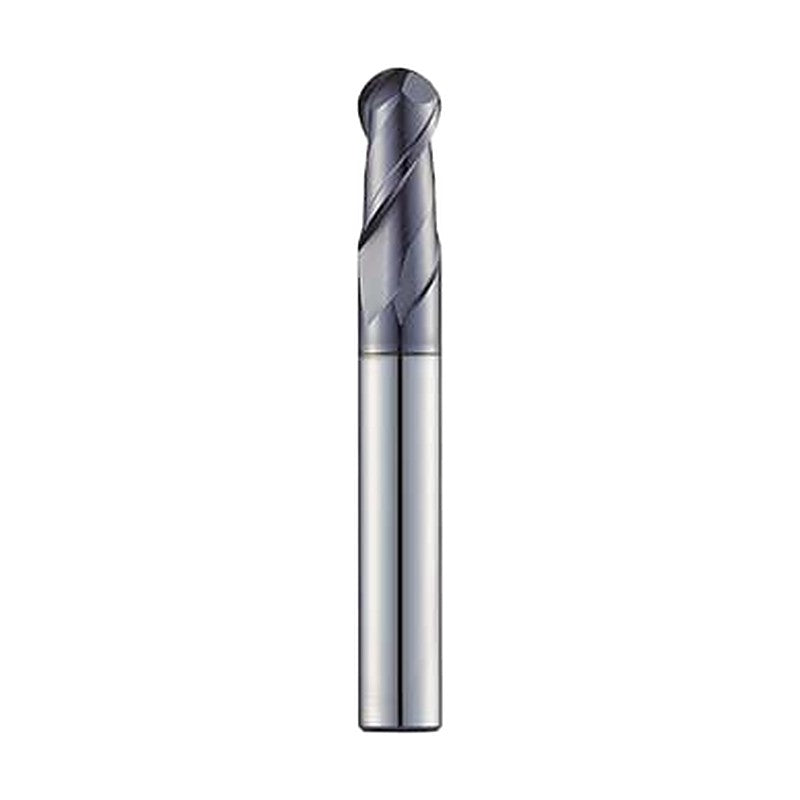

Korloy 2 Flutes Ball End Mill SB502

Korloy 2 Flutes Ball End Mill SB502

2 flutes ball end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 38° helix angle
  • AlCrN coating

Specifications

Helix angle 38°
Coating AlCrN
Shank tolerance h5
SB502010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SB502020 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SB502030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
SB502030L R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 70
SB502040 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
SB502040L R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 70
SB502050 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
SB502050L R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
SB502060 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
SB502060L R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
SB502080 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 60
SB502080L R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
SB502100 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
SB502100L R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
SB502120 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 75
SB502120L R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
Ball End MillsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Ball End Mill SB502

Brand Korloy·Ball End Mills

Available part numbers (16)

SB502010, SB502020, SB502030, SB502030L, SB502040, SB502040L, SB502050, SB502050L, SB502060, SB502060L + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SB502010R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SB502020R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SB502030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
SB502030LR (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 70
SB502040R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
SB502040LR (mm): 2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 70
SB502050R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
SB502050LR (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
SB502060R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
SB502060LR (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
SB502080R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 60
SB502080LR (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
SB502100R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
SB502100LR (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
SB502120R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 75
SB502120LR (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
