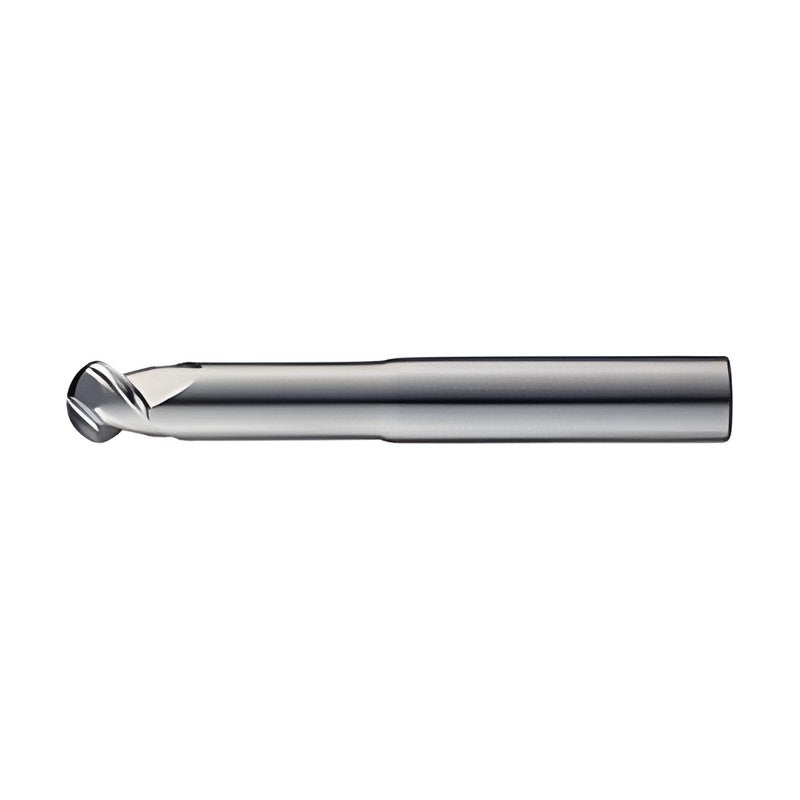

Korloy 2 Flutes Ball Nose End Mill WAB312

Korloy 2 Flutes Ball Nose End Mill WAB312

2 flutes ball nose end mill from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 50° helix angle
  • Uncoated

Specifications

Helix angle 50°
Coating Uncoated
Shank tolerance h6
WAB312060 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 5.5 | l2 (mm): 25 | L (mm): 55
WAB312061 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 5.5 | l2 (mm): 40 | L (mm): 90
WAB312080 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 7 | l2 (mm): 30 | L (mm): 65
WAB312081 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 7 | l2 (mm): 50 | L (mm): 100
WAB312100 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 8.5 | l2 (mm): 35 | L (mm): 75
WAB312101 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 10 | l2 (mm): 50 | L (mm): 100
WAB312102 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 10 | l2 (mm): 60 | L (mm): 150
WAB312120 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 10.5 | l2 (mm): 40 | L (mm): 75
WAB312121 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 50 | L (mm): 110
WAB312122 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 60 | L (mm): 150
WAB312160 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 14 | l2 (mm): 50 | L (mm): 90
WAB312161 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 16 | l2 (mm): 70 | L (mm): 150
WAB312162 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 16 | l2 (mm): 90 | L (mm): 200
WAB312200 R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | l1 (mm): 17 | l2 (mm): 50 | L (mm): 100
Ball End MillsKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Ball Nose End Mill WAB312

Brand Korloy·Ball End Mills

Available part numbers (14)

WAB312060, WAB312061, WAB312080, WAB312081, WAB312100, WAB312101, WAB312102, WAB312120, WAB312121, WAB312122 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAB312060R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 5.5 | l2 (mm): 25 | L (mm): 55
WAB312061R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 5.5 | l2 (mm): 40 | L (mm): 90
WAB312080R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 7 | l2 (mm): 30 | L (mm): 65
WAB312081R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 7 | l2 (mm): 50 | L (mm): 100
WAB312100R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 8.5 | l2 (mm): 35 | L (mm): 75
WAB312101R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 10 | l2 (mm): 50 | L (mm): 100
WAB312102R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 10 | l2 (mm): 60 | L (mm): 150
WAB312120R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 10.5 | l2 (mm): 40 | L (mm): 75
WAB312121R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 50 | L (mm): 110
WAB312122R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 60 | L (mm): 150
WAB312160R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 14 | l2 (mm): 50 | L (mm): 90
WAB312161R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 16 | l2 (mm): 70 | L (mm): 150
WAB312162R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 16 | l2 (mm): 90 | L (mm): 200
WAB312200R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | l1 (mm): 17 | l2 (mm): 50 | L (mm): 100
