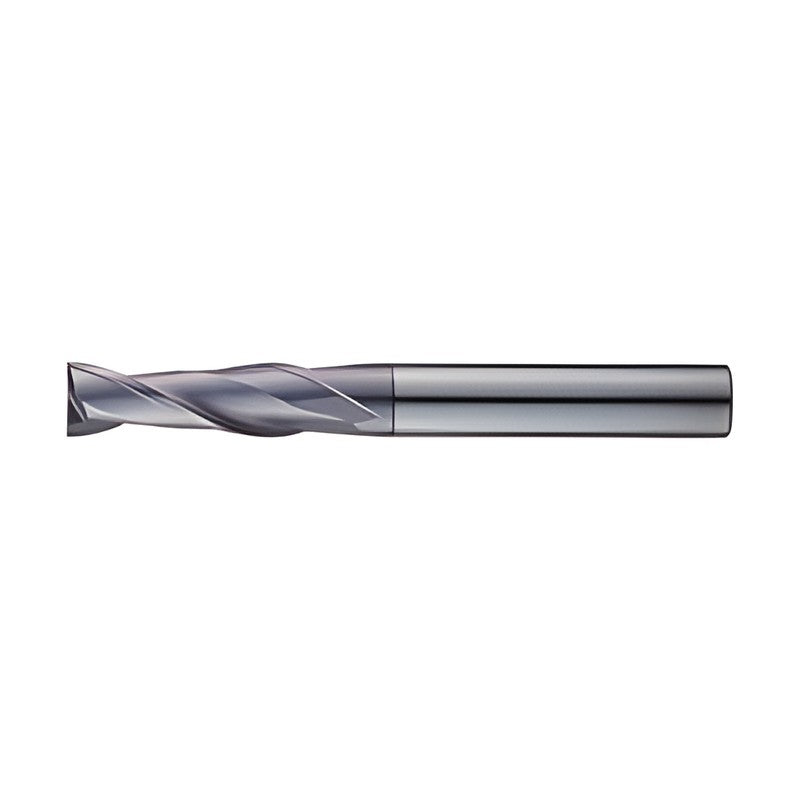

Korloy 2 Flutes Extra Long Flat End Mill ZE322

Korloy 2 Flutes Extra Long Flat End Mill ZE322

2 flutes extra long flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
ZE322030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE322031 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
ZE322030S D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 100
ZE322040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE322041 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
ZE322040S D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 100
ZE322050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
ZE322051 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 80
ZE322052 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 100
ZE322060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 80
ZE322061 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 100
ZE322062 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 40 | L (mm): 150
ZE322080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 90
ZE322081 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 35 | L (mm): 100
ZE322082 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 150
ZE322100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 90
ZE322101 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 100
ZE322102 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 45 | L (mm): 150
ZE322103 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 180
ZE322120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 90
ZE322121 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 110
ZE322122 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 50 | L (mm): 150
ZE322123 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 60 | L (mm): 200
ZE322140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 40 | L (mm): 120
ZE322141 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 150
ZE322160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 50 | L (mm): 140
ZE322161 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 70 | L (mm): 160
ZE322162 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 80 | L (mm): 200
ZE322180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 50 | L (mm): 140
ZE322200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 60 | L (mm): 150
ZE322201 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 100 | L (mm): 200
ZE322202 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 130 | L (mm): 250
