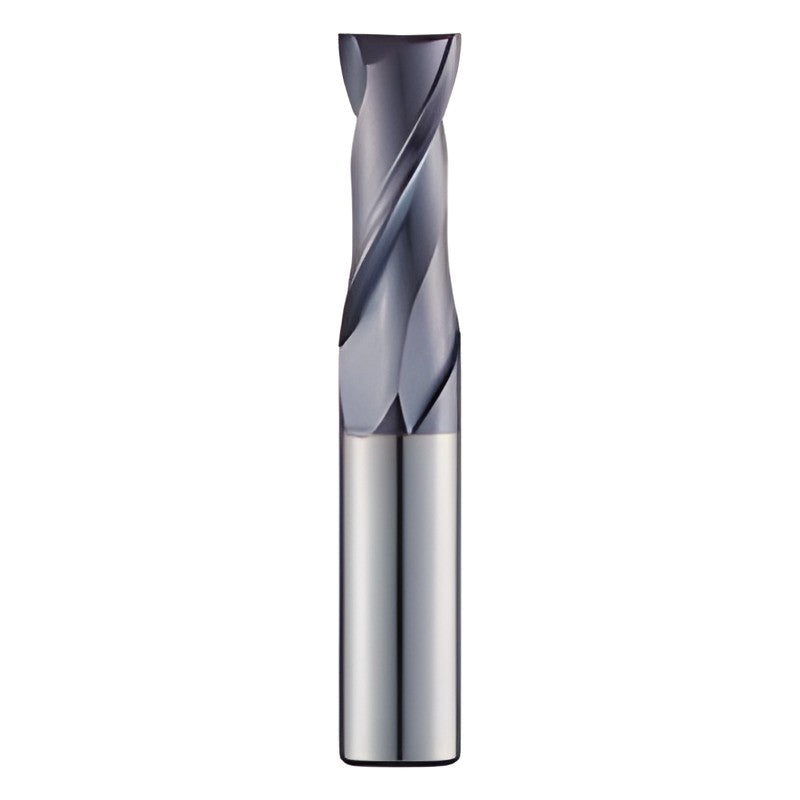

Korloy 2 Flutes Flat End Mill SE502

Korloy 2 Flutes Flat End Mill SE502

2 flutes flat end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 36° helix angle
  • AlCrN coating

Specifications

Helix angle 36°
Coating AlCrN
Shank tolerance h5
SE502010 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SE502012 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SE502015 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SE502020 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SE502025 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SE502030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SE502040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE502050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SE502060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE502080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE502100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE502120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE502140 D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SE502160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE502180 D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SE502200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
End MillsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Flat End Mill SE502

Brand Korloy·End Mills

Available part numbers (16)

SE502010, SE502012, SE502015, SE502020, SE502025, SE502030, SE502040, SE502050, SE502060, SE502080 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SE502010D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SE502012D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SE502015D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SE502020D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SE502025D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SE502030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SE502040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE502050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SE502060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE502080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE502100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE502120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE502140D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SE502160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE502180D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SE502200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
