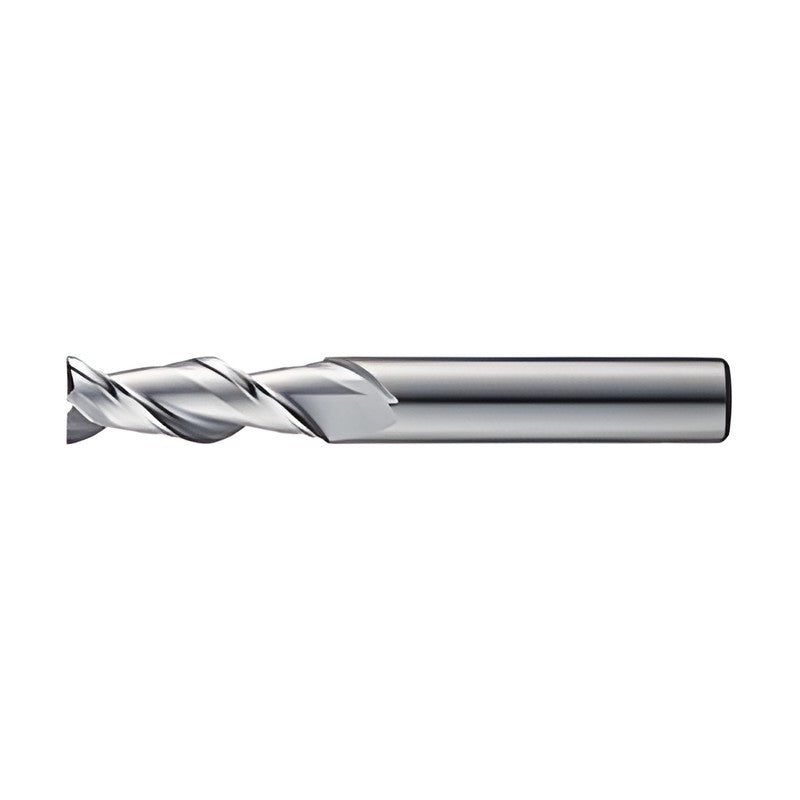

Korloy 2 Flutes Flat End Mill WAE302

Korloy 2 Flutes Flat End Mill WAE302

2 flutes flat end mill from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 45° helix angle
  • Uncoated

Specifications

Helix angle 45°
Coating Uncoated
Shank tolerance h6
WAE302010 D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 3 | L (mm): 50
WAE302010-6 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 60
WAE302012 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
WAE302015 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE302015-8 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
WAE302020S4 D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | L (mm): 50
WAE302020 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE302020-10 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
WAE302025 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
WAE302030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
WAE302030-15 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 65
WAE302035 D (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 57
WAE302040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 55
WAE302040-16 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 65
WAE302050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 55
WAE302050-22 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 60
WAE302060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 60
WAE302060-22 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 60
WAE302070 D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 63
WAE302080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 23 | L (mm): 70
WAE302080-31 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 31 | L (mm): 80
WAE302090 D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 72
WAE302100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 75
WAE302100-36 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 36 | L (mm): 90
WAE302110 D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAE302120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 33 | L (mm): 80
WAE302120-41 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 41 | L (mm): 95
WAE302122 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 45 | L (mm): 100
WAE302130 D (mm): 13 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 85
WAE302140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 38 | L (mm): 90
WAE302150 D (mm): 15 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAE302160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
WAE302160-53 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 53 | L (mm): 110
WAE302180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 49 | L (mm): 100
WAE302200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100
WAE302200-55 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 55 | L (mm): 110
WAE302250 D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 50 | L (mm): 120
End MillsKorloy
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Flat End Mill WAE302

Brand Korloy·End Mills

Available part numbers (37)

WAE302010, WAE302010-6, WAE302012, WAE302015, WAE302015-8, WAE302020S4, WAE302020, WAE302020-10, WAE302025, WAE302030 + 27 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAE302010D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 3 | L (mm): 50
WAE302010-6D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 60
WAE302012D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
WAE302015D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE302015-8D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
WAE302020S4D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | L (mm): 50
WAE302020D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE302020-10D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
WAE302025D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
WAE302030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
WAE302030-15D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 65
WAE302035D (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 57
WAE302040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 55
WAE302040-16D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 65
WAE302050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 55
WAE302050-22D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 60
WAE302060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 60
WAE302060-22D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 60
WAE302070D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 63
WAE302080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 23 | L (mm): 70
WAE302080-31D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 31 | L (mm): 80
WAE302090D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 72
WAE302100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 75
WAE302100-36D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 36 | L (mm): 90
WAE302110D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAE302120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 33 | L (mm): 80
WAE302120-41D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 41 | L (mm): 95
WAE302122D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 45 | L (mm): 100
WAE302130D (mm): 13 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 85
WAE302140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 38 | L (mm): 90
WAE302150D (mm): 15 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAE302160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
WAE302160-53D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 53 | L (mm): 110
WAE302180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 49 | L (mm): 100
WAE302200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100
WAE302200-55D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 55 | L (mm): 110
WAE302250D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 50 | L (mm): 120
