• Korloy 2 Flutes Flat End Mill ZE302P
1 1

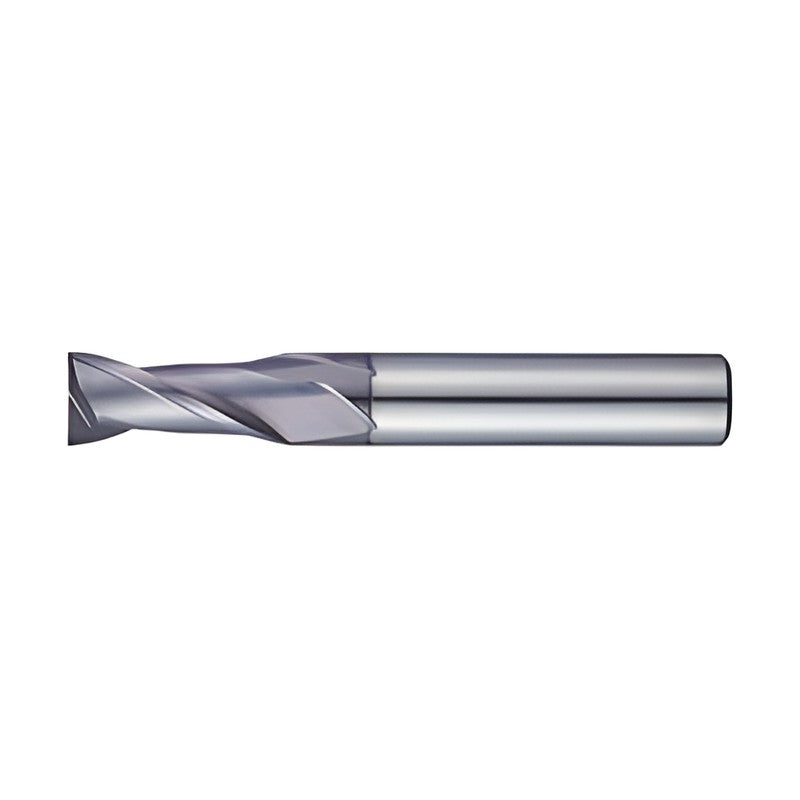

Korloy 2 Flutes Flat End Mill ZE302P

Korloy 2 Flutes Flat End Mill ZE302P

2 flutes flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
ZE302010P D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
ZE302015P D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
ZE302020P D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
ZE302025P D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
ZE302030P D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
ZE302035P D (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
ZE302040P D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
ZE302045P D (mm): 4.5 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 50
ZE302050P D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE302055P D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE302060P D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE302065P D (mm): 6.5 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 60
ZE302070P D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
ZE302075P D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
ZE302080P D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
ZE302085P D (mm): 8.5 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
ZE302090P D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
ZE302095P D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 24 | L (mm): 70
ZE302100P D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
ZE302105P D (mm): 10.5 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 80
ZE302110P D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
ZE302115P D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
ZE302120P D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
ZE302130P D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 90
ZE302140P D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 100
ZE302150P D (mm): 15 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100
ZE302160P D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100
ZE302180P D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 45 | L (mm): 100
ZE302200P D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
End MillsKorloy
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Flat End Mill ZE302P

Brand Korloy·End Mills

Available part numbers (29)

ZE302010P, ZE302015P, ZE302020P, ZE302025P, ZE302030P, ZE302035P, ZE302040P, ZE302045P, ZE302050P, ZE302055P + 19 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZE302010PD (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
ZE302015PD (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
ZE302020PD (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
ZE302025PD (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
ZE302030PD (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
ZE302035PD (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
ZE302040PD (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
ZE302045PD (mm): 4.5 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 50
ZE302050PD (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE302055PD (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE302060PD (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE302065PD (mm): 6.5 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 60
ZE302070PD (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
ZE302075PD (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
ZE302080PD (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
ZE302085PD (mm): 8.5 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
ZE302090PD (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
ZE302095PD (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 24 | L (mm): 70
ZE302100PD (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
ZE302105PD (mm): 10.5 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 80
ZE302110PD (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
ZE302115PD (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
ZE302120PD (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
ZE302130PD (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 90
ZE302140PD (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 100
ZE302150PD (mm): 15 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100
ZE302160PD (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100
ZE302180PD (mm): 18 | Shank d (mm): 18 | Flute length (mm): 45 | L (mm): 100
ZE302200PD (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100

Need a different model, or a part not listed here? Send us your parts list →
