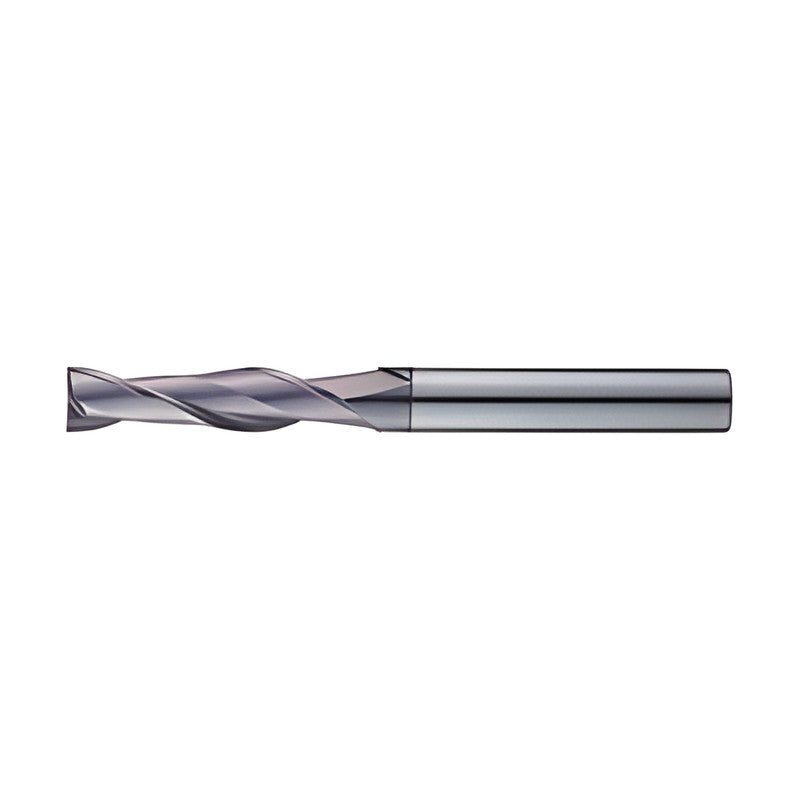

Korloy 2 Flutes Long Flat End Mill TX222

Korloy 2 Flutes Long Flat End Mill TX222

2 flutes long flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
TX222030 D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 60
TX222040 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 60
TX222050 D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 25 | L (mm): 75
TX222060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 75
TX222080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 75
TX222100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 40 | L (mm): 100
TX222120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 45 | L (mm): 100
TX222140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 45 | L (mm): 100
TX222160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
TX222180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 45 | L (mm): 100
TX222200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
End MillsKorloy
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Long Flat End Mill TX222

Brand Korloy·End Mills

Available part numbers (11)

TX222030, TX222040, TX222050, TX222060, TX222080, TX222100, TX222120, TX222140, TX222160, TX222180 + 1 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TX222030D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 60
TX222040D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 60
TX222050D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 25 | L (mm): 75
TX222060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 75
TX222080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 75
TX222100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 40 | L (mm): 100
TX222120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 45 | L (mm): 100
TX222140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 45 | L (mm): 100
TX222160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
TX222180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 45 | L (mm): 100
TX222200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
