• Korloy 2 Flutes Radius End Mill (DLC coated) WAR502
1 1

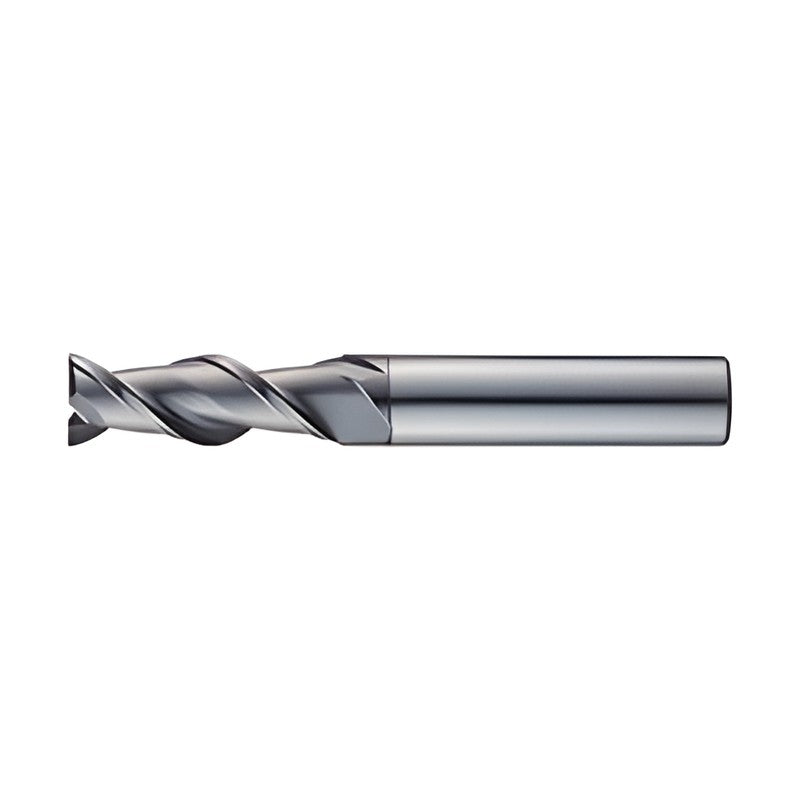

Korloy 2 Flutes Radius End Mill (DLC coated) WAR502

Korloy 2 Flutes Radius End Mill (DLC coated) WAR502

2 flutes radius end mill (DLC coated) from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 45° helix angle

Specifications

Helix angle 45°
Shank tolerance h6
Coating DLC
WAR502010 R (mm): 0.05 | D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 40
WAR502015 R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 5 | L (mm): 40
WAR502020 R (mm): 0.1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 40
WAR502021 R (mm): 0.1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAR502030 R (mm): 0.1 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAR502031 R (mm): 0.1 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAR502040 R (mm): 0.1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAR502041 R (mm): 0.1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAR502050 R (mm): 0.1 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 57
WAR502060 R (mm): 0.1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 57
WAR502061 R (mm): 0.1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 65
WAR502070 R (mm): 0.1 | D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 63
WAR502080 R (mm): 0.1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 63
WAR502081 R (mm): 0.1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 28 | L (mm): 70
WAR502090 R (mm): 0.1 | D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 72
WAR502100 R (mm): 0.2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 72
WAR502101 R (mm): 0.2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 32 | L (mm): 80
WAR502110 R (mm): 0.2 | D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAR502120 R (mm): 0.2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 32 | L (mm): 80
WAR502121 R (mm): 0.2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 100
End MillsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Radius End Mill (DLC coated) WAR502

Brand Korloy·End Mills

Available part numbers (20)

WAR502010, WAR502015, WAR502020, WAR502021, WAR502030, WAR502031, WAR502040, WAR502041, WAR502050, WAR502060 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAR502010R (mm): 0.05 | D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 40
WAR502015R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 5 | L (mm): 40
WAR502020R (mm): 0.1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 40
WAR502021R (mm): 0.1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAR502030R (mm): 0.1 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
WAR502031R (mm): 0.1 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAR502040R (mm): 0.1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
WAR502041R (mm): 0.1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
WAR502050R (mm): 0.1 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 57
WAR502060R (mm): 0.1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 57
WAR502061R (mm): 0.1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 65
WAR502070R (mm): 0.1 | D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 63
WAR502080R (mm): 0.1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 63
WAR502081R (mm): 0.1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 28 | L (mm): 70
WAR502090R (mm): 0.1 | D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 72
WAR502100R (mm): 0.2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 72
WAR502101R (mm): 0.2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 32 | L (mm): 80
WAR502110R (mm): 0.2 | D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAR502120R (mm): 0.2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 32 | L (mm): 80
WAR502121R (mm): 0.2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 100
