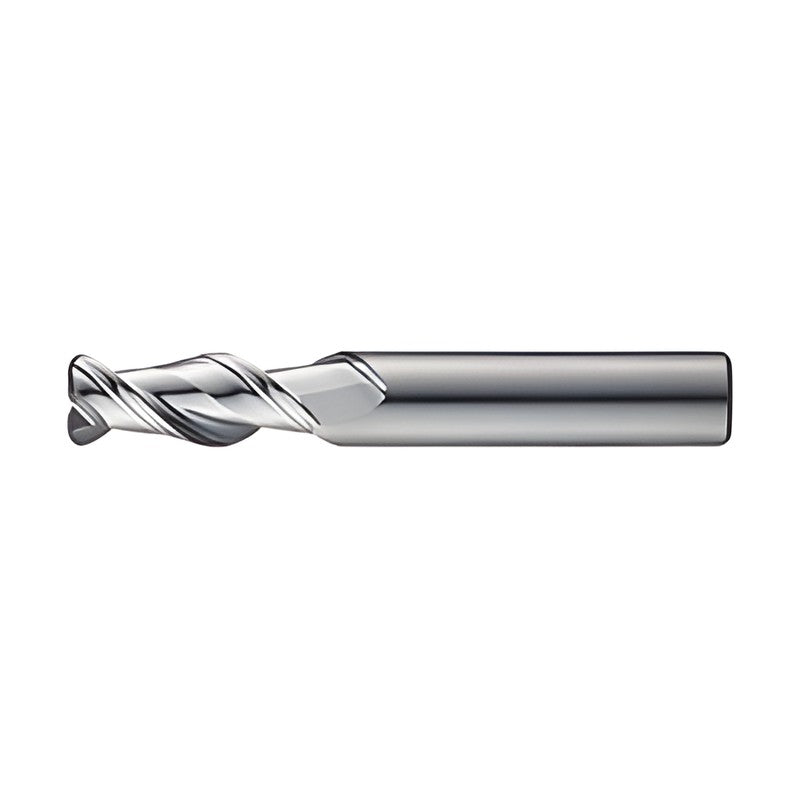

Korloy 2 Flutes Radius End Mill WAR302

Korloy 2 Flutes Radius End Mill WAR302

2 flutes radius end mill from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 45° helix angle
  • Uncoated

Specifications

Helix angle 45°
Coating Uncoated
Shank tolerance h6
WAR3020605 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020610 R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020615 R (mm): 1.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020620 R (mm): 2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020805 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020810 R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020815 R (mm): 1.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020820 R (mm): 2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020830 R (mm): 3 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3021005 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021010 R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021015 R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021020 R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021030 R (mm): 3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021040 R (mm): 4 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021210 R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021220 R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021230 R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021240 R (mm): 4 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021410 R (mm): 1 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021420 R (mm): 2 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021430 R (mm): 3 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021440 R (mm): 4 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021450 R (mm): 5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021610 R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021620 R (mm): 2 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021630 R (mm): 3 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021640 R (mm): 4 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021650 R (mm): 5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3022010 R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022020 R (mm): 2 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022030 R (mm): 3 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022040 R (mm): 4 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022050 R (mm): 5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
End MillsKorloy
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Radius End Mill WAR302

Brand Korloy·End Mills

Available part numbers (34)

WAR3020605, WAR3020610, WAR3020615, WAR3020620, WAR3020805, WAR3020810, WAR3020815, WAR3020820, WAR3020830, WAR3021005 + 24 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAR3020605R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020610R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020615R (mm): 1.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020620R (mm): 2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3020805R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020810R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020815R (mm): 1.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020820R (mm): 2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3020830R (mm): 3 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3021005R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021010R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021015R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021020R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021030R (mm): 3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021040R (mm): 4 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3021210R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021220R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021230R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021240R (mm): 4 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3021410R (mm): 1 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021420R (mm): 2 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021430R (mm): 3 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021440R (mm): 4 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021450R (mm): 5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3021610R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021620R (mm): 2 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021630R (mm): 3 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021640R (mm): 4 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3021650R (mm): 5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3022010R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022020R (mm): 2 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022030R (mm): 3 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022040R (mm): 4 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3022050R (mm): 5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
