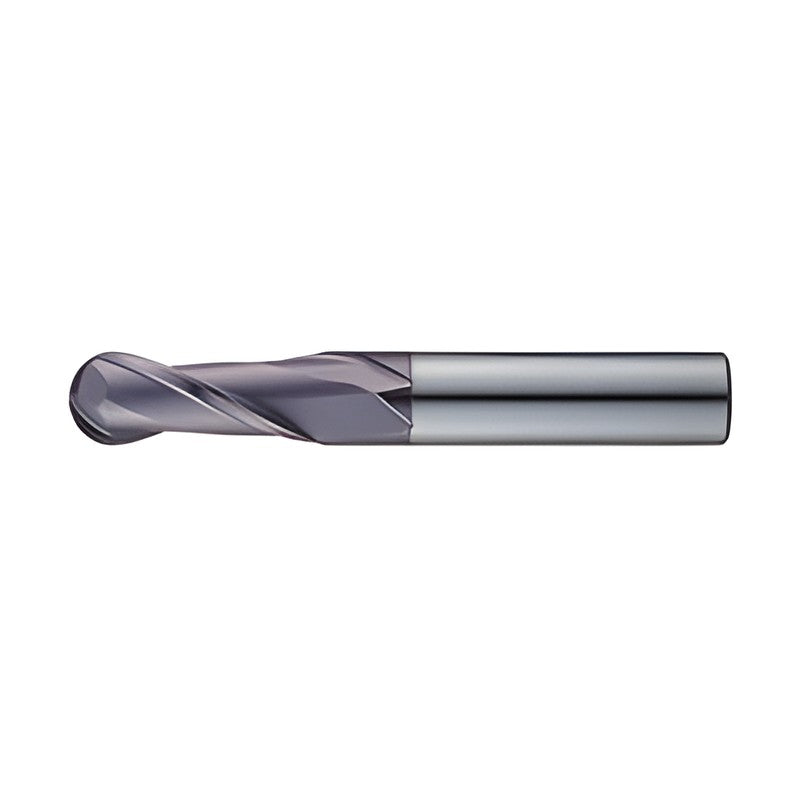

Korloy 2 Flutes Short Shank Ball Nose End Mill TXB202

Korloy 2 Flutes Short Shank Ball Nose End Mill TXB202

2 flutes short shank ball nose end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
TXB202010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 3 | L (mm): 39
TXB202015 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 5 | L (mm): 39
TXB202020 R (mm): 1 | D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 39
TXB202025 R (mm): 1.25 | D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 39
TXB202030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 39
TXB202040 R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 14 | L (mm): 51
TXB202050 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 16 | L (mm): 51
TXB202060 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 19 | L (mm): 64
TXB202080 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 21 | L (mm): 64
TXB202100 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
TXB202120 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 76
TXB202160 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 89
TXB202200 R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
Ball End MillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Short Shank Ball Nose End Mill TXB202

Brand Korloy·Ball End Mills

Available part numbers (13)

TXB202010, TXB202015, TXB202020, TXB202025, TXB202030, TXB202040, TXB202050, TXB202060, TXB202080, TXB202100 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TXB202010R (mm): 0.5 | D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 3 | L (mm): 39
TXB202015R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 5 | L (mm): 39
TXB202020R (mm): 1 | D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 39
TXB202025R (mm): 1.25 | D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 39
TXB202030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 39
TXB202040R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 14 | L (mm): 51
TXB202050R (mm): 2.5 | D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 16 | L (mm): 51
TXB202060R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 19 | L (mm): 64
TXB202080R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 21 | L (mm): 64
TXB202100R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
TXB202120R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 76
TXB202160R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 89
TXB202200R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
