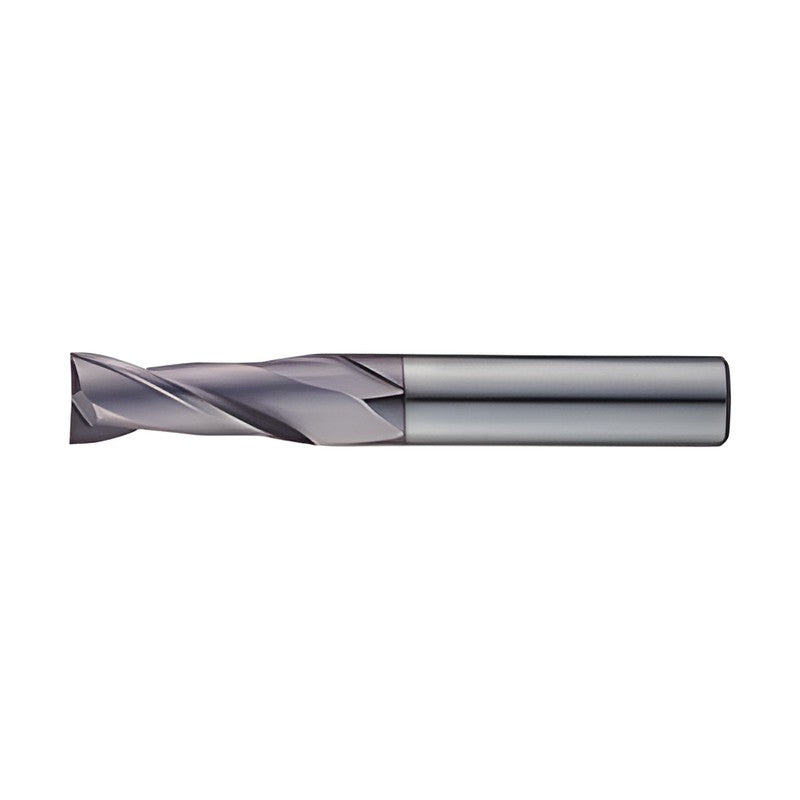

Korloy 2 Flutes Short Shank Flat End Mill TX202

Korloy 2 Flutes Short Shank Flat End Mill TX202

2 flutes short shank flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
TX202010 D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 3 | L (mm): 39
TX202015 D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 5 | L (mm): 39
TX202020 D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 39
TX202025 D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 39
TX202030 D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 39
TX202040 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 14 | L (mm): 51
TX202050 D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 16 | L (mm): 51
TX202060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 19 | L (mm): 64
TX202080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 21 | L (mm): 64
TX202100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
TX202120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 76
TX202160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 89
TX202200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 102
End MillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Short Shank Flat End Mill TX202

Brand Korloy·End Mills

Available part numbers (13)

TX202010, TX202015, TX202020, TX202025, TX202030, TX202040, TX202050, TX202060, TX202080, TX202100 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TX202010D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 3 | L (mm): 39
TX202015D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 5 | L (mm): 39
TX202020D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 39
TX202025D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 39
TX202030D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 39
TX202040D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 14 | L (mm): 51
TX202050D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 16 | L (mm): 51
TX202060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 19 | L (mm): 64
TX202080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 21 | L (mm): 64
TX202100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
TX202120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 76
TX202160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 89
TX202200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 102
