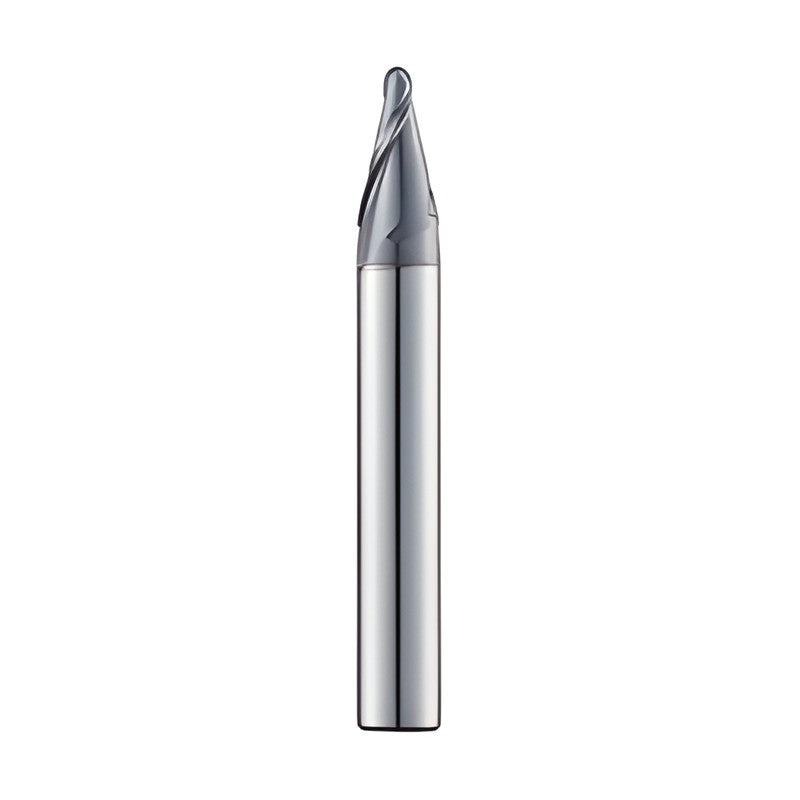

Korloy 2 Flutes Tapered Ball End Mill UTB502

Korloy 2 Flutes Tapered Ball End Mill UTB502

2 flutes tapered ball end mill from the U-Star solid carbide end mill line.

Key features

  • Solid carbide
  • 30° helix angle
  • AlCrN coating

Specifications

Helix angle 30°
Coating AlCrN
Shank tolerance h5
UTB502003005 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.2 | Angle θ (deg): 0.5 | L (mm): 40
UTB50200301 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.2 | Angle θ (deg): 1 | L (mm): 40
UTB502003015 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.2 | Angle θ (deg): 1.5 | L (mm): 40
UTB50200302 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.2 | Angle θ (deg): 2 | L (mm): 40
UTB50200303 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.2 | Angle θ (deg): 3 | L (mm): 40
UTB50200305 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.2 | Angle θ (deg): 5 | L (mm): 40
UTB50200307 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.5 | Angle θ (deg): 7 | L (mm): 40
UTB50200310 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | Flute length (mm): 1.5 | Angle θ (deg): 10 | L (mm): 40
UTB502004005 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.6 | Angle θ (deg): 0.5 | L (mm): 40
UTB50200401 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.6 | Angle θ (deg): 1 | L (mm): 40
UTB502004015 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.6 | Angle θ (deg): 1.5 | L (mm): 40
UTB50200402 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.6 | Angle θ (deg): 2 | L (mm): 40
UTB50200403 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.6 | Angle θ (deg): 3 | L (mm): 40
UTB50200405 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 1.6 | Angle θ (deg): 5 | L (mm): 40
UTB50200407 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 7 | L (mm): 40
UTB50200410 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 10 | L (mm): 40
UTB502005005 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 0.5 | L (mm): 45
UTB50200501 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 1 | L (mm): 45
UTB502005015 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 1.5 | L (mm): 45
UTB50200502 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 2 | L (mm): 45
UTB50200503 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 3 | L (mm): 45
UTB50200505 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 5 | L (mm): 45
UTB50200507 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 7 | L (mm): 45
UTB50200510 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 10 | L (mm): 45
UTB502006005 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 0.5 | L (mm): 45
UTB50200601 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 1 | L (mm): 45
UTB502006015 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 1.5 | L (mm): 45
UTB50200602 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 2 | L (mm): 45
UTB50200603 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 3 | L (mm): 45
UTB50200605 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2 | Angle θ (deg): 5 | L (mm): 45
UTB50200607 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 7 | L (mm): 45
UTB50200610 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 10 | L (mm): 45
UTB502007005 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 0.5 | L (mm): 45
UTB50200701 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 1 | L (mm): 45
UTB502007015 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 1.5 | L (mm): 45
UTB50200702 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 2 | L (mm): 45
UTB50200703 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 3 | L (mm): 45
UTB50200705 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 2.5 | Angle θ (deg): 5 | L (mm): 45
UTB50200707 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 3 | Angle θ (deg): 7 | L (mm): 45
UTB50200710 R (mm): 0.35 | D (mm): 0.7 | Shank d (mm): 4 | Flute length (mm): 3 | Angle θ (deg): 10 | L (mm): 45
UTB502008005 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 0.5 | L (mm): 45
UTB50200801 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 1 | L (mm): 45
UTB502008015 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 1.5 | L (mm): 45
UTB50200802 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 2 | L (mm): 45
UTB50200803 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 3 | L (mm): 45
UTB50200805 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 5 | L (mm): 45
UTB50200807 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 7 | L (mm): 45
UTB50200810 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | Flute length (mm): 3.2 | Angle θ (deg): 10 | L (mm): 45
UTB502010005 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UTB50201001 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UTB502010015 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UTB50201002 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UTB50201003 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UTB50201005 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 5 | L (mm): 50
UTB50201007 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 7 | L (mm): 50
UTB50201010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 4 | Angle θ (deg): 10 | L (mm): 50
UTB502015005 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UTB50201501 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UTB502015015 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UTB50201502 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 7 | Angle θ (deg): 2 | L (mm): 50
UTB50201503 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UTB50201505 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 10 | Angle θ (deg): 5 | L (mm): 50
UTB50201507 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 10 | Angle θ (deg): 7 | L (mm): 50
UTB50201510 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 10 | Angle θ (deg): 10 | L (mm): 50
UTB502020005 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UTB50202001 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UTB502020015 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UTB50202002 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UTB50202003 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UTB50202005 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 10 | Angle θ (deg): 5 | L (mm): 50
UTB50202007 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 10 | Angle θ (deg): 7 | L (mm): 50
UTB50202010 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 11 | Angle θ (deg): 10 | L (mm): 50
Ball End MillsKorloy
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Tapered Ball End Mill UTB502

Brand Korloy·Ball End Mills

Available part numbers (72)

UTB502003005, UTB50200301, UTB502003015, UTB50200302, UTB50200303, UTB50200305, UTB50200307, UTB50200310, UTB502004005, UTB50200401 + 62 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
