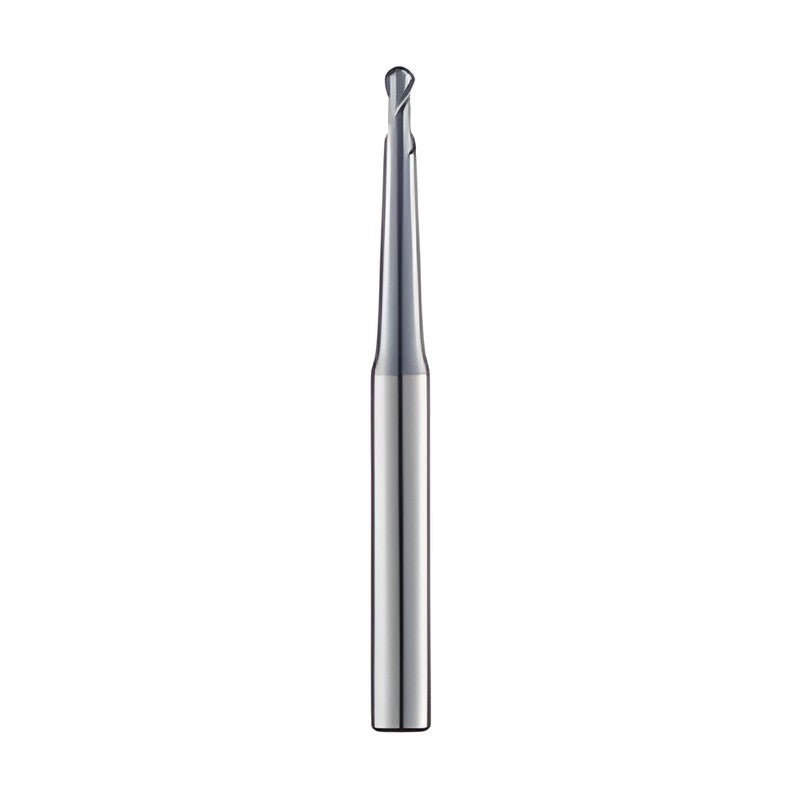

Korloy 2 Flutes Tapered Neck Ball End Mill UB542

Korloy 2 Flutes Tapered Neck Ball End Mill UB542

2 flutes tapered neck ball end mill from the U-Star solid carbide end mill line.

Key features

  • Solid carbide
  • 30° helix angle
  • AlCrN coating

Specifications

Helix angle 30°
Coating AlCrN
Shank tolerance h5
UB54200105005 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 0.5 | L (mm): 40
UB5420010501 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 0.5 | L (mm): 40
UB54200110005 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 1 | L (mm): 40
UB5420011001 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 1 | L (mm): 40
UB54200115005 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 1.5 | L (mm): 40
UB5420011501 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 1.5 | L (mm): 40
UB54200120005 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 2 | L (mm): 40
UB5420012001 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 2 | L (mm): 40
UB54200130005 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 3 | L (mm): 40
UB5420013001 R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 3 | L (mm): 40
UB5420020501 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 0.5 | L (mm): 40
UB5420020502 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 0.5 | L (mm): 40
UB5420020503 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 0.5 | L (mm): 40
UB5420021001 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 1 | L (mm): 40
UB5420021002 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 1 | L (mm): 40
UB5420021003 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 1 | L (mm): 40
UB5420021501 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 1.5 | L (mm): 40
UB5420021502 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 1.5 | L (mm): 40
UB5420021503 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 1.5 | L (mm): 40
UB5420022001 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 2 | L (mm): 40
UB5420022002 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 2 | L (mm): 40
UB5420022003 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 2 | L (mm): 40
UB5420023001 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 3 | L (mm): 40
UB5420023002 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 3 | L (mm): 40
UB5420023003 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 3 | L (mm): 40
UB5420025002 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 5 | L (mm): 40
UB5420025003 R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 5 | L (mm): 40
UB5420030502 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 0.5 | L (mm): 40
UB5420030503 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 0.5 | L (mm): 40
UB5420030504 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 40
UB5420030505 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 0.5 | L (mm): 40
UB5420031002 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 1 | L (mm): 40
UB5420031003 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 1 | L (mm): 40
UB5420031004 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 40
UB5420031005 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 1 | L (mm): 40
UB5420031502 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 1.5 | L (mm): 40
UB5420031503 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 1.5 | L (mm): 40
UB5420031504 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 40
UB5420031505 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 1.5 | L (mm): 40
UB5420032002 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 2 | L (mm): 40
UB5420032003 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 2 | L (mm): 40
UB5420032004 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 40
UB5420032005 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 2 | L (mm): 40
UB5420033002 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 3 | L (mm): 40
UB5420033003 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 3 | L (mm): 40
UB5420033004 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 40
UB5420033005 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 3 | L (mm): 40
UB5420035005 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 5 | L (mm): 40
UB5420040502 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040503 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040504 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040505 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040506 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420041002 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 1 | L (mm): 50
UB5420041003 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 1 | L (mm): 50
UB5420041004 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420041005 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 1 | L (mm): 50
UB5420041006 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420041502 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041503 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041504 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041505 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041506 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420042002 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 2 | L (mm): 50
UB5420042003 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 2 | L (mm): 50
UB5420042004 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420042005 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 2 | L (mm): 50
UB5420042006 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420043002 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 3 | L (mm): 50
UB5420043003 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 3 | L (mm): 50
UB5420043004 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420043005 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 3 | L (mm): 50
UB5420043006 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420045004 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 5 | L (mm): 50
UB5420045006 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 5 | L (mm): 50
UB5420050504 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420050506 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420050508 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420050510 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420051004 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420051006 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420051008 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420051010 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420051504 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420051506 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420051508 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420051510 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420052004 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420052006 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420052008 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420052010 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420053004 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420053006 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420053008 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420053010 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420060504 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060506 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060508 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060510 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060512 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420061004 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420061006 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420061008 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420061010 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420061012 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420061504 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061506 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061508 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061510 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061512 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420062004 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420062006 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420062008 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420062010 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420062012 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420063004 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420063006 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420063008 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420063010 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420063012 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420080504 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080506 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080508 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080510 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080512 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080516 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420081004 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420081006 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420081008 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420081010 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420081012 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420081016 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420081504 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081506 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081508 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081510 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081512 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081516 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420082004 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420082006 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420082008 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420082010 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420082012 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420082016 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420083004 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420083006 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420083008 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420083010 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420083012 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420083016 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 3 | L (mm): 50
UB5420100506 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100508 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100510 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100512 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100516 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100520 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100525 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420100530 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420100540 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420100550 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 90
UB5420101006 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420101008 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420101010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420101012 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420101016 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420101020 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420101025 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420101030 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420101040 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420101050 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 90
UB5420101506 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101508 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101510 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101512 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101516 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101520 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101525 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420101530 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420101540 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420101550 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 90
UB5420102006 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420102008 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420102010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420102012 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420102016 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420102020 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 50
UB5420102025 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420102030 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420102040 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420102050 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420103006 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420103008 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420103010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420103012 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420103016 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 3 | L (mm): 50
UB5420103020 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 3 | L (mm): 50
UB5420103025 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 3 | L (mm): 60
UB5420103030 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420103040 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 80
UB5420103050 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 90
UB5420105030 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420120508 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120512 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120516 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120520 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120525 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420120530 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420121008 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420121012 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420121016 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420121020 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420121025 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420121030 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420121508 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121512 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121516 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121520 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121525 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420121530 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420122008 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420122012 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420122016 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420122020 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 50
UB5420122025 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420122030 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420123008 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420123012 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420123016 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 3 | L (mm): 50
UB5420123020 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 3 | L (mm): 50
UB5420123025 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 3 | L (mm): 60
UB5420123030 R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 6 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420150508 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150510 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150512 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150516 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150520 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150525 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420150530 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420150540 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420150550 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 90
UB5420151008 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420151010 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420151012 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420151016 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420151020 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420151025 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420151030 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420151040 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420151050 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 90
UB5420151508 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151510 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151512 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151516 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151520 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151525 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420151530 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420151540 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420151550 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 90
UB5420152008 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420152010 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420152012 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420152016 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420152020 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 50
UB5420152025 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420152030 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420152040 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420152050 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420153020 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 3 | L (mm): 50
UB5420153030 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420153040 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 80
UB5420153050 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 8 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 90
UB5420155030 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 8 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420200510 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200512 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200516 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200520 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200525 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420200530 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420200540 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420200550 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 100
UB5420200560 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 0.5 | L (mm): 100
UB5420200580 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 0.5 | L (mm): 140
UB5420201010 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420201012 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420201016 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420201020 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420201025 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420201030 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420201040 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420201050 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 100
UB5420201060 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 100
UB5420201080 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 1 | L (mm): 140
UB5420201510 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201512 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201516 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201520 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201525 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420201530 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420201540 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420201550 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 100
UB5420201560 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 100
UB5420201580 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 1.5 | L (mm): 140
UB5420202010 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420202012 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420202016 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420202020 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 55
UB5420202025 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420202030 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420202040 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420202050 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420202060 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 2 | L (mm): 100
UB5420202080 R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 2 | L (mm): 140
UB5420203030 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420203040 R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 80
UB5420203050 R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 90
UB5420203060 R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 3 | L (mm): 100
UB5420203080 R (mm): 1 | D (mm): 2 | Shank d (mm): 10 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 3 | L (mm): 140
UB5420205030 R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420205040 R (mm): 1 | D (mm): 2 | Shank d (mm): 10 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 5 | L (mm): 90
UB5420300516 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 60
UB5420300520 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 65
UB5420300530 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420300540 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420300550 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 90
UB5420300560 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 60 | Angle θ (deg): 0.5 | L (mm): 100
UB5420301016 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 60
UB5420301020 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 65
UB5420301030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420301040 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420301050 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 90
UB5420301060 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 100
UB5420301070 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 120
UB5420301516 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 60
UB5420301520 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 65
UB5420301530 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420301540 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420301550 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 90
UB5420301560 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 100
UB5420302016 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 60
UB5420302020 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 65
UB5420302030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420302040 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420302050 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 8 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420303030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420303040 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 8 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 90
UB5420305030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 8 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420305040 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 10 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 5 | L (mm): 90
UB5420400540 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 90
UB5420400550 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 100
UB5420400560 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 60 | Angle θ (deg): 0.5 | L (mm): 110
UB5420400570 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 70 | Angle θ (deg): 0.5 | L (mm): 120
UB5420401040 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 90
UB5420401050 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 100
UB5420401060 R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 110
UB5420401070 R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 120
UB5420401540 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 90
UB5420401550 R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 100
UB5420401560 R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 110
UB5420401570 R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 70 | Angle θ (deg): 1.5 | L (mm): 120
UB5420403050 R (mm): 2 | D (mm): 4 | Shank d (mm): 10 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 100
UB5420405050 R (mm): 2 | D (mm): 4 | Shank d (mm): 12 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 5 | L (mm): 100
UB5420501060 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 8 | l1 (mm): 10 | l2 (mm): 13 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 120
UB5420501560 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 8 | l1 (mm): 10 | l2 (mm): 13 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 120
UB5420503040 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 8 | l1 (mm): 10 | l2 (mm): 13 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 120
UB5420601060 R (mm): 3 | D (mm): 6 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 120
UB5420601090 R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 1 | L (mm): 150
UB5420601560 R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 120
UB5420601590 R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 1.5 | L (mm): 150
UB5420602060 R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 2 | L (mm): 120
UB5420602090 R (mm): 3 | D (mm): 6 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 2 | L (mm): 150
UB5420603060 R (mm): 3 | D (mm): 6 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 3 | L (mm): 120
UB5420603090 R (mm): 3 | D (mm): 6 | Shank d (mm): 14 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 3 | L (mm): 150
UB54208010100 R (mm): 4 | D (mm): 8 | Shank d (mm): 12 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 1 | L (mm): 150
UB5420801070 R (mm): 4 | D (mm): 8 | Shank d (mm): 10 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 130
UB54208015100 R (mm): 4 | D (mm): 8 | Shank d (mm): 14 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 1.5 | L (mm): 150
UB5420801570 R (mm): 4 | D (mm): 8 | Shank d (mm): 12 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 1.5 | L (mm): 130
UB54208020100 R (mm): 4 | D (mm): 8 | Shank d (mm): 14 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 2 | L (mm): 150
UB5420802070 R (mm): 4 | D (mm): 8 | Shank d (mm): 12 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 2 | L (mm): 130
UB54208030100 R (mm): 4 | D (mm): 8 | Shank d (mm): 18 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 3 | L (mm): 150
UB5420803070 R (mm): 4 | D (mm): 8 | Shank d (mm): 14 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 3 | L (mm): 130
UB54210010100 R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 1 | L (mm): 200
UB5421001070 R (mm): 5 | D (mm): 10 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 130
UB5421001080 R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 1 | L (mm): 150
UB54210015100 R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 1.5 | L (mm): 200
UB5421001570 R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 1.5 | L (mm): 130
UB5421001580 R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 1.5 | L (mm): 150
UB54210020100 R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 2 | L (mm): 200
UB5421002070 R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 2 | L (mm): 130
UB5421002080 R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 2 | L (mm): 150
UB54210030100 R (mm): 5 | D (mm): 10 | Shank d (mm): 20 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 3 | L (mm): 200
UB5421003070 R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 3 | L (mm): 130
UB5421003080 R (mm): 5 | D (mm): 10 | Shank d (mm): 18 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 3 | L (mm): 150
UB54212010100 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 1 | L (mm): 200
UB5421201060 R (mm): 6 | D (mm): 12 | Shank d (mm): 14 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 130
UB5421201080 R (mm): 6 | D (mm): 12 | Shank d (mm): 14 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 1 | L (mm): 150
UB5421201090 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 1 | L (mm): 180
UB54212015100 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 1.5 | L (mm): 200
UB5421201560 R (mm): 6 | D (mm): 12 | Shank d (mm): 14 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 130
UB5421201580 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 1.5 | L (mm): 150
UB5421201590 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 1.5 | L (mm): 180
UB54212020100 R (mm): 6 | D (mm): 12 | Shank d (mm): 18 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 2 | L (mm): 200
UB5421202060 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 2 | L (mm): 130
UB5421202080 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 2 | L (mm): 150
UB5421202090 R (mm): 6 | D (mm): 12 | Shank d (mm): 18 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 2 | L (mm): 180
UB54212030100 R (mm): 6 | D (mm): 12 | Shank d (mm): 20 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 3 | L (mm): 200
UB5421203060 R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 3 | L (mm): 130
UB5421203080 R (mm): 6 | D (mm): 12 | Shank d (mm): 18 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 3 | L (mm): 150
UB5421203090 R (mm): 6 | D (mm): 12 | Shank d (mm): 20 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 3 | L (mm): 180
Ball End MillsKorloy
408 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 2 Flutes Tapered Neck Ball End Mill UB542

Brand Korloy·Ball End Mills

Available part numbers (408)

UB54200105005, UB5420010501, UB54200110005, UB5420011001, UB54200115005, UB5420011501, UB54200120005, UB5420012001, UB54200130005, UB5420013001 + 398 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UB54200105005R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 0.5 | L (mm): 40
UB5420010501R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 0.5 | L (mm): 40
UB54200110005R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 1 | L (mm): 40
UB5420011001R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 1 | L (mm): 40
UB54200115005R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 1.5 | L (mm): 40
UB5420011501R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 1.5 | L (mm): 40
UB54200120005R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 2 | L (mm): 40
UB5420012001R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 2 | L (mm): 40
UB54200130005R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 0.5 | Angle θ (deg): 3 | L (mm): 40
UB5420013001R (mm): 0.05 | D (mm): 0.1 | Shank d (mm): 4 | l1 (mm): 0.1 | l3 (mm): 1 | Angle θ (deg): 3 | L (mm): 40
UB5420020501R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 0.5 | L (mm): 40
UB5420020502R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 0.5 | L (mm): 40
UB5420020503R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 0.5 | L (mm): 40
UB5420021001R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 1 | L (mm): 40
UB5420021002R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 1 | L (mm): 40
UB5420021003R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 1 | L (mm): 40
UB5420021501R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 1.5 | L (mm): 40
UB5420021502R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 1.5 | L (mm): 40
UB5420021503R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 1.5 | L (mm): 40
UB5420022001R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 2 | L (mm): 40
UB5420022002R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 2 | L (mm): 40
UB5420022003R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 2 | L (mm): 40
UB5420023001R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 1 | Angle θ (deg): 3 | L (mm): 40
UB5420023002R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 3 | L (mm): 40
UB5420023003R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 3 | L (mm): 40
UB5420025002R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 2 | Angle θ (deg): 5 | L (mm): 40
UB5420025003R (mm): 0.1 | D (mm): 0.2 | Shank d (mm): 4 | l1 (mm): 0.2 | l2 (mm): 0.4 | l3 (mm): 3 | Angle θ (deg): 5 | L (mm): 40
UB5420030502R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 0.5 | L (mm): 40
UB5420030503R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 0.5 | L (mm): 40
UB5420030504R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 40
UB5420030505R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 0.5 | L (mm): 40
UB5420031002R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 1 | L (mm): 40
UB5420031003R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 1 | L (mm): 40
UB5420031004R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 40
UB5420031005R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 1 | L (mm): 40
UB5420031502R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 1.5 | L (mm): 40
UB5420031503R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 1.5 | L (mm): 40
UB5420031504R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 40
UB5420031505R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 1.5 | L (mm): 40
UB5420032002R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 2 | L (mm): 40
UB5420032003R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 2 | L (mm): 40
UB5420032004R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 40
UB5420032005R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 2 | L (mm): 40
UB5420033002R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 2 | Angle θ (deg): 3 | L (mm): 40
UB5420033003R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 3 | Angle θ (deg): 3 | L (mm): 40
UB5420033004R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 40
UB5420033005R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 3 | L (mm): 40
UB5420035005R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 0.3 | l2 (mm): 0.6 | l3 (mm): 5 | Angle θ (deg): 5 | L (mm): 40
UB5420040502R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040503R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040504R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040505R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 0.5 | L (mm): 50
UB5420040506R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420041002R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 1 | L (mm): 50
UB5420041003R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 1 | L (mm): 50
UB5420041004R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420041005R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 1 | L (mm): 50
UB5420041006R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420041502R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041503R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041504R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041505R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 1.5 | L (mm): 50
UB5420041506R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420042002R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 2 | L (mm): 50
UB5420042003R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 2 | L (mm): 50
UB5420042004R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420042005R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 2 | L (mm): 50
UB5420042006R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420043002R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 2 | Angle θ (deg): 3 | L (mm): 50
UB5420043003R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 3 | Angle θ (deg): 3 | L (mm): 50
UB5420043004R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420043005R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 5 | Angle θ (deg): 3 | L (mm): 50
UB5420043006R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420045004R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 4 | Angle θ (deg): 5 | L (mm): 50
UB5420045006R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 0.4 | l2 (mm): 0.8 | l3 (mm): 6 | Angle θ (deg): 5 | L (mm): 50
UB5420050504R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420050506R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420050508R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420050510R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420051004R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420051006R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420051008R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420051010R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420051504R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420051506R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420051508R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420051510R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420052004R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420052006R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420052008R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420052010R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420053004R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420053006R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420053008R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420053010R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 0.5 | l2 (mm): 1 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420060504R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060506R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060508R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060510R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420060512R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420061004R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420061006R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420061008R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420061010R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420061012R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420061504R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061506R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061508R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061510R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420061512R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420062004R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420062006R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420062008R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420062010R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420062012R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420063004R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420063006R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420063008R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420063010R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420063012R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 0.6 | l2 (mm): 1.2 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420080504R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080506R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080508R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080510R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080512R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420080516R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420081004R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 1 | L (mm): 50
UB5420081006R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420081008R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420081010R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420081012R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420081016R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420081504R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081506R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081508R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081510R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081512R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420081516R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420082004R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 2 | L (mm): 50
UB5420082006R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420082008R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420082010R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420082012R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420082016R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420083004R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 4 | Angle θ (deg): 3 | L (mm): 50
UB5420083006R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420083008R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420083010R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420083012R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420083016R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 0.8 | l2 (mm): 1.6 | l3 (mm): 16 | Angle θ (deg): 3 | L (mm): 50
UB5420100506R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100508R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100510R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100512R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100516R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100520R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420100525R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420100530R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420100540R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420100550R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 90
UB5420101006R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 1 | L (mm): 50
UB5420101008R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420101010R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420101012R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420101016R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420101020R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420101025R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420101030R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420101040R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420101050R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 90
UB5420101506R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101508R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101510R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101512R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101516R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101520R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420101525R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420101530R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420101540R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420101550R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 90
UB5420102006R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 2 | L (mm): 50
UB5420102008R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420102010R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420102012R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420102016R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420102020R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 50
UB5420102025R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420102030R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420102040R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420102050R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420103006R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 6 | Angle θ (deg): 3 | L (mm): 50
UB5420103008R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420103010R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 10 | Angle θ (deg): 3 | L (mm): 50
UB5420103012R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420103016R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 16 | Angle θ (deg): 3 | L (mm): 50
UB5420103020R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 20 | Angle θ (deg): 3 | L (mm): 50
UB5420103025R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 25 | Angle θ (deg): 3 | L (mm): 60
UB5420103030R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420103040R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 80
UB5420103050R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 90
UB5420105030R (mm): 0.5 | D (mm): 1 | Shank d (mm): 6 | l1 (mm): 1 | l2 (mm): 2.5 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420120508R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120512R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120516R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120520R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420120525R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420120530R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420121008R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420121012R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420121016R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420121020R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420121025R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420121030R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420121508R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121512R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121516R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121520R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420121525R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420121530R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420122008R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420122012R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420122016R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420122020R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 50
UB5420122025R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420122030R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420123008R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 8 | Angle θ (deg): 3 | L (mm): 50
UB5420123012R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 12 | Angle θ (deg): 3 | L (mm): 50
UB5420123016R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 16 | Angle θ (deg): 3 | L (mm): 50
UB5420123020R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 20 | Angle θ (deg): 3 | L (mm): 50
UB5420123025R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 25 | Angle θ (deg): 3 | L (mm): 60
UB5420123030R (mm): 0.6 | D (mm): 1.2 | Shank d (mm): 6 | l1 (mm): 1.2 | l2 (mm): 3 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420150508R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150510R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150512R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150516R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150520R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420150525R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420150530R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420150540R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420150550R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 90
UB5420151008R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 1 | L (mm): 50
UB5420151010R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420151012R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420151016R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420151020R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420151025R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420151030R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420151040R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420151050R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 90
UB5420151508R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151510R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151512R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151516R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151520R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420151525R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420151530R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420151540R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420151550R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 90
UB5420152008R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 8 | Angle θ (deg): 2 | L (mm): 50
UB5420152010R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420152012R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420152016R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420152020R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 50
UB5420152025R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420152030R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420152040R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420152050R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420153020R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 20 | Angle θ (deg): 3 | L (mm): 50
UB5420153030R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420153040R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 6 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 80
UB5420153050R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 8 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 90
UB5420155030R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 8 | l1 (mm): 1.5 | l2 (mm): 4 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420200510R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200512R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200516R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200520R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 50
UB5420200525R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 0.5 | L (mm): 60
UB5420200530R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420200540R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420200550R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 100
UB5420200560R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 0.5 | L (mm): 100
UB5420200580R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 0.5 | L (mm): 140
UB5420201010R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 1 | L (mm): 50
UB5420201012R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 1 | L (mm): 50
UB5420201016R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 50
UB5420201020R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 50
UB5420201025R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 1 | L (mm): 60
UB5420201030R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420201040R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420201050R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 100
UB5420201060R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 100
UB5420201080R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 1 | L (mm): 140
UB5420201510R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201512R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201516R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201520R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 50
UB5420201525R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 1.5 | L (mm): 60
UB5420201530R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420201540R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420201550R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 100
UB5420201560R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 100
UB5420201580R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 1.5 | L (mm): 140
UB5420202010R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 10 | Angle θ (deg): 2 | L (mm): 50
UB5420202012R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 12 | Angle θ (deg): 2 | L (mm): 50
UB5420202016R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 50
UB5420202020R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 55
UB5420202025R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 25 | Angle θ (deg): 2 | L (mm): 60
UB5420202030R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420202040R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420202050R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420202060R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 2 | L (mm): 100
UB5420202080R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 2 | L (mm): 140
UB5420203030R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420203040R (mm): 1 | D (mm): 2 | Shank d (mm): 6 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 80
UB5420203050R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 90
UB5420203060R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 60 | Angle θ (deg): 3 | L (mm): 100
UB5420203080R (mm): 1 | D (mm): 2 | Shank d (mm): 10 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 80 | Angle θ (deg): 3 | L (mm): 140
UB5420205030R (mm): 1 | D (mm): 2 | Shank d (mm): 8 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420205040R (mm): 1 | D (mm): 2 | Shank d (mm): 10 | l1 (mm): 2 | l2 (mm): 5 | l3 (mm): 40 | Angle θ (deg): 5 | L (mm): 90
UB5420300516R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 0.5 | L (mm): 60
UB5420300520R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 0.5 | L (mm): 65
UB5420300530R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 0.5 | L (mm): 70
UB5420300540R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 80
UB5420300550R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 90
UB5420300560R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 60 | Angle θ (deg): 0.5 | L (mm): 100
UB5420301016R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 1 | L (mm): 60
UB5420301020R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 1 | L (mm): 65
UB5420301030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 1 | L (mm): 70
UB5420301040R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 80
UB5420301050R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 90
UB5420301060R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 100
UB5420301070R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 120
UB5420301516R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 1.5 | L (mm): 60
UB5420301520R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 1.5 | L (mm): 65
UB5420301530R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 1.5 | L (mm): 70
UB5420301540R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 80
UB5420301550R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 90
UB5420301560R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 100
UB5420302016R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 16 | Angle θ (deg): 2 | L (mm): 60
UB5420302020R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 20 | Angle θ (deg): 2 | L (mm): 65
UB5420302030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 2 | L (mm): 70
UB5420302040R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 2 | L (mm): 80
UB5420302050R (mm): 1.5 | D (mm): 3 | Shank d (mm): 8 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 50 | Angle θ (deg): 2 | L (mm): 90
UB5420303030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 3 | L (mm): 70
UB5420303040R (mm): 1.5 | D (mm): 3 | Shank d (mm): 8 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 90
UB5420305030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 8 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 30 | Angle θ (deg): 5 | L (mm): 70
UB5420305040R (mm): 1.5 | D (mm): 3 | Shank d (mm): 10 | l1 (mm): 4.5 | l2 (mm): 6 | l3 (mm): 40 | Angle θ (deg): 5 | L (mm): 90
UB5420400540R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 40 | Angle θ (deg): 0.5 | L (mm): 90
UB5420400550R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 0.5 | L (mm): 100
UB5420400560R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 60 | Angle θ (deg): 0.5 | L (mm): 110
UB5420400570R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 70 | Angle θ (deg): 0.5 | L (mm): 120
UB5420401040R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 40 | Angle θ (deg): 1 | L (mm): 90
UB5420401050R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 1 | L (mm): 100
UB5420401060R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 110
UB5420401070R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 120
UB5420401540R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 40 | Angle θ (deg): 1.5 | L (mm): 90
UB5420401550R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 1.5 | L (mm): 100
UB5420401560R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 110
UB5420401570R (mm): 2 | D (mm): 4 | Shank d (mm): 8 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 70 | Angle θ (deg): 1.5 | L (mm): 120
UB5420403050R (mm): 2 | D (mm): 4 | Shank d (mm): 10 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 3 | L (mm): 100
UB5420405050R (mm): 2 | D (mm): 4 | Shank d (mm): 12 | l1 (mm): 6 | l2 (mm): 8 | l3 (mm): 50 | Angle θ (deg): 5 | L (mm): 100
UB5420501060R (mm): 2.5 | D (mm): 5 | Shank d (mm): 8 | l1 (mm): 10 | l2 (mm): 13 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 120
UB5420501560R (mm): 2.5 | D (mm): 5 | Shank d (mm): 8 | l1 (mm): 10 | l2 (mm): 13 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 120
UB5420503040R (mm): 2.5 | D (mm): 5 | Shank d (mm): 8 | l1 (mm): 10 | l2 (mm): 13 | l3 (mm): 40 | Angle θ (deg): 3 | L (mm): 120
UB5420601060R (mm): 3 | D (mm): 6 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 120
UB5420601090R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 1 | L (mm): 150
UB5420601560R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 120
UB5420601590R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 1.5 | L (mm): 150
UB5420602060R (mm): 3 | D (mm): 6 | Shank d (mm): 10 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 2 | L (mm): 120
UB5420602090R (mm): 3 | D (mm): 6 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 2 | L (mm): 150
UB5420603060R (mm): 3 | D (mm): 6 | Shank d (mm): 12 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 60 | Angle θ (deg): 3 | L (mm): 120
UB5420603090R (mm): 3 | D (mm): 6 | Shank d (mm): 14 | l1 (mm): 12 | l2 (mm): 15 | l3 (mm): 90 | Angle θ (deg): 3 | L (mm): 150
UB54208010100R (mm): 4 | D (mm): 8 | Shank d (mm): 12 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 1 | L (mm): 150
UB5420801070R (mm): 4 | D (mm): 8 | Shank d (mm): 10 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 130
UB54208015100R (mm): 4 | D (mm): 8 | Shank d (mm): 14 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 1.5 | L (mm): 150
UB5420801570R (mm): 4 | D (mm): 8 | Shank d (mm): 12 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 1.5 | L (mm): 130
UB54208020100R (mm): 4 | D (mm): 8 | Shank d (mm): 14 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 2 | L (mm): 150
UB5420802070R (mm): 4 | D (mm): 8 | Shank d (mm): 12 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 2 | L (mm): 130
UB54208030100R (mm): 4 | D (mm): 8 | Shank d (mm): 18 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 100 | Angle θ (deg): 3 | L (mm): 150
UB5420803070R (mm): 4 | D (mm): 8 | Shank d (mm): 14 | l1 (mm): 14 | l2 (mm): 18 | l3 (mm): 70 | Angle θ (deg): 3 | L (mm): 130
UB54210010100R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 1 | L (mm): 200
UB5421001070R (mm): 5 | D (mm): 10 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 1 | L (mm): 130
UB5421001080R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 1 | L (mm): 150
UB54210015100R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 1.5 | L (mm): 200
UB5421001570R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 1.5 | L (mm): 130
UB5421001580R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 1.5 | L (mm): 150
UB54210020100R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 2 | L (mm): 200
UB5421002070R (mm): 5 | D (mm): 10 | Shank d (mm): 14 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 2 | L (mm): 130
UB5421002080R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 2 | L (mm): 150
UB54210030100R (mm): 5 | D (mm): 10 | Shank d (mm): 20 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 100 | Angle θ (deg): 3 | L (mm): 200
UB5421003070R (mm): 5 | D (mm): 10 | Shank d (mm): 16 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 70 | Angle θ (deg): 3 | L (mm): 130
UB5421003080R (mm): 5 | D (mm): 10 | Shank d (mm): 18 | l1 (mm): 18 | l2 (mm): 22 | l3 (mm): 80 | Angle θ (deg): 3 | L (mm): 150
UB54212010100R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 1 | L (mm): 200
UB5421201060R (mm): 6 | D (mm): 12 | Shank d (mm): 14 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 1 | L (mm): 130
UB5421201080R (mm): 6 | D (mm): 12 | Shank d (mm): 14 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 1 | L (mm): 150
UB5421201090R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 1 | L (mm): 180
UB54212015100R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 1.5 | L (mm): 200
UB5421201560R (mm): 6 | D (mm): 12 | Shank d (mm): 14 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 1.5 | L (mm): 130
UB5421201580R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 1.5 | L (mm): 150
UB5421201590R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 1.5 | L (mm): 180
UB54212020100R (mm): 6 | D (mm): 12 | Shank d (mm): 18 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 2 | L (mm): 200
UB5421202060R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 2 | L (mm): 130
UB5421202080R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 2 | L (mm): 150
UB5421202090R (mm): 6 | D (mm): 12 | Shank d (mm): 18 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 2 | L (mm): 180
UB54212030100R (mm): 6 | D (mm): 12 | Shank d (mm): 20 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 100 | Angle θ (deg): 3 | L (mm): 200
UB5421203060R (mm): 6 | D (mm): 12 | Shank d (mm): 16 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 60 | Angle θ (deg): 3 | L (mm): 130
UB5421203080R (mm): 6 | D (mm): 12 | Shank d (mm): 18 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 80 | Angle θ (deg): 3 | L (mm): 150
UB5421203090R (mm): 6 | D (mm): 12 | Shank d (mm): 20 | l1 (mm): 22 | l2 (mm): 25 | l3 (mm): 90 | Angle θ (deg): 3 | L (mm): 180

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
