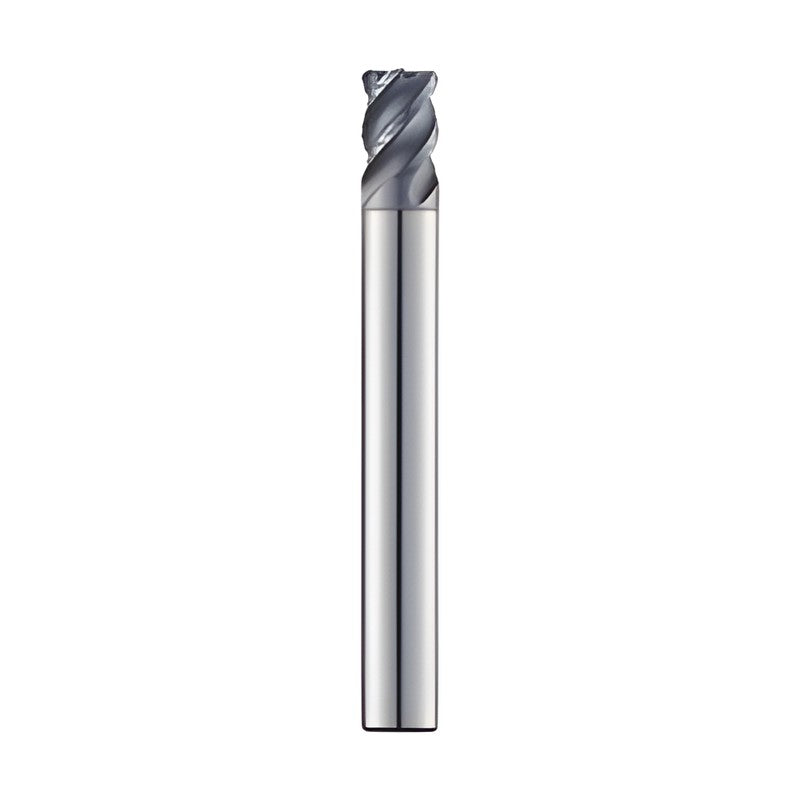

Korloy 3~5 Flutes 45 Degree Helix Fine Pitch Roughing End Mill UF51H

Korloy 3~5 Flutes 45 Degree Helix Fine Pitch Roughing End Mill UF51H

3~5 flutes 45 degree helix fine pitch roughing end mill from the U-Star solid carbide end mill line.

Key features

  • Solid carbide
  • 45° helix angle
  • AlCrN coating

Specifications

Helix angle 45°
Coating AlCrN
Shank tolerance h5
UF513030H Chamfer C (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50 | Flutes: 3
UF513040H Chamfer C (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 3
UF514050H Chamfer C (mm): 0.3 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50 | Flutes: 4
UF514060H Chamfer C (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 4
UF51406015H Chamfer C (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60 | Flutes: 4
UF514070H Chamfer C (mm): 0.4 | D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 70 | Flutes: 4
UF514080H Chamfer C (mm): 0.4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 12 | L (mm): 60 | Flutes: 4
UF51408020H Chamfer C (mm): 0.4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70 | Flutes: 4
UF514090H Chamfer C (mm): 0.4 | D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75 | Flutes: 4
UF514100H Chamfer C (mm): 0.4 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 15 | L (mm): 65 | Flutes: 4
UF51410025H Chamfer C (mm): 0.4 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75 | Flutes: 4
UF514110H Chamfer C (mm): 0.5 | D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 27 | L (mm): 80 | Flutes: 4
UF514120H Chamfer C (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 20 | L (mm): 70 | Flutes: 4
UF51412030H Chamfer C (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80 | Flutes: 4
UF515130H Chamfer C (mm): 0.5 | D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF515140S16H Chamfer C (mm): 0.5 | D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF515140H Chamfer C (mm): 0.5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF515160H Chamfer C (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 25 | L (mm): 80 | Flutes: 5
UF51516040H Chamfer C (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF515180S20H Chamfer C (mm): 0.5 | D (mm): 18 | Shank d (mm): 20 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF515180H Chamfer C (mm): 0.5 | D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF515200H Chamfer C (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 25 | L (mm): 80 | Flutes: 5
UF51520045H Chamfer C (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100 | Flutes: 5
UF515250H Chamfer C (mm): 0.5 | D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 45 | L (mm): 100 | Flutes: 5
