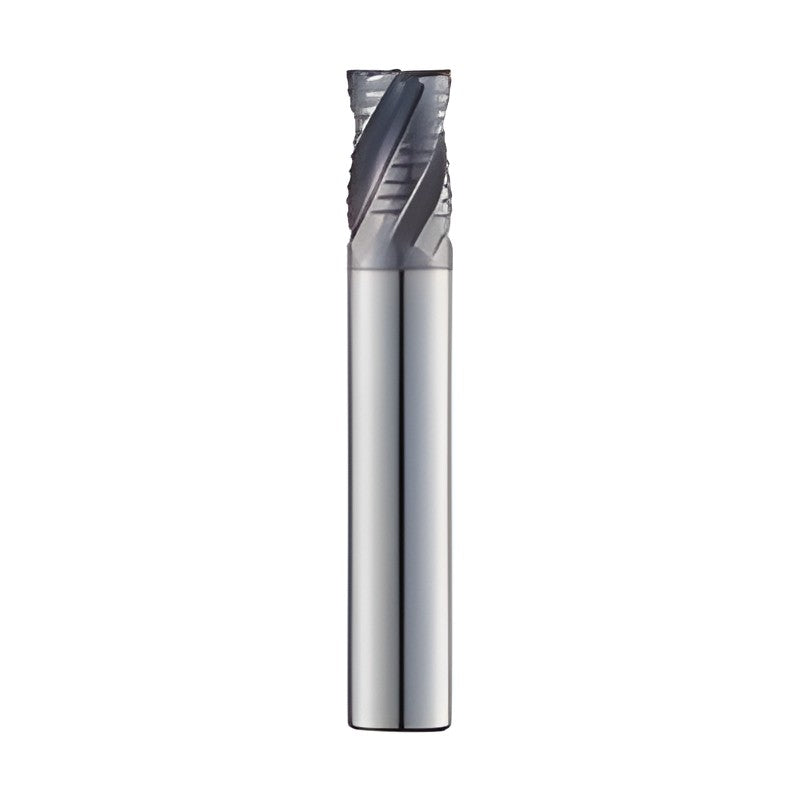

Korloy 3~5 Flutes Chamfer Pitch Roughing End Mill UF50

Korloy 3~5 Flutes Chamfer Pitch Roughing End Mill UF50

3~5 flutes chamfer pitch roughing end mill from the U-Star solid carbide end mill line.

Key features

  • Solid carbide
  • 31° helix angle
  • AlCrN coating

Specifications

Helix angle 31°
Coating AlCrN
Shank tolerance h5
UF503030 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50 | Flutes: 3
UF503040 R (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 3
UF504050 R (mm): 0.2 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50 | Flutes: 4
UF504060 R (mm): 0.2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 4
UF50406015 R (mm): 0.2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60 | Flutes: 4
UF504070 R (mm): 0.2 | D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 70 | Flutes: 4
UF504080 R (mm): 0.2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 12 | L (mm): 60 | Flutes: 4
UF50408020 R (mm): 0.2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70 | Flutes: 4
UF504090 R (mm): 0.3 | D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75 | Flutes: 4
UF504100 R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 15 | L (mm): 65 | Flutes: 4
UF50410025 R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75 | Flutes: 4
UF504110 R (mm): 0.3 | D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 27 | L (mm): 80 | Flutes: 4
UF504120 R (mm): 0.3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 20 | L (mm): 70 | Flutes: 4
UF50412030 R (mm): 0.3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80 | Flutes: 4
UF505130 R (mm): 0.5 | D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505140S16 R (mm): 0.5 | D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505140 R (mm): 0.5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505150 R (mm): 0.5 | D (mm): 15 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505160 R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 25 | L (mm): 80 | Flutes: 5
UF50516040 R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF505180S20 R (mm): 1 | D (mm): 18 | Shank d (mm): 20 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF505180 R (mm): 1 | D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF505200 R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 25 | L (mm): 80 | Flutes: 5
UF50520045 R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100 | Flutes: 5
UF505250 R (mm): 1 | D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 45 | L (mm): 100 | Flutes: 5
End MillsKorloy
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 3~5 Flutes Chamfer Pitch Roughing End Mill UF50

Brand Korloy·End Mills

Available part numbers (25)

UF503030, UF503040, UF504050, UF504060, UF50406015, UF504070, UF504080, UF50408020, UF504090, UF504100 + 15 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UF503030R (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50 | Flutes: 3
UF503040R (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 3
UF504050R (mm): 0.2 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50 | Flutes: 4
UF504060R (mm): 0.2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 4
UF50406015R (mm): 0.2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60 | Flutes: 4
UF504070R (mm): 0.2 | D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 70 | Flutes: 4
UF504080R (mm): 0.2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 12 | L (mm): 60 | Flutes: 4
UF50408020R (mm): 0.2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70 | Flutes: 4
UF504090R (mm): 0.3 | D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75 | Flutes: 4
UF504100R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 15 | L (mm): 65 | Flutes: 4
UF50410025R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75 | Flutes: 4
UF504110R (mm): 0.3 | D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 27 | L (mm): 80 | Flutes: 4
UF504120R (mm): 0.3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 20 | L (mm): 70 | Flutes: 4
UF50412030R (mm): 0.3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80 | Flutes: 4
UF505130R (mm): 0.5 | D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505140S16R (mm): 0.5 | D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505140R (mm): 0.5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505150R (mm): 0.5 | D (mm): 15 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 5
UF505160R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 25 | L (mm): 80 | Flutes: 5
UF50516040R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF505180S20R (mm): 1 | D (mm): 18 | Shank d (mm): 20 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF505180R (mm): 1 | D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 40 | L (mm): 100 | Flutes: 5
UF505200R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 25 | L (mm): 80 | Flutes: 5
UF50520045R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100 | Flutes: 5
UF505250R (mm): 1 | D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 45 | L (mm): 100 | Flutes: 5
