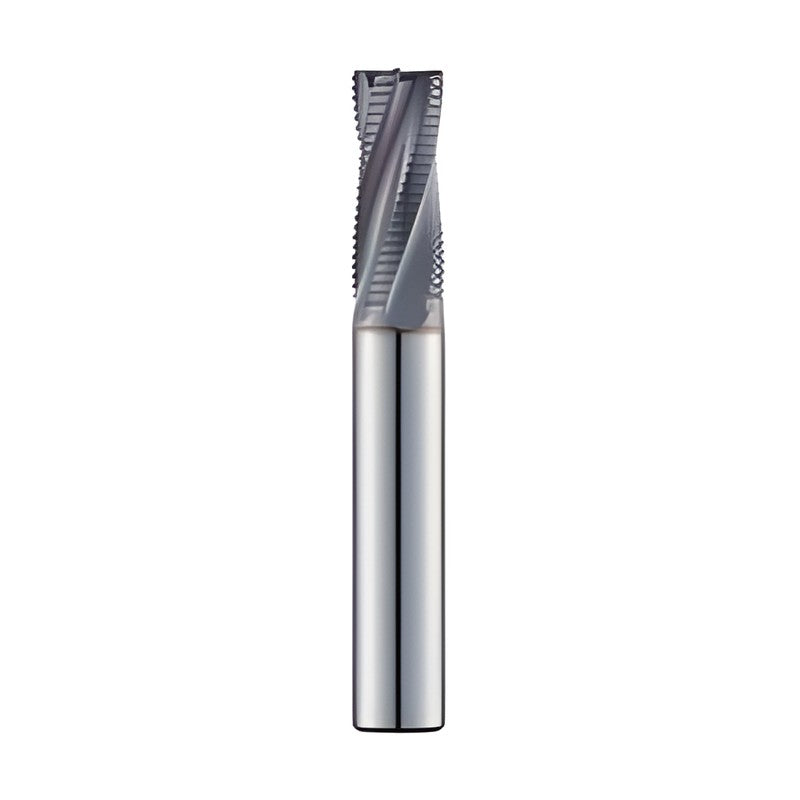

Korloy 3~5 Flutes Fine Pitch Roughing End Mill UF51

Korloy 3~5 Flutes Fine Pitch Roughing End Mill UF51

3~5 flutes fine pitch roughing end mill from the U-Star solid carbide end mill line.

Key features

  • Solid carbide
  • 20° helix angle
  • AlCrN coating

Specifications

Helix angle 20°
Coating AlCrN
Shank tolerance h5
UF513030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50 | Flutes: 3
UF513040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 3
UF513050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50 | Flutes: 3
UF513060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60 | Flutes: 3
UF51306020 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60 | Flutes: 3
UF513070 D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 70 | Flutes: 3
UF513080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70 | Flutes: 3
UF51308025 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 25 | L (mm): 70 | Flutes: 3
UF514090 D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75 | Flutes: 4
UF514100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75 | Flutes: 4
UF51410030 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 75 | Flutes: 4
UF514110 D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 27 | L (mm): 80 | Flutes: 4
UF514120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80 | Flutes: 4
UF51412035 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 80 | Flutes: 4
UF514130 D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 100 | Flutes: 4
UF514140 D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 4
UF514160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100 | Flutes: 4
UF514180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 40 | L (mm): 100 | Flutes: 4
UF514200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100 | Flutes: 4
UF515250 D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 50 | L (mm): 100 | Flutes: 5
End MillsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 3~5 Flutes Fine Pitch Roughing End Mill UF51

Brand Korloy·End Mills

Available part numbers (20)

UF513030, UF513040, UF513050, UF513060, UF51306020, UF513070, UF513080, UF51308025, UF514090, UF514100 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UF513030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50 | Flutes: 3
UF513040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50 | Flutes: 3
UF513050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50 | Flutes: 3
UF513060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60 | Flutes: 3
UF51306020D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60 | Flutes: 3
UF513070D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 18 | L (mm): 70 | Flutes: 3
UF513080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70 | Flutes: 3
UF51308025D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 25 | L (mm): 70 | Flutes: 3
UF514090D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 75 | Flutes: 4
UF514100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75 | Flutes: 4
UF51410030D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 75 | Flutes: 4
UF514110D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 27 | L (mm): 80 | Flutes: 4
UF514120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80 | Flutes: 4
UF51412035D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 80 | Flutes: 4
UF514130D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 35 | L (mm): 100 | Flutes: 4
UF514140D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 100 | Flutes: 4
UF514160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 100 | Flutes: 4
UF514180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 40 | L (mm): 100 | Flutes: 4
UF514200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100 | Flutes: 4
UF515250D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 50 | L (mm): 100 | Flutes: 5
