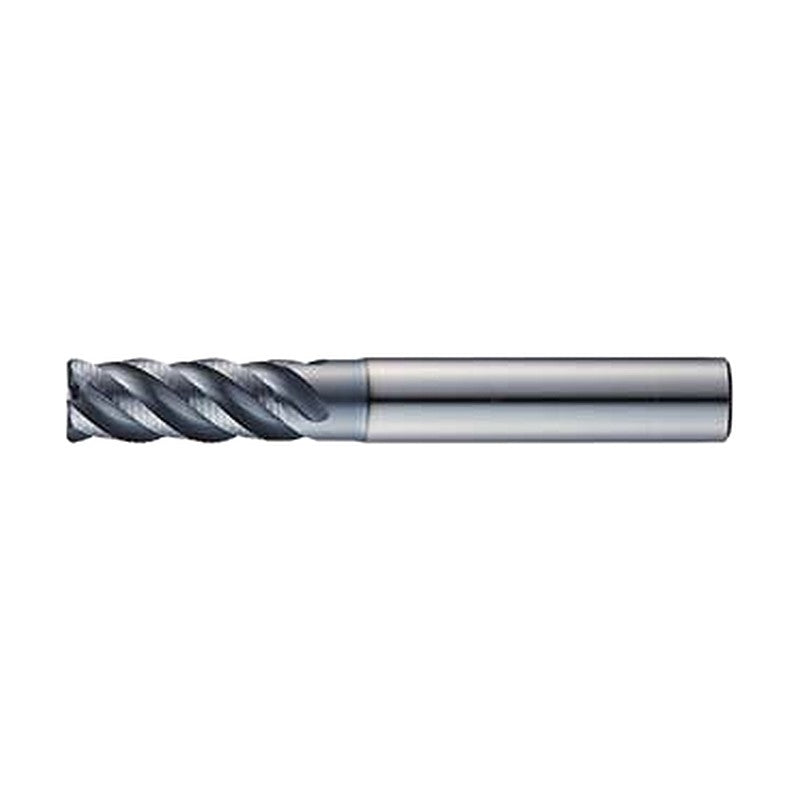

Korloy 3~5 Flutes Roughing End Mill SF51H

Korloy 3~5 Flutes Roughing End Mill SF51H

3~5 flutes roughing end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 45° helix angle
  • AlCrN coating

Specifications

Helix angle 45°
Coating AlCrN
Shank tolerance h5
SF51303002H Chamfer C (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 8 | L (mm): 50 | Flutes: 3
SF51304002H Chamfer C (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | l1 (mm): 10 | L (mm): 50 | Flutes: 3
SF51405002H Chamfer C (mm): 0.3 | D (mm): 5 | Shank d (mm): 6 | l1 (mm): 13 | L (mm): 50 | Flutes: 4
SF51406002H Chamfer C (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 13 | L (mm): 60 | Flutes: 4
SF51406002NH Chamfer C (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 10 | l2 (mm): 20 | L (mm): 60 | Flutes: 4
SF51407002H Chamfer C (mm): 0.4 | D (mm): 7 | Shank d (mm): 8 | l1 (mm): 18 | L (mm): 70 | Flutes: 4
SF51408002H Chamfer C (mm): 0.4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 19 | L (mm): 70 | Flutes: 4
SF51408002NH Chamfer C (mm): 0.4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 25 | L (mm): 70 | Flutes: 4
SF51409003H Chamfer C (mm): 0.4 | D (mm): 9 | Shank d (mm): 10 | l1 (mm): 20 | L (mm): 70 | Flutes: 4
SF51410003H Chamfer C (mm): 0.4 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 22 | L (mm): 75 | Flutes: 4
SF51410003NH Chamfer C (mm): 0.4 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 30 | L (mm): 75 | Flutes: 4
SF51411003H Chamfer C (mm): 0.5 | D (mm): 11 | Shank d (mm): 12 | l1 (mm): 25 | L (mm): 80 | Flutes: 4
SF51412003H Chamfer C (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 26 | L (mm): 80 | Flutes: 4
SF51412003NH Chamfer C (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 20 | l2 (mm): 35 | L (mm): 80 | Flutes: 4
SF51506002H Chamfer C (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 13 | L (mm): 60 | Flutes: 5
SF51508002H Chamfer C (mm): 0.4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 19 | L (mm): 65 | Flutes: 5
SF51510003H Chamfer C (mm): 0.4 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 22 | L (mm): 70 | Flutes: 5
SF51512003H Chamfer C (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 26 | L (mm): 80 | Flutes: 5
SF51514005H Chamfer C (mm): 0.5 | D (mm): 14 | Shank d (mm): 16 | l1 (mm): 28 | L (mm): 90 | Flutes: 5
SF51516005H Chamfer C (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 32 | L (mm): 100 | Flutes: 5
SF5151600542H Chamfer C (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | l1 (mm): 42 | L (mm): 100 | Flutes: 5
SF51520005H Chamfer C (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | l1 (mm): 38 | L (mm): 100 | Flutes: 5
SF5152000545H Chamfer C (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | l1 (mm): 45 | L (mm): 100 | Flutes: 5
