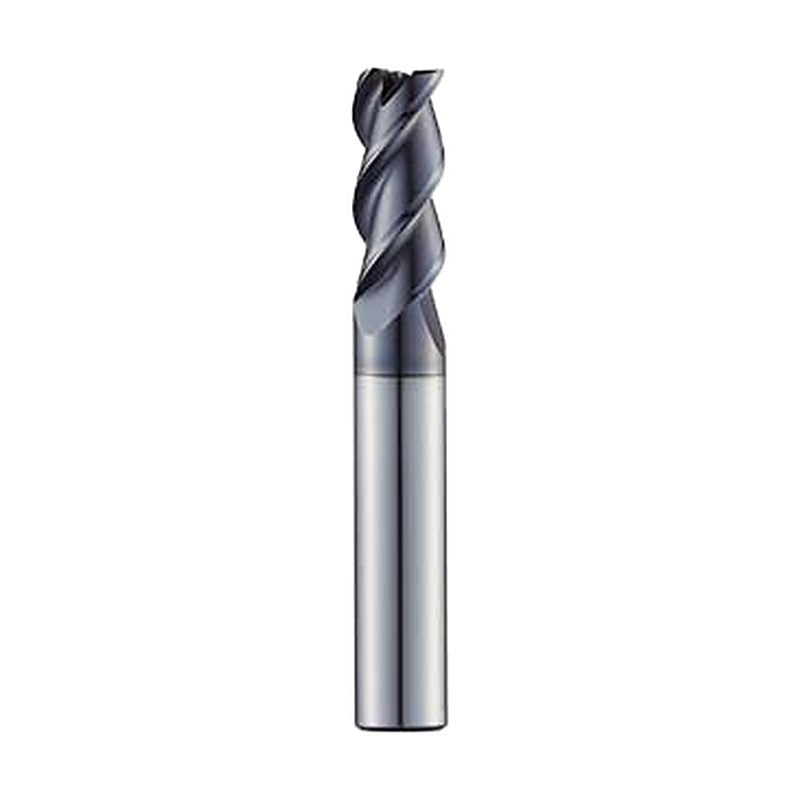

Korloy 3 Flutes Flat End Mill SE503

Korloy 3 Flutes Flat End Mill SE503

3 flutes flat end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 45° helix angle
  • AlCrN coating

Specifications

Helix angle 45°
Coating AlCrN
Shank tolerance h5
SE503010 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SE503012 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SE503015 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SE503020 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SE503025 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SE503030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SE50303010 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
SE503040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE50304012 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 60
SE503050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 55
SE503060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE50306020 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 65
SE503080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE50308030 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 80
SE503100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE50310035 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 85
SE503120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE50312040 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 90
SE503140 D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SE503160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE503180 D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SE503200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
End MillsKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 3 Flutes Flat End Mill SE503

Brand Korloy·End Mills

Available part numbers (22)

SE503010, SE503012, SE503015, SE503020, SE503025, SE503030, SE50303010, SE503040, SE50304012, SE503050 + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SE503010D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SE503012D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SE503015D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SE503020D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SE503025D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SE503030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SE50303010D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
SE503040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE50304012D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 60
SE503050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 55
SE503060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE50306020D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 65
SE503080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE50308030D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 80
SE503100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE50310035D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 85
SE503120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE50312040D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 90
SE503140D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SE503160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE503180D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SE503200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
